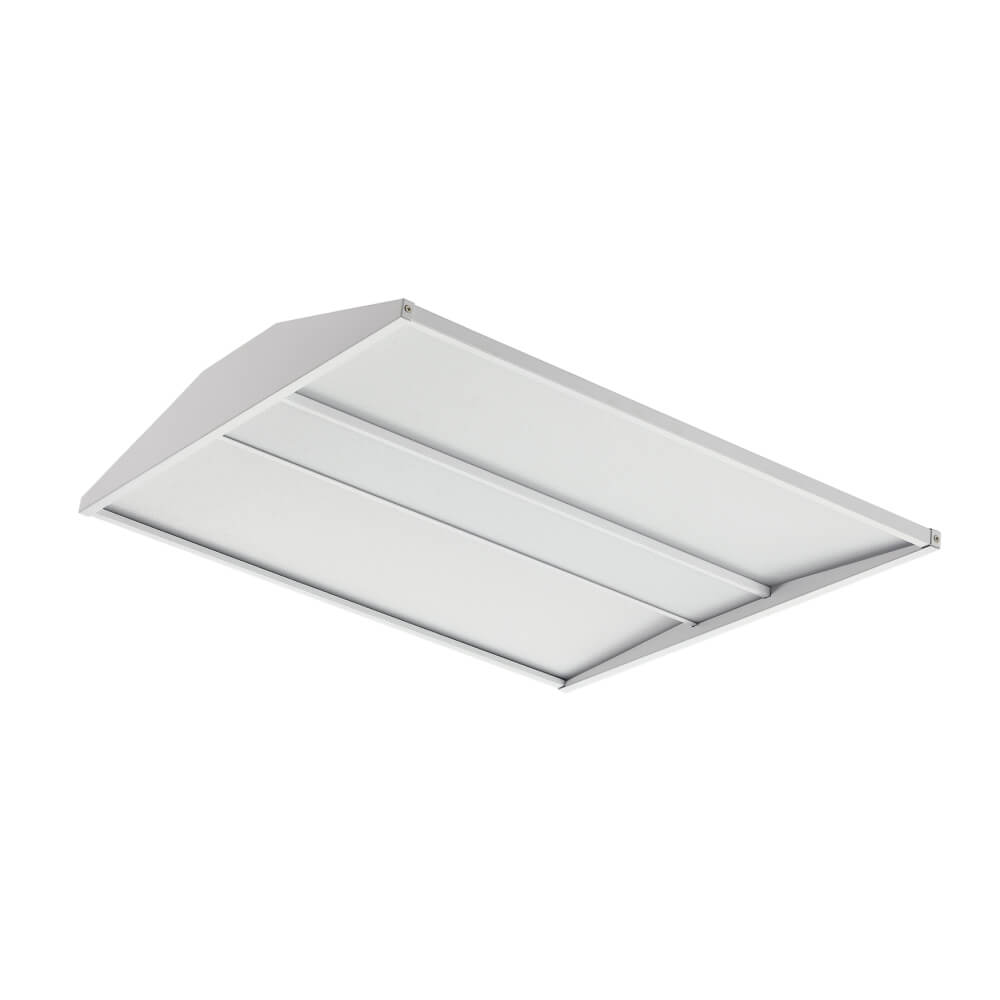

• Halcon Indirect LED Troffer Light HG-L254 for efficient and visually comfortable commercial lighting solutions

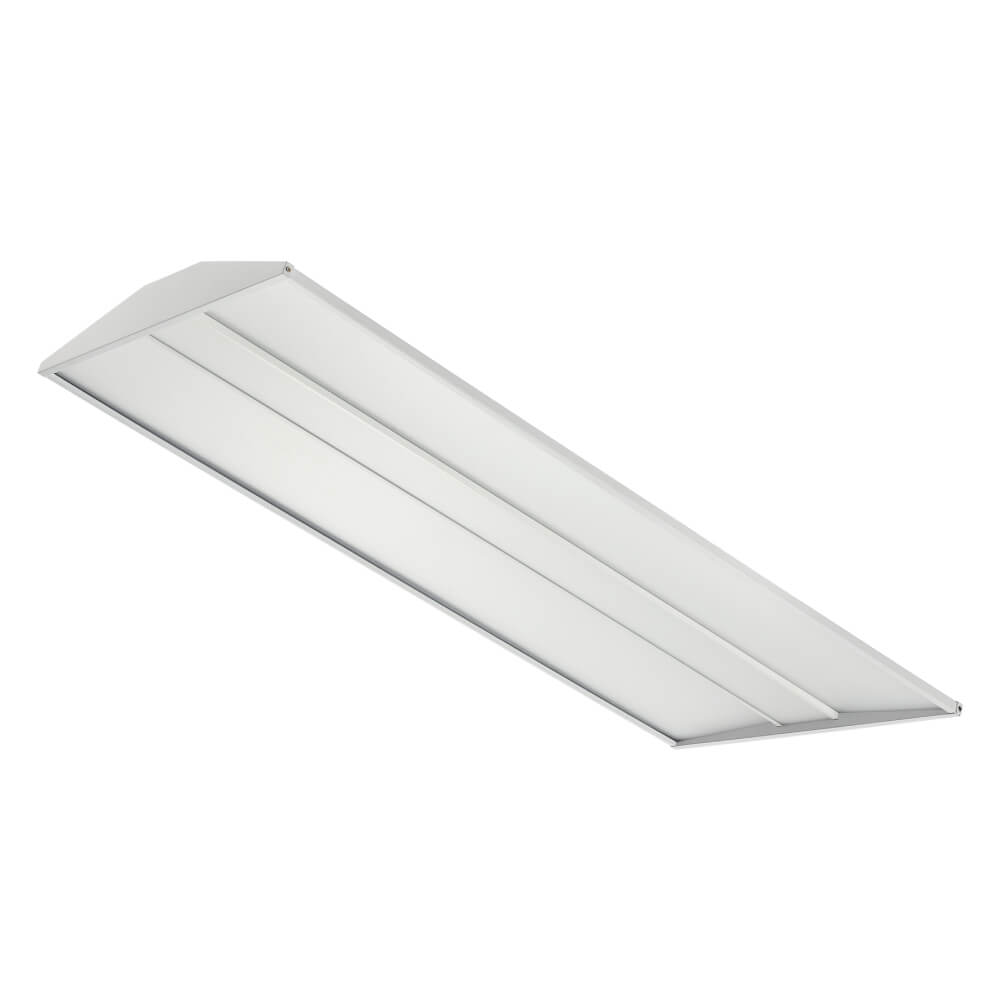

  • Architectural recessed Halcon Indirect LED Troffer Light HG-L254 with high-efficiency illumination for commercial spaces

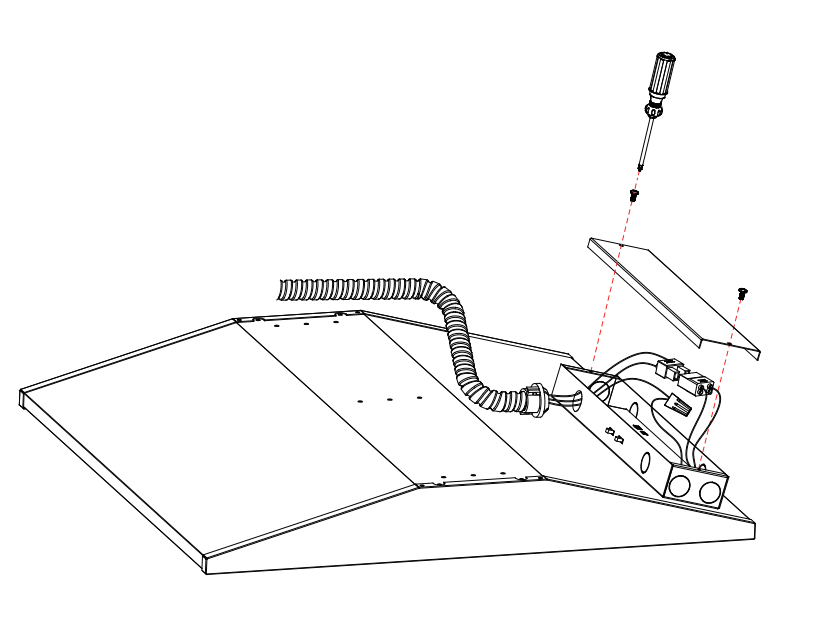

  • LED architectural troffer installation components with tools for setup

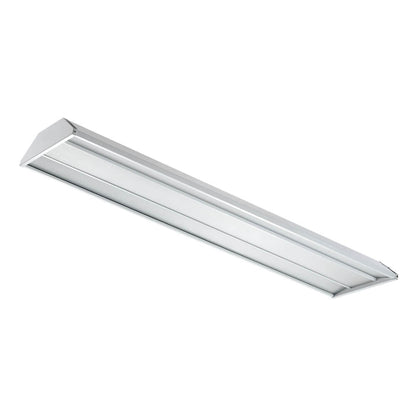

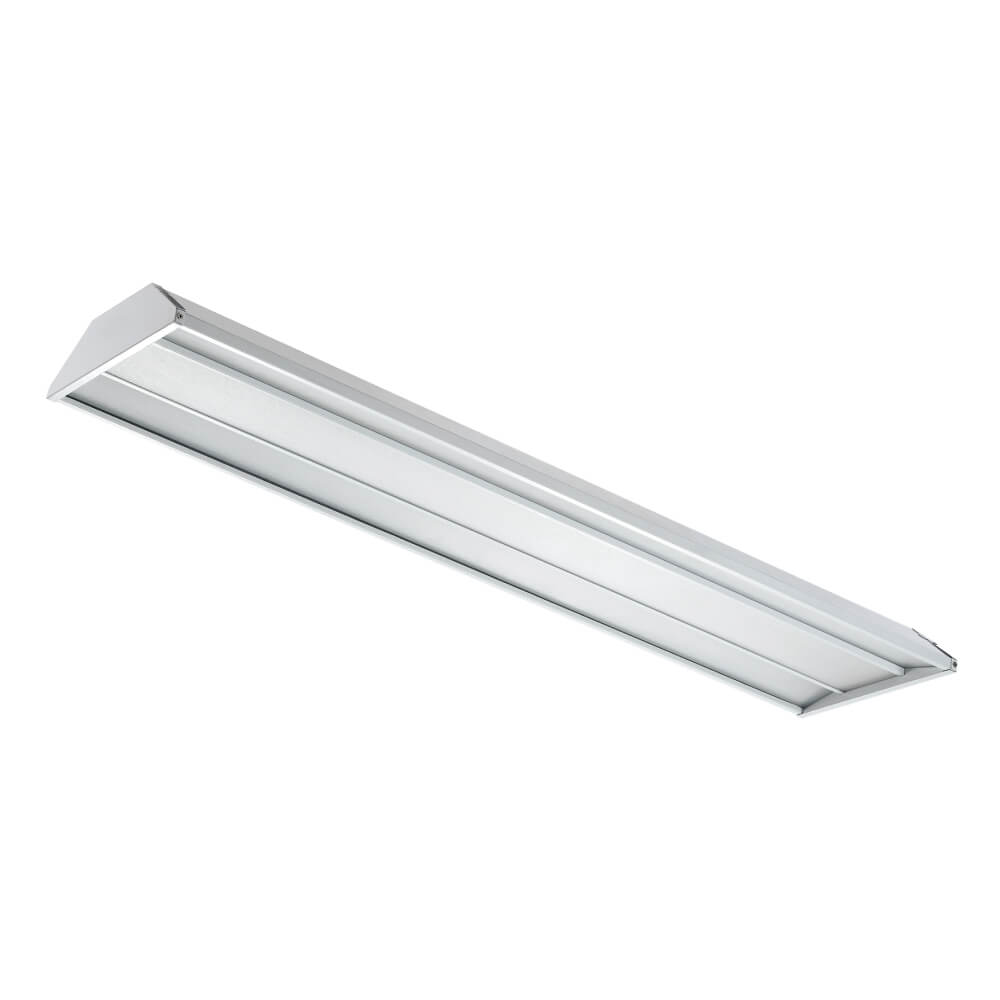

  • Halcon Indirect LED Troffer Light HG-L254 for commercial lighting with high-efficiency reflective feature and energy-saving functions

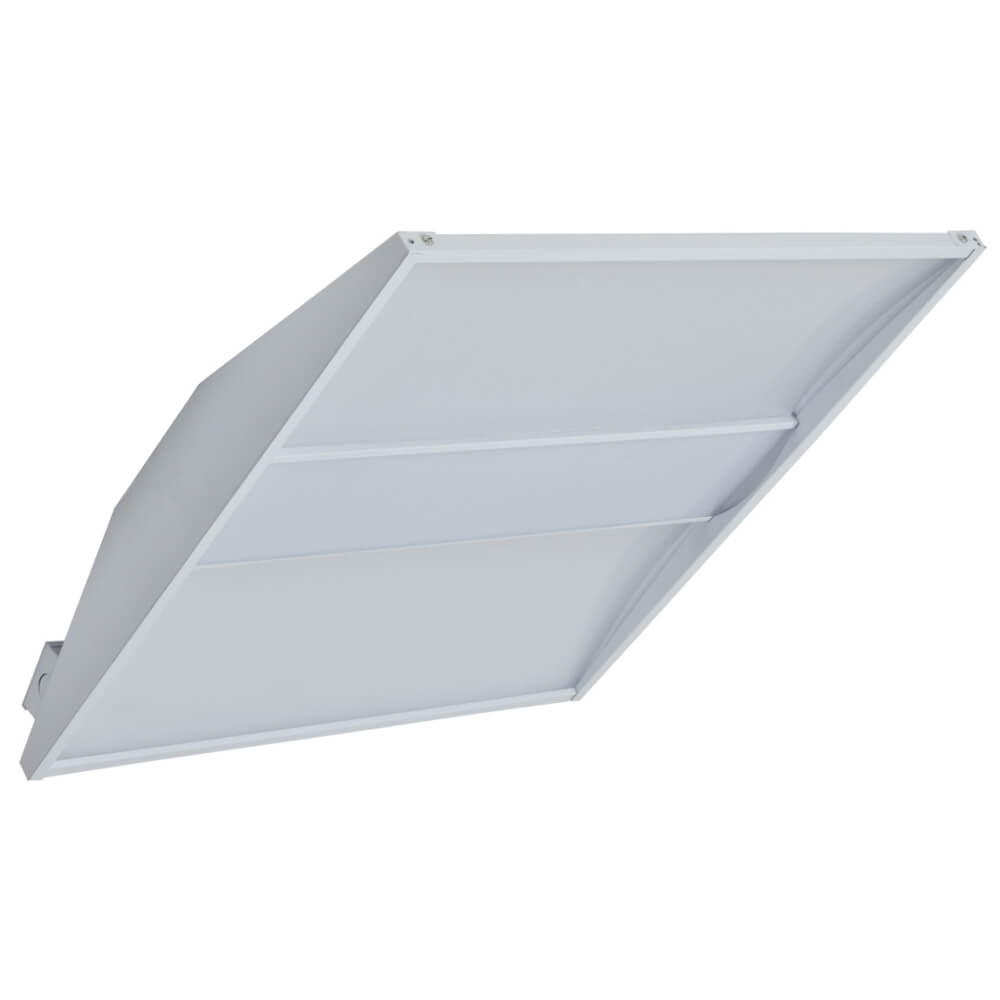

  • Halcon Indirect LED Troffer Light HG-L254 with high-performance reflective material and energy-saving features for commercial lighting

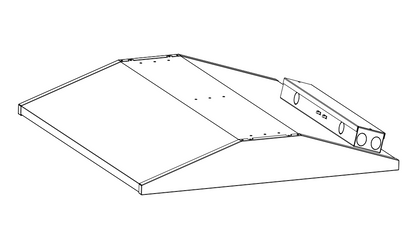

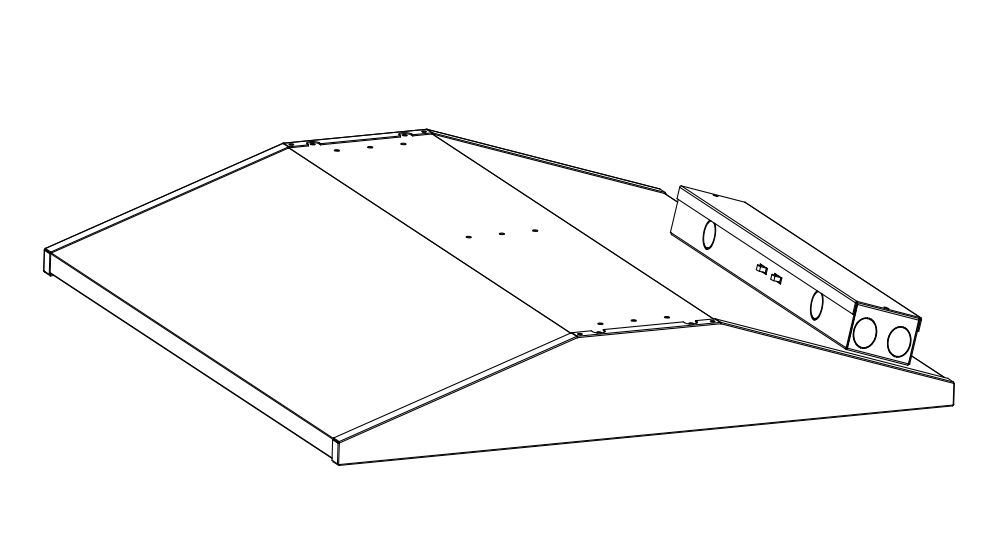

  • LED architectural troffer mounting bracket for installation setup
1 6

Model LED Architectural Troffer Wattage And CCT Selectable 3000K/3500K/4000K/5000K ETL And DLC Listed

Model LED Architectural Troffer Wattage And CCT Selectable 3000K/3500K/4000K/5000K ETL And DLC Listed

Overview
Use Cases
Use Cases
Comparison Chart
Comparison Chart
Video

Use Cases

halconlighting meeting room

Specification


HG-L254-22 HG-L254-14 HG-L254-24
Size 603x603x80mm 1213x303x80mm 1213x603x80mm
Nominal Wattage 27/36W 27/40W 40/50W
InputVoltage AC 120-277V, 120-347V AC 120-277V, 120-347V AC 120-277V, 120-347V
Lumen Delivered 3960 lm 4400 lm 5500 lm
Nominal Efficacy 110 lm/w 110 lm/w 110 lm/w
CCT 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K 3000K/3500K/4000K/5000K
CRI >80 >80 >80
Power Factor >0.9 >0.9 >0.9
Dimming 0-10V 0-10V 0-10V
Operating Temperature -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C ) -4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
Warranty 5 Years 5 Years 5 Years
View full details
