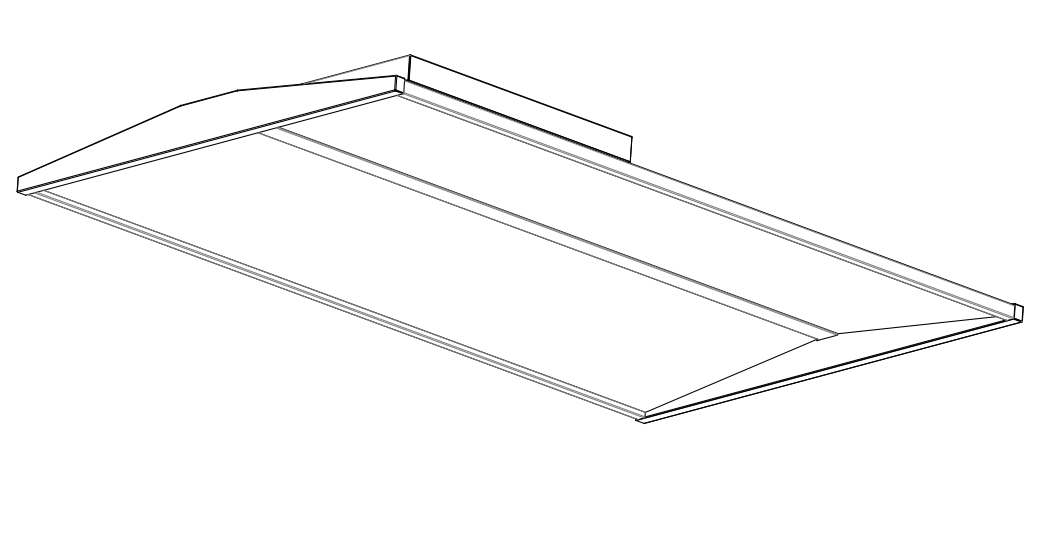

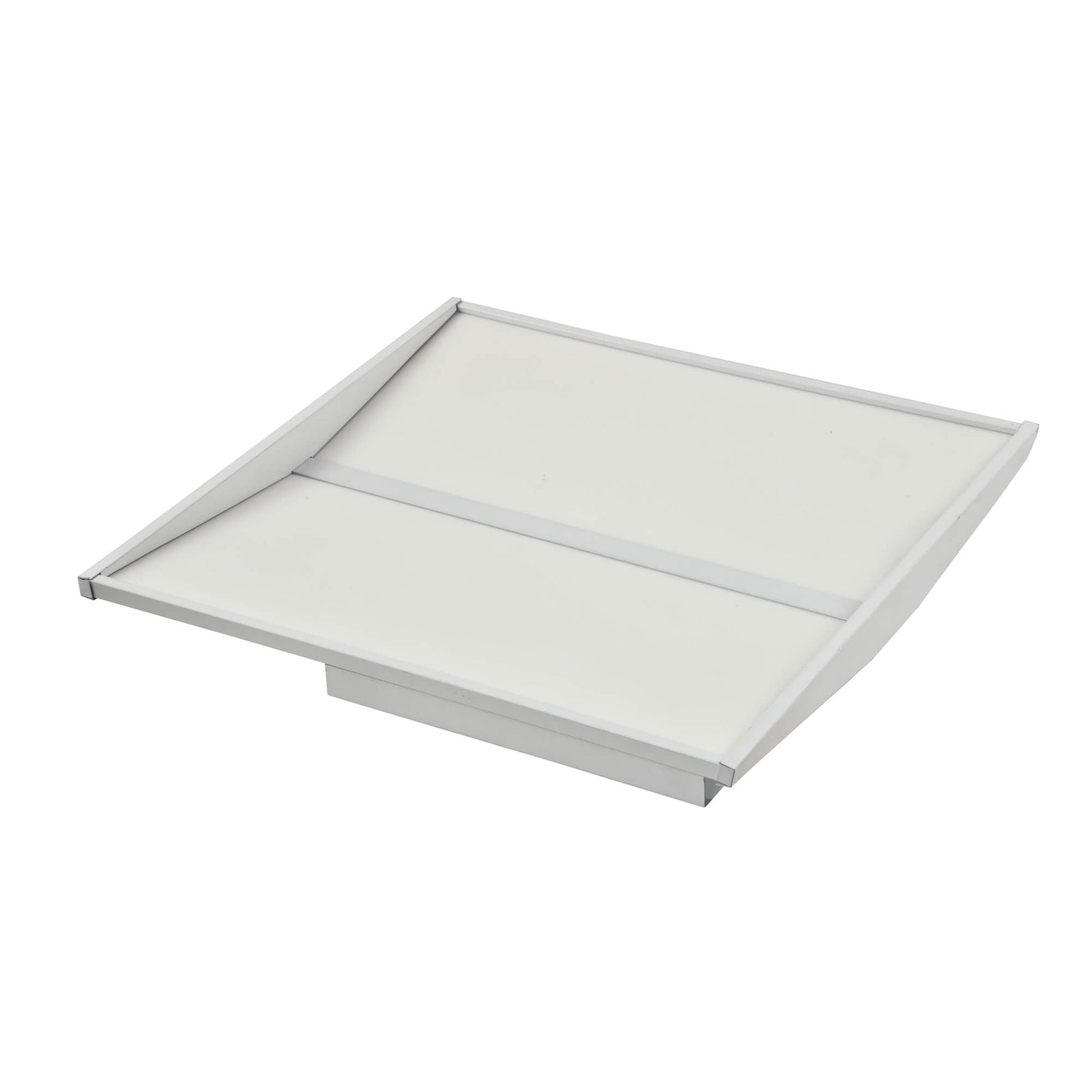

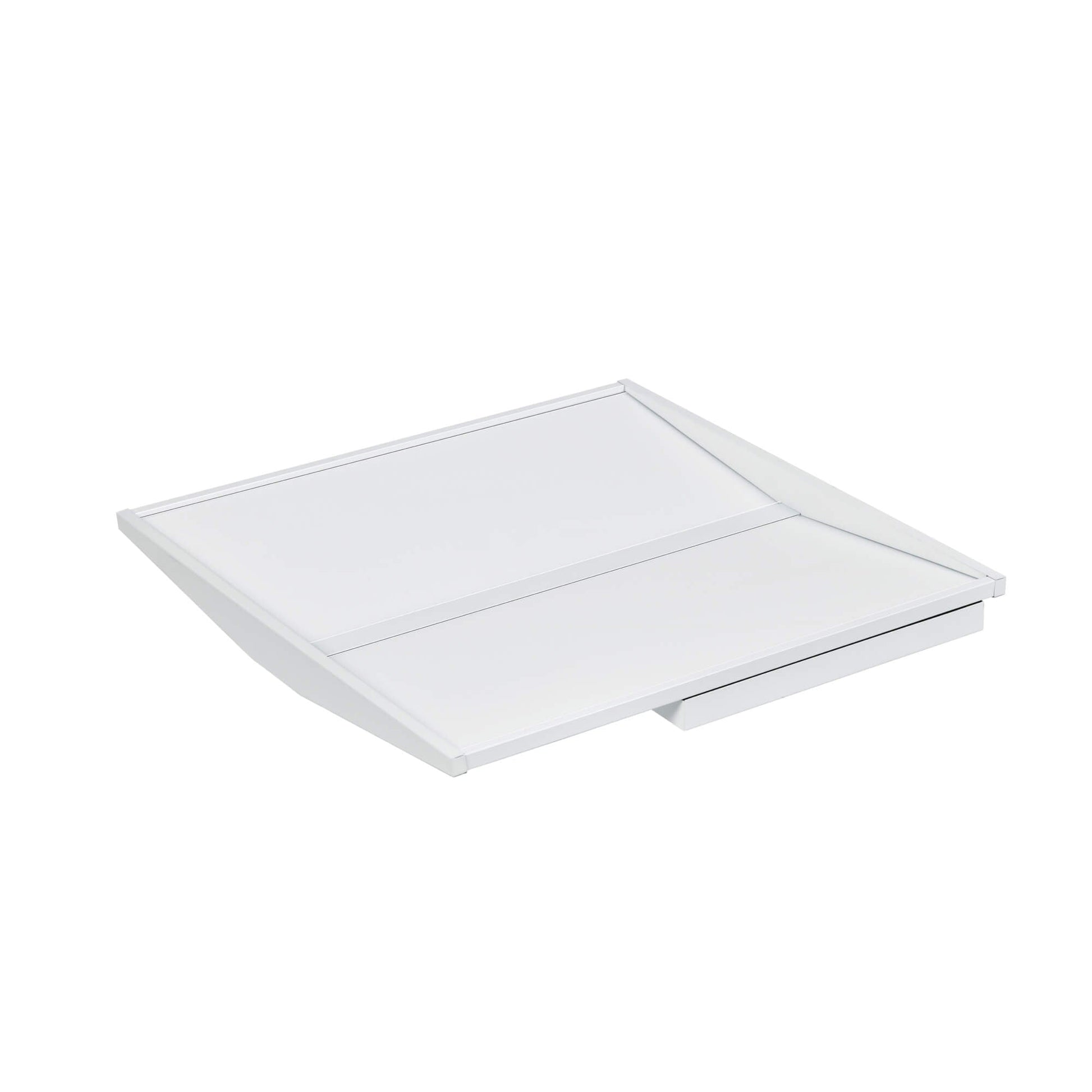

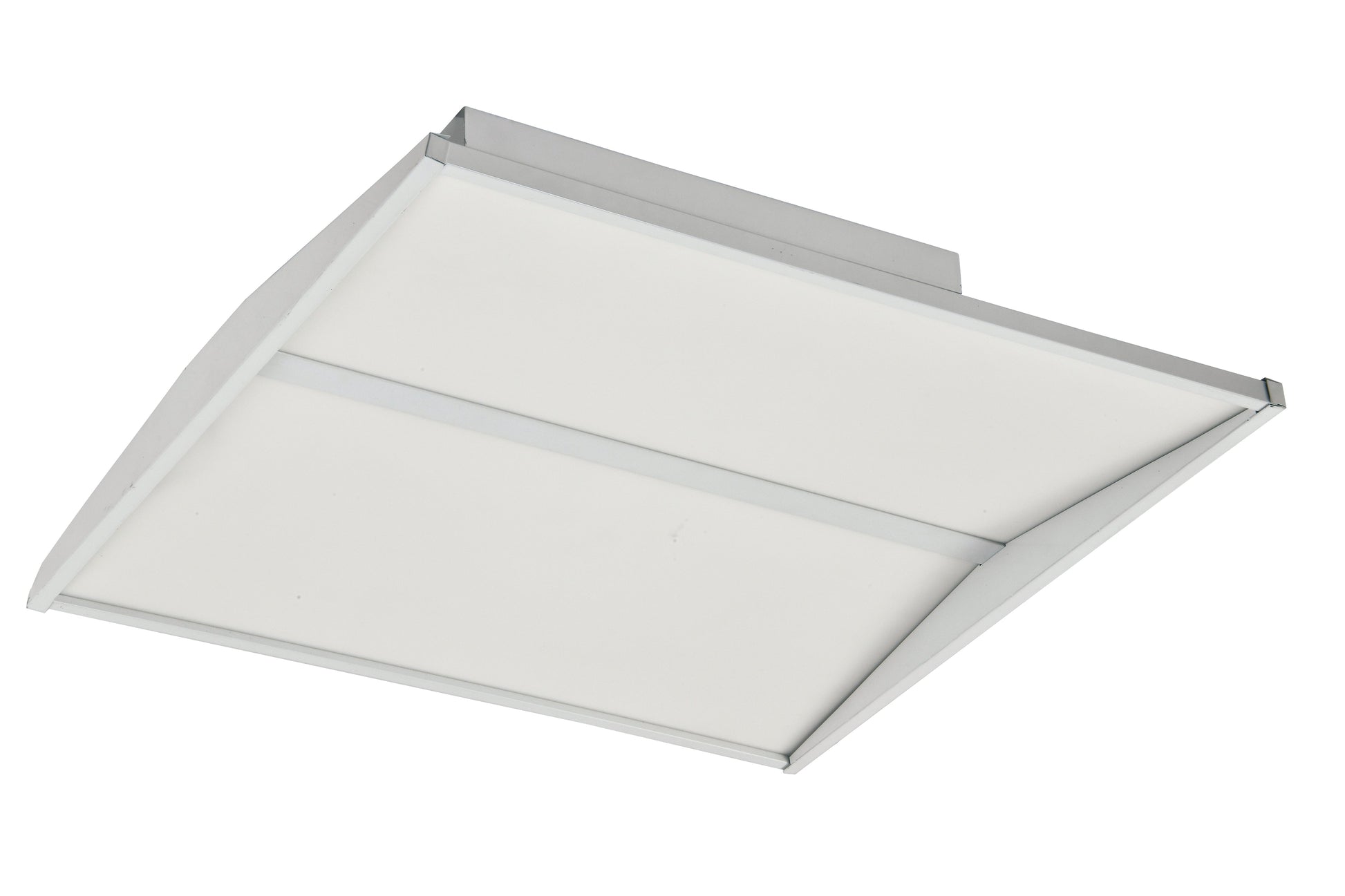

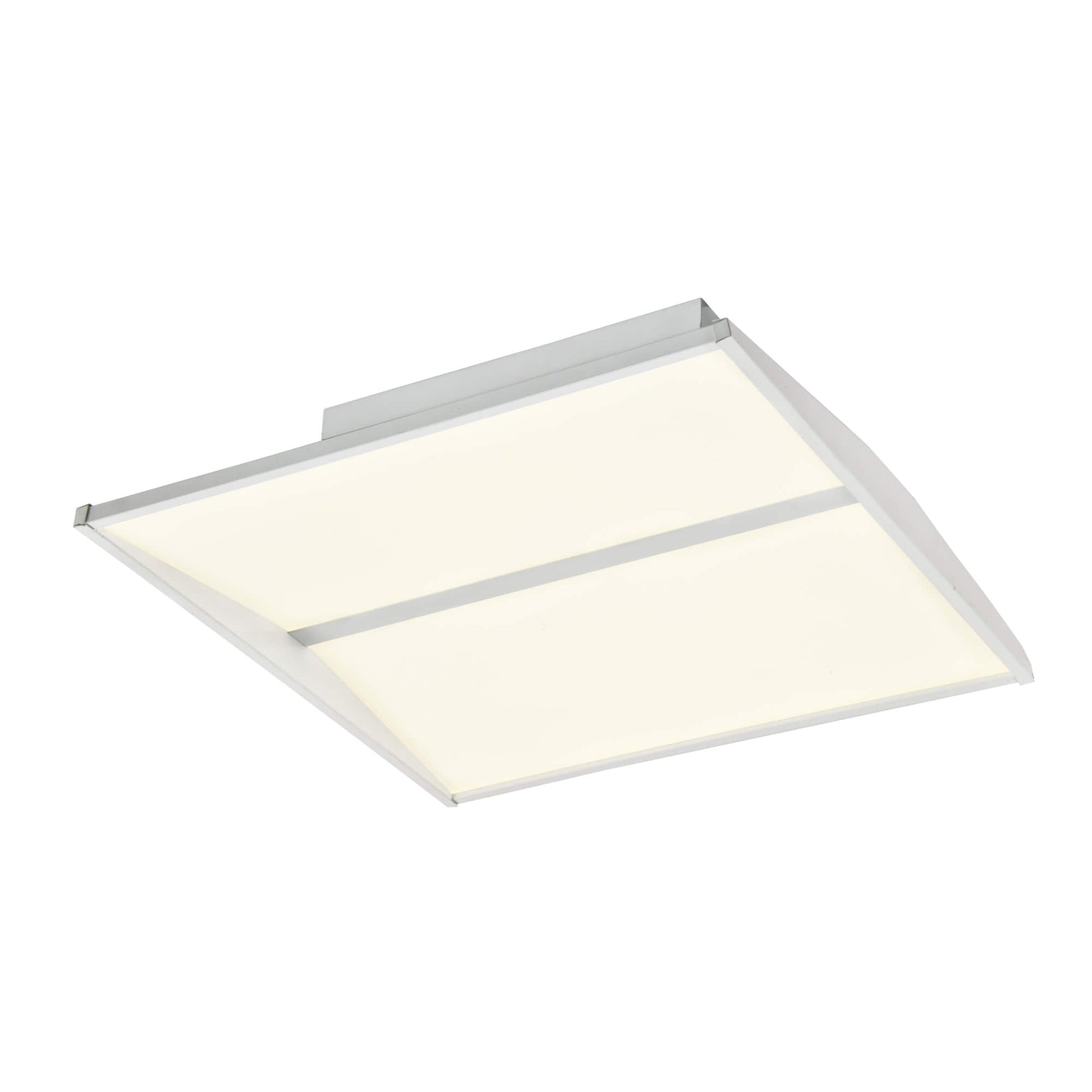

LED Backlit Architectural Model

Name: LED Backlit Architectural Model
Brand: HA
SKU: E2106
Availability: InStock

Specification

• Manufacturer： Halcon Lighting
• Fixture Type：LED Troffer lighting fixture
• Lead Time: Ships in 1-2 weeks
• Qualifications: DLC Standard/DLC Premium, ETL/CETL List
• Voltage: Universal voltage 120-277V
• CCT Adjustable: 3000K/3500K/4000K/5000K
• Dimmable: 0-10V dimming standard
• Size: 2'x2', 2'x4'
• Operating Temperature: -4°F to 122°F (-20°C to 50°C), excluding EM models

Controls Features

Daylight Sensor
Occupancy Sensor
Integral Sensor Receptacle
High-end Trim
Bluetooth

• Model: E2106
• Warranty: 5 years
• Wattage Adjustable: 24 to 40Watts / 30 to 50Watts
• CRI(Color rendering index):>80
• Lumen output: 4600 lm-5750 lm
• Light efficiency: 115 LP/W
• Mounting: Surface mount, Pendant/Rod mount (accessories sold separately)

Accessories

SENSOR control, Emergency kits, suspension kits.

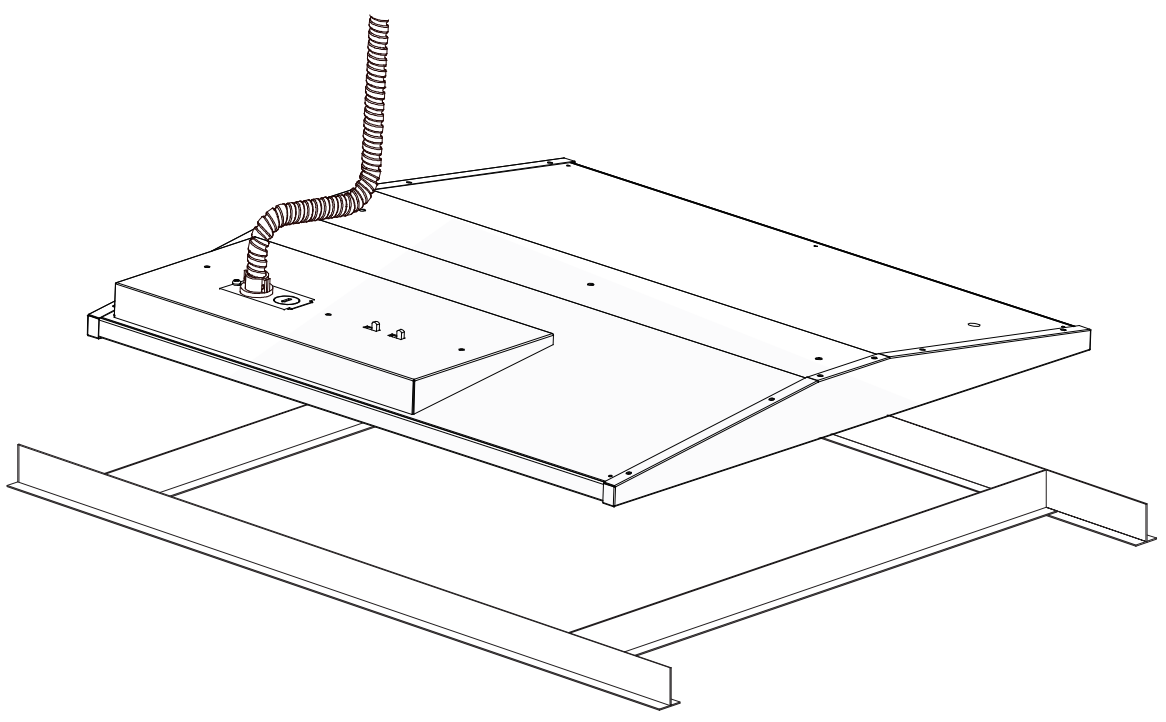

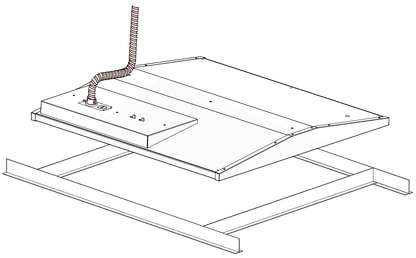

Design and Installation

Faster installation and cleanup

Available Switchable Color and Adjustable Lumen Technology.

Specification

	E2106-22	E2106-24
Size	603x603x50mm	1213x603x50mm
Nominal Wattage	24W/35W/40W	30W/35W/40W/50W
InputVoltage	AC 120-277V, 120-347V	AC 120-277V, 120-347V
Lumen Delivered	4600 lm	5750 lm
Nominal Efficacy	115 lm/w	115 lm/w
CCT	3000K/3500K/4000K/5000K	3000K/3500K/4000K/5000K
CRI	>80	>80
Power Factor	>0.9	>0.9
Dimming	0-10V	0-10V
Operating Temperature	-4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )	-4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
Warranty	5 Years	5 Years
