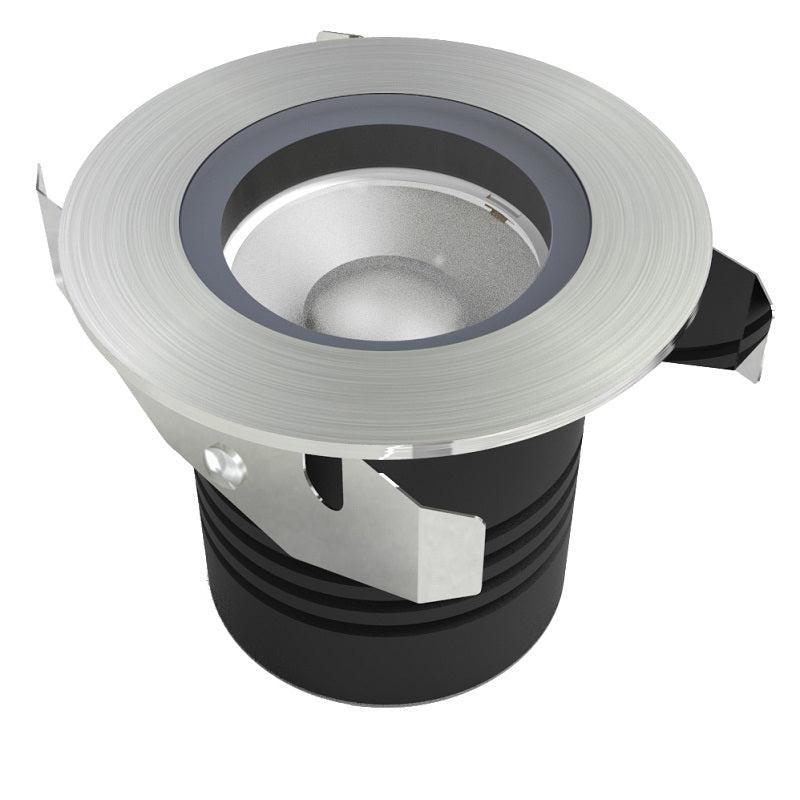

In-ground Light EU1968B
In-ground Light EU1968B
Marine grade 316 stainless steel panel with aluminum lamp body. This fixture complete with integral CREE led package. Tempered glass, construction rated to IP67.
| Material | SUS316+Aluminium |
| Surface | Polishing, wire drawing, passivation |
| PowerMode | External, constant current/voltage |
| Installation | Embedded installation of buried lamp |
| Weight | |
| Control | On/off |
| Approvals | CE’RoHSJP |
| Ambient temp | .-20°C ~+45°C |
| Average life | 50,000Hrs |
| Accessories | TS1968 |
EU1968B
Power(w) |
Input | Luminous Flux (lm) |
Color(k) | Color Index |
PowerMode | Wiring | Cable | Beam (°) | Model No. |
7 |
24VDC | 800 |
C,W,N | 80 |
Constant voltage | Parallel | 1.1M 2×0.75mm2 | 15/24/36/50 | EU1968BD |
7 |
24VDC | 800 |
C,W,N | 80 |
Constant voltage | Parallel | 1.1M 4×0.5mm2 | 15/24/36/50 | EU1968BDMX |
7 |
350mA | 800 | C,W,N | 80 |
Constant current | Series | 1.1M 2×0.75mm2 | 15/24/36/50 | EU1968B |
C-6000K/W-3000K/N-4000K/R-Red /G-Green/B-Blue/A-Amber;
EU1968B 7W 4000K 20°
| H(m) | Eavg(lx) | Emax(lx) | D(cm) |
| 1 | 2898 | 4344 | 42.57 |
| 2 | 724.6 | 10861 | 80.14 |
| 3 | 322 | 428.6 | 127.72 |
| 4 | 181.1 | 271.51 | 170.29 |
| 5 | 115.9 | 173.7 | 212.86 |
