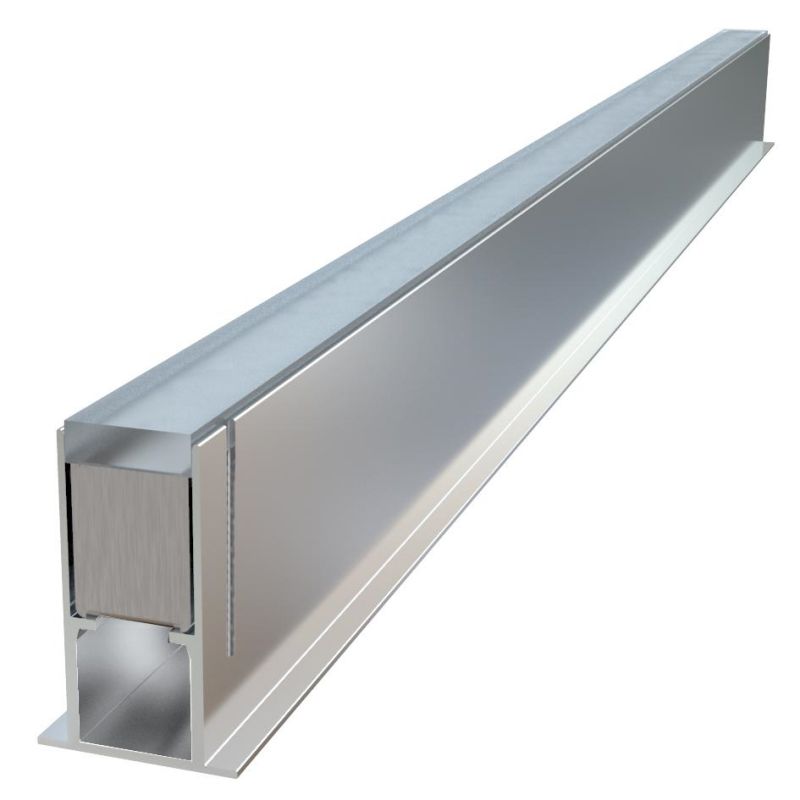

In-Ground Light EU1953
In-Ground Light EU1953
| Material | SUS304/SUS316 Stainless steel |
| Surface | Polishing, wire drawing, passivation |
| PowerMode | External, constant current/voltage |
| Installation | Embedded installation of buried lamp |
| Weight | |
| Control | On/off |
| Approvals | CE’RoHSJP |
| Ambient temp | .-20°C ~+45°C |
| Average life | 50,000Hrs |
| Accessories |
EU1953
| Power (w) | Input | Luminous Flux (lm) |
Color(k) |
Color Index | PowerMode |
Wiring |
Cable | Beam (°) | Model No. |
8 |
24VDC | 400 |
C,W,N,R,G,B,A | 80 |
Constant voltage | Parallel | 0.5M 2×0.75mm2 | 120 | EU1953D-0.5M |
12 |
24VDC | 550 |
C,W,N,R,G,B,A | 80 |
Constant voltage | Parallel | 0.5M 2×0.75mm2 | 120 | EU1953D-1M |
C-6000K/W-3000K/N-4000K/R-Red /G-Green/B-Blue/A-Amber; Drive power supply to be provided separately, page256/257
EU1953 12W 4000K 120°
| H（m） | Eavg（lx） | Emax（lx） | D（cm） |
| 1 | 20.6 | 63.47 | 280.79 |
| 2 | 5.151 | 15.87 | 571.58 |
| 3 | 2.289 | 7.052 | 807.36 |
| 4 | 1.288 | 3.967 | 1143.15 |
| 5 | 0.8242 | 2.539 | 1428.94 |
