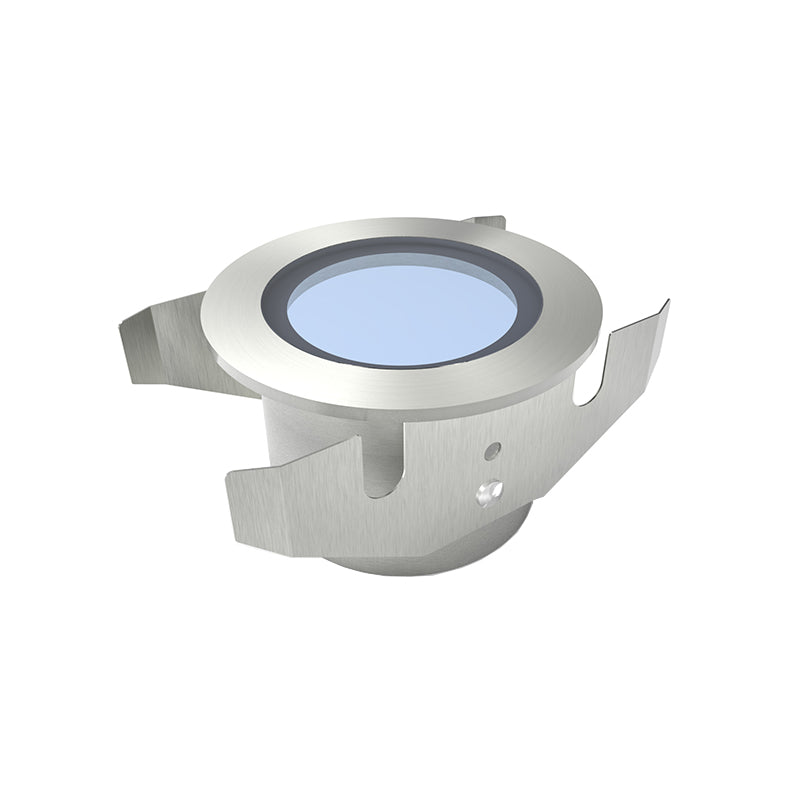

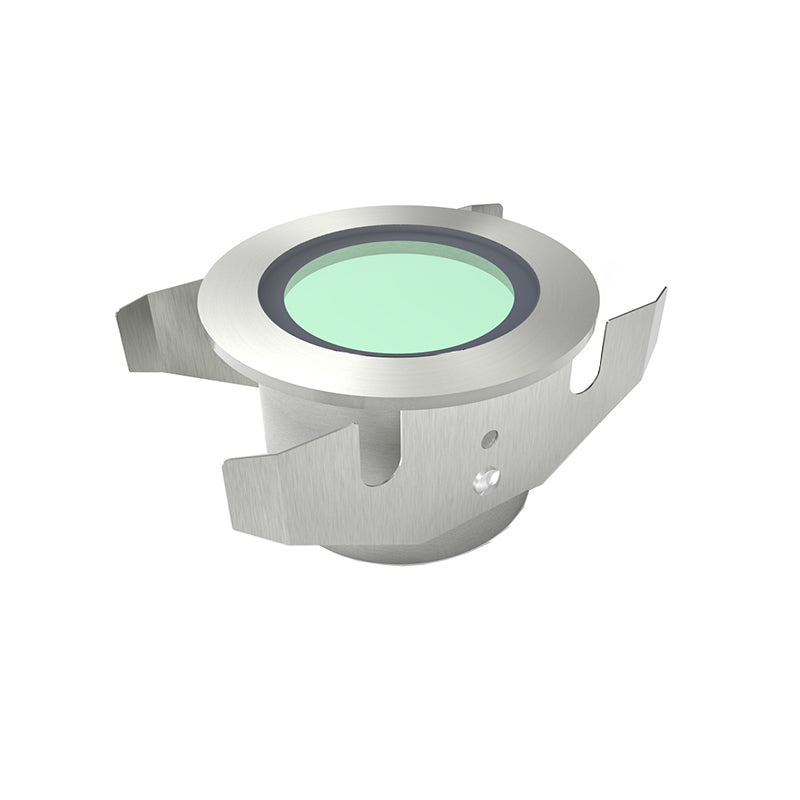

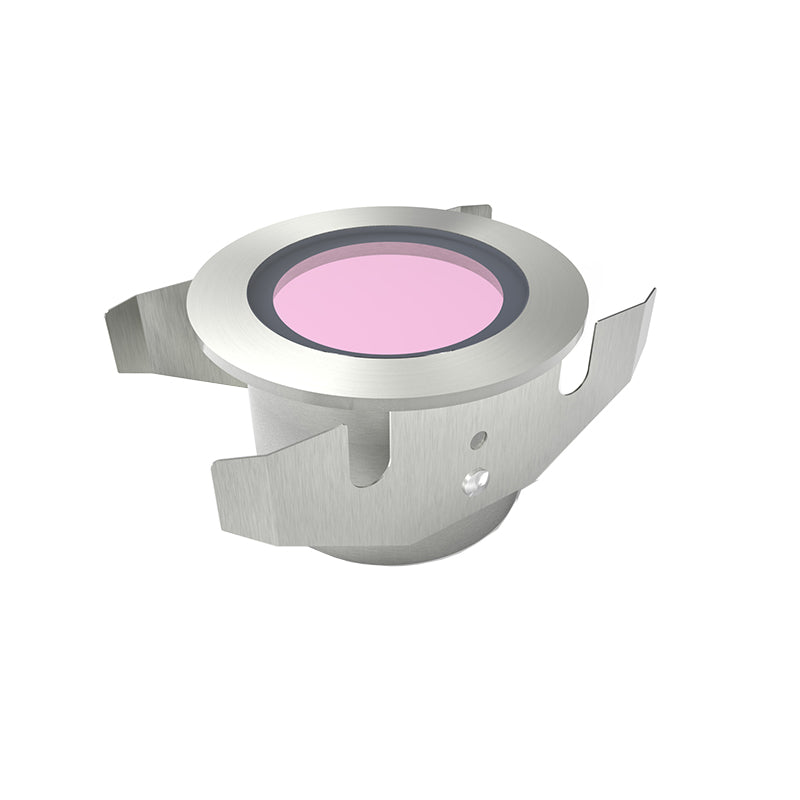

In-Ground GL550RGB
In-Ground GL550RGB
Miniature recessed fixture complete with integral Edison LED package and 120 degree beam option.Marine Grade 316 Stainless Steel construction rated to IP68.Tempered glass.Product footprint of 76mm diameter ensures versatile application. We use imported Edison LED which have a long life and low power consumption. There is no need to pay high electricity bills for lighting and beautification. This lamp has RGB color temperature also it can workable for DMX control. It is easy to control, can realize the color changing function, high brightness, low energy consumption, and soft light.
The ground mounted flood lights are exquisite in appearance, sturdy and durable, and are made of ultra-corrosion-resistant marine grade stainless steel SUS316 by automatic CNC processing. The manufacturing process of this model adopts the combination of advanced technology development and lamp manufacturing with unique LED materials, so in addition to the characteristics of variable colors and different shapes, it also has the efficiency of long light-emitting time and energy saving.
.
| LED Light source | LED |
| Light Color | RGB,CW.WW,NW,Red,Green,Blue,Amber |
| Material | SUS316 |
| Optics | 120° |
| Power | 3W |
| Power supply | N/A |
| Dimention | D76X47 |
| Weight | 680g |
| IP Rating | IP68 |
| Approvals | CE.RoHS,IP |
| Ambient temperature | -20°C +45°C |
| Average life | 5O,OOOHrs |
| Accessories(Optional) | Yes |
| Applications | Indoor/Outdoor/Landscape/Submersible |
GL550RGB GROUND LIGHT
| MODEL NO. | LED Brand | Color | Beam | PowerMode | Input | Wiring | Cable | Power | Luminous Flux | Dimention | DrillSize |
| GL550RGB | EDISON | RGB | 120 | Constant voltage | 24VDC | Parallel | 3M 4X0.5mm² Cable | 3W | N/A | D76X47 | D65 |
| GL550DMX-RGB | EDISON | RGB | 120 | Constant voltage | 24VDC DMX Controller | Parallel | 1.1M 4X0.5mm² Cable | 3W | N/A | D76X47 | D65 |
| DMX decoder in built | *IES Data support. | ||||||||||
