In-Ground GL310
In-Ground GL310

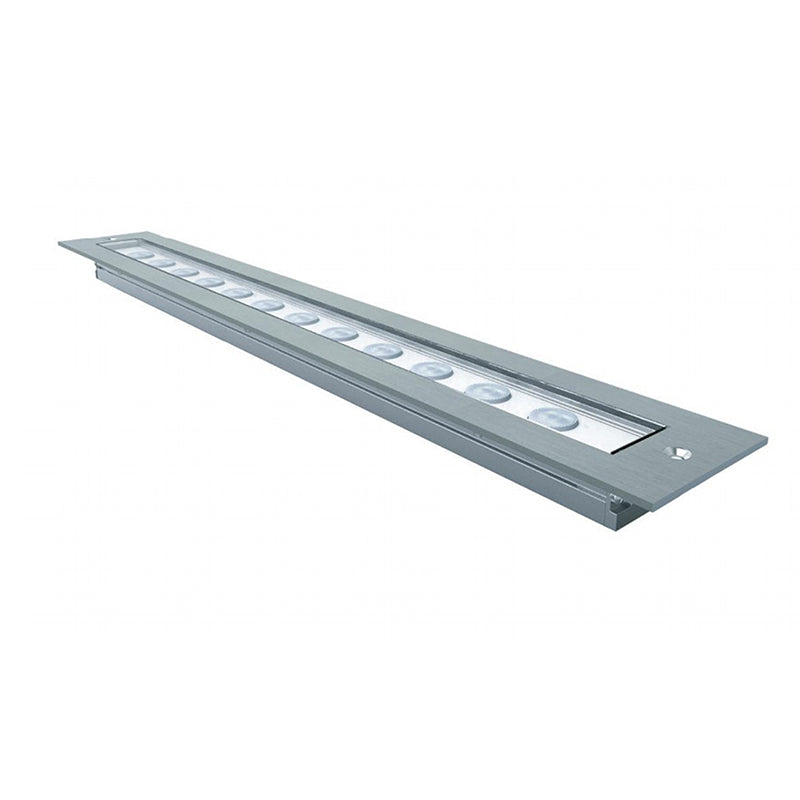

Recessed linear fixture rated to IP67.15/20/30/45/60 degree beam Options.Wall/floor-recessed luminaire for use with fluorescent lamps and LEDs.Tempered glass with integrated CREE XPE LED chipset.Luminaire ready for pass-through wiring.The body of the buried linear lamp is made of die-cast aluminum and surface stainless steel steel plate. Rugged and durable, water seepage prevention, excellent heat dissipation performance. The marine-grade 316 stainless steel material of the cover will be very corrosion-resistant and anti-aging. The material and thickness of the steel plate can achieve a stable leveling effect even in a relatively long size, so that the product can fit the surface cement more perfectly. Silicone sealing ring, excellent waterproof performance and high temperature resistance. High-strength tempered glass, strong light transmittance, wide light radiation surface, this lamp has the advantages of sturdiness, durability and strong bearing capacity.
All screws are also 316 stainless steel. Used in garden decoration, commercial buildings and other occasions, with different lights to achieve different night landscape effects. This linear light is a linear underground light, which can be customized according to the control of length, light-emitting angle, power and color temperature. It is the best choice for outdoor linear underground light.
.
| LED Light source | High Power LED |
| Light Color | RGB,CW.WW,NW,Red,Green,Blue,Amber |
| Material | SUS316(Lamp cap)+Aluminium(Lamp cup) |
| Optics | 15° / S2O° / 30° / 45° / F60° |
| Power | 12W |
| Power supply | 350mA or 24VDC |
| Dimention | 55OX76Xh29 |
| Weight | N/A |
| IP Rating | IP67 |
| Approvals | CE,RoHS,IP |
| Ambient temperature | -2O°C ~ +45°C |
| Accessories(Optional) | N/A |
| Applications | Indoor/Outdoor |
GL310 GROUND LIGHT
| Model No. | LED Brand Color | Beam | PowerMode | Input | Wiring | Cable | Power | Luminous Flux | Dimention | DrillSize | |
| GL310 | CREE | CW.WW. NW, Red Green,Blue,Amber |
15/S20/30/45/F60 | Constant current | 350mA | Series | 0.5M 2X0.75mm² Cable or 0.2M Plug |
12W | 800LM | 550X76XH29 | 505X60 |
| GL310D | CREE | CW.WW. NW, Red Green,Blue,Amber |
15/S20/30/45/F60 | Constant voltage | 24VDC | Parallel | 0.5M 2X0.75mm² Cable or 0.2M Plug |
13W | 800LM | 550X76XH29 | 505X60 |
| GL310M | OSRAM | CW,WW, NW, Red Green,Blue,Amber |
120 | Constant current | 350mA | Series | 0.5M 2X0.75mm² Cable or 0.2M Plug |
12W | 500LM | 550X76XH29 | 505X60 |
| GL310DM | OSRAM | CW,WW, NW, Red Green,Blue,Amber |
120 | Constant voltage | 24VDC | Parallel | 0.5M 2X0.75mm² Cable or 0.2M Plug | 13W | 500LM | 550X76XH29 | 505X60 |
| GL310RGB | CREE | 4R+4G+4B | 15/S20/30/45/F60 | Constant current | 350mA | Series | 0.5M 4X0.5mm² Cable or 0.2M Plug |
12W | N/A | 550X76XH29 | 505X60 |
| GL310DMX-RGB | Edison | RGB(Fullcolor) | 15/S20/30/45/F60 | Constant voltage | 24VDC DMX Controller | Parallel | 0.5M 4X0.5mm² Cable or 0.2M Plug |
13W | N/A | 550X76XH29 | 505X60 |
| DMX decoder in built | *IES Data support.Length and power could be customized. | ||||||||||
