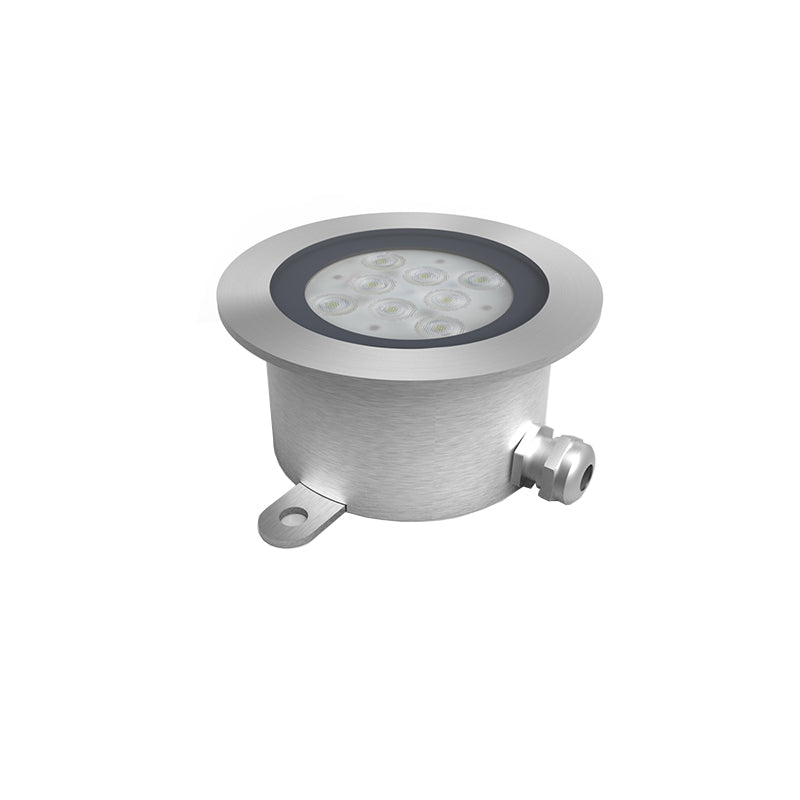

In-Ground GL268
In-Ground GL268
Midsize surface fixture complete with integral CREE XPE LED(8pcs LED) package and 10/40 degree beam options. Tempered glass marine grade 316 Stainless Steel construction rated to IP68. No mechanical joints to light source ensures robust protection against water ingress. Product runs cool meeting all touch temperature requirements. Inline 350mA driver options include switched, mains 1-10V and DALI dimmable solutions. 8W wattage with 800 luminous. Product size is 96x47mm. Use as underwater lighting or architectural lighting. We use CREE lamp beads imported from the United States, which have long life and low power consumption, and do not need to pay high electricity bills for lighting and beautification. The life of the light source reaches more than 50,000 hours, the colors are rich and gorgeous, and there are a variety of color temperatures to choose from. It can realize the RGB color changing function, with high brightness, low energy consumption and soft light. The product design takes into account the anti-glare treatment, and the lamp efficiency is greater than 85%.
It adopts imported marine grade stainless steel 316, which is sturdy and durable, and has excellent heat dissipation performance. Anti-corrosion and anti-aging. Excellent sealing performance. High-strength tempered glass, strong light transmittance and strong load-bearing capacity. All solid screws are made of 316 stainless steel, with individual screw hole design to ensure the safety of the product and avoid the risk of being stolen.
.
| LED Light source | High Power LED |
| Light Color | RGB,CW.WW,NW,Red,Green,Blue,Amber |
| Material | SUS316 |
| Optics | S10° / F40° |
| Power | 8W |
| Power supply | N/A |
| Dimention | D96X47 |
| Weight | 940g |
| IP Rating | IP68 |
| Approvals | CE.RoHS,IP |
| Ambient temperature | -2O°C 2 +45°C |
| Average life | 5O,OOOHrs |
| Accessories(Optional) | N/A |
| Applications | Indoor/Outdoor/Landscape/Submersible |
GL180 GROUND LIGHT

| Model No. | LED Brand | Color | Beam | PowerMode | Input | Wiring | Cable | Power | Luminous Flux | Dimention | DrillSize |
| GL268 | CREE | CW,WW, NW, Red Green,Blue,Amber |
S10/F40 | Constant current | 350mA | Series | 3M 2X0.75mm² Cable | 8W | 800LM | D96X47 | N/A |
| GL268D | CREE | CW,WW, NW, Red Green,Blue,Amber |
S10/F40 | Constant voltage | 24VDC | Parallel | 3M 2X0.75mm² Cable | 9W | 800LM | D96X47 | N/A |
| GL268RGB | CREE | RGB(3R+3G+2B) | S10/F40 | Constant current | 350mA | Series | 2x3M 4X0.5mm² Cable | 8W | N/A | D96X47 | N/A |
| *IES Data support. | |||||||||||
