In-Ground GL240
In-Ground GL240

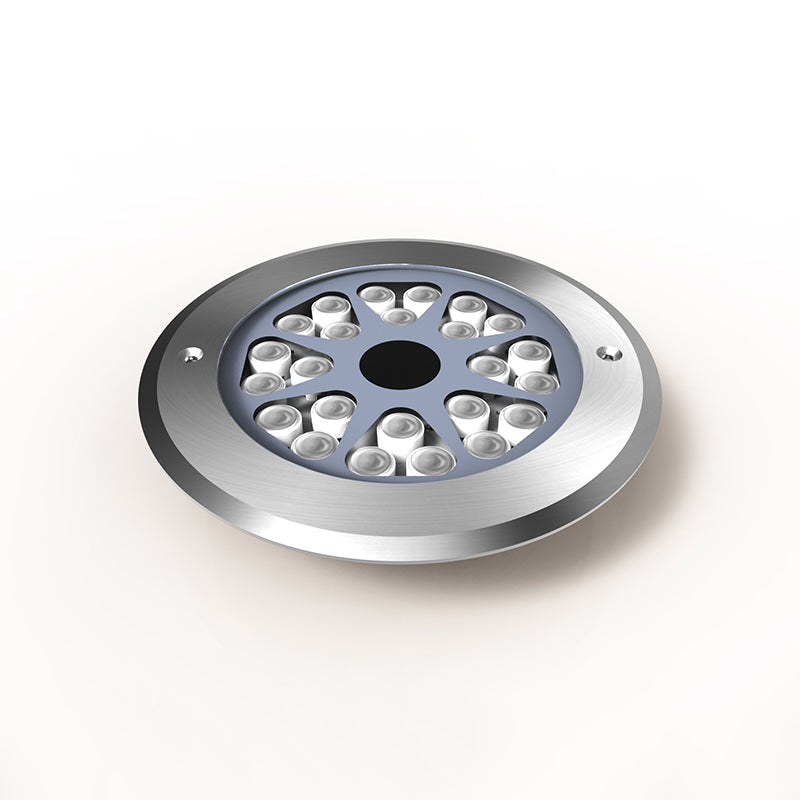

Marine grade 316 stainless steel bezel panel with aluminum lamp Body,Tempered glass,In-ground floodlight fixture complete with Integral CREE LED package. 10/20/40/60 degree beam options.No Mechanical joints to light source ensures robust protection against Water ingress.product runs cool meeting all touch temperature Requirements.Suitable for the illumination of small/medium trees. The shell adopts precision all-stainless steel lamp body, toughened safety glass panel and silicone rubber sealing ring, independent multi-angle refraction strengthened glass, waterproof, dust-proof, leakage-proof and corrosion-proof. You can also flexibly customize the power and light-emitting angle according to your needs.
Because this lamp is built-in installation, we have also equipped with embedded parts for this to facilitate the installation of the lamp and future maintenance. This lamp has a large surface diameter and is a large-scale outdoor buried lamp. It is mostly used in relatively open terrain, gardens and column lighting, and is suitable for regional lighting in parks, squares, shopping malls, gardens, grasslands, and entertainment venues.
.
| LED Light source | High Power LED |
| Light Color | RGB,CW,WW,NW,Red,Green-Blue,Amber |
| Material | SUS316(Lamp cap)+Aluminium(Lamp cup) |
| Optics | 10° / S2O° / 40° / F60° |
| Power | 24W |
| Power supply | N/A |
| Dimention | D248X55 |
| Weight | 3.25kg |
| IP Rating | IP67 |
| Approvals | CE.RoHS,IP |
| Ambient temperature | -20°C ~ +45°C |
| Average life | 50,000Hrs |
| Accessories(Optional) | Yes |
| Applications | Indoor/Outdoor/Landscape |
GL240 GROUND LIGHT

| Model No. | LED Brand | Color | Beam | PowerMode | Input | Wiring | Cable | Power | Luminous Flux | Dimention | DrillSize |
| GL240 | CREE | CW.WW, NW,Red, Green,Blue.Amber | 10/S20/40/F60 | Constant current | 350mA | Series | 3M 2X0.75mm² Cable | 24W | 2200LM | D248X55 | D225 |
| GL240D | CREE | CW,WW, NW,Red,Green,Blue.Amber | 10/S20/40/F60 | Constant voltage | 24VDC | Parallel | 3M 2X0.75mm² Cable | 26W | 2200LM | D248X55 | D225 |
| GL240DM | OSRAM | CW.WW, NW.Red Green,Blue,Amber | 120 | Constant voltage | 24VDC | Parallel | 3M 2X0.75mm² Cable | 18W | 1400LM | D248X55 | D225 |
| GL240RGB | CREE | 8R+8G+8B | 10/S20/40/F60 | Constant current | 350mA | Series | 2x3M 4X0.5mm² Cable | 24W | N/A | D248X55 | D225 |
| GL240DMX-RGB | CREE | 8R+8G+8B | 10/S20/40/F60 | Constant voltage | 24VDC DMX Controller | Parallel | 1.1M4X0.5mm² Cable | 26W | N/A | D248X55 | D225 |
| DMX decoder in built | *IES Data support. | ||||||||||
