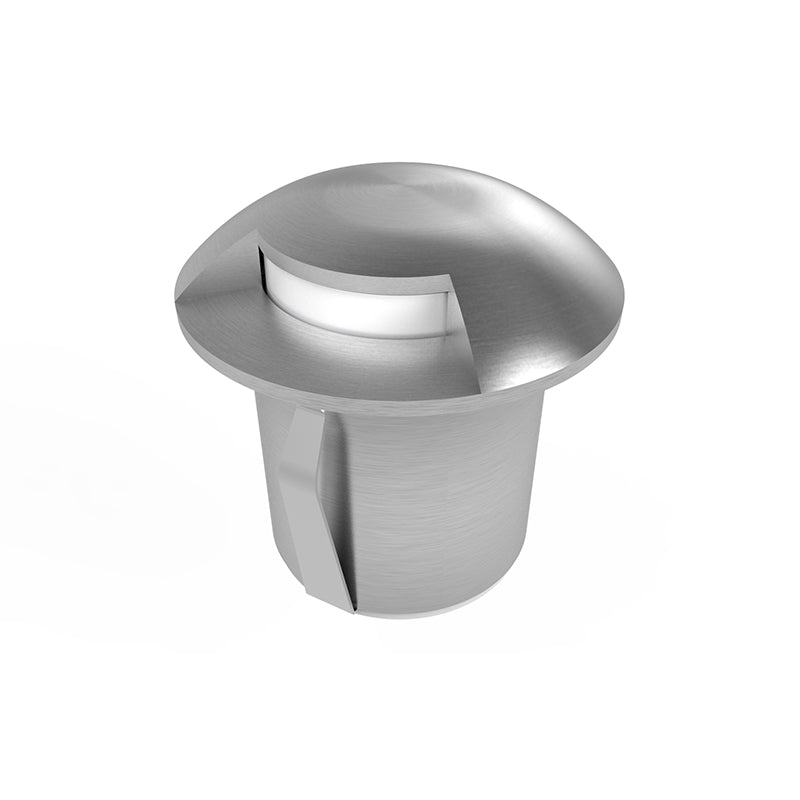

Miniature recessed fixture complete with integral CREE LED package. Marine Grade 316 Stainless Steel with construction rated to IP68 & Eye-Lid design with dual aperture for asymmetric light emission. Product footprint of 44mm diameter ensures versatile application. Inline driver options include switched, 1-10V and DALI dimmable solutions. Mini domed ground light with choice of windows such as one, two or three windows. Use for landscape lighting or Inground lighting or step lighting.
The three light outlets of this product and the three light outlets of GL151 belong to the same family series. The anti-protection grade combined with the installation of the underground drainage system can be used stably for a long time. The integrated underground lamp is equipped with a pre-embedded tube, which is simple and convenient to install. The front-mounted safety tempered glass is highly resistant, and the driving vehicle can be directly driven past.One of our German customers installed nearly 7,000 of these lights on the surface of a large square, which brought a different visual effect to the project even when there was no lighting during the day, just like small mushrooms.
| LED Light source | High Power LED |
| Light Color | CW,WW,NW,Red,Green,Blue,Amber |
| Material | SUS316 |
| Optics | N/A |
| Power | 1W |
| Power supply | N/A |
| Weight | 140g |
| IP Rating | IP68 |
| Approvals | CE,RoHS,IP |
| Ambient temperature | -20℃~+45℃ |
| Average life | 50.000Hrs |
| Accessories(Optional) | Yes |
| Applications | Indoor/Outdoor/Landscape/Submersible |
GL191 GROUND LIGHT

| MODEL NO. | LED Brand | Color | BEAM | PowerMode | Input | Wiring | Cable | Power | Luminous Flux | Dimention |
| GL191 | CREE | CW.WW, NW,Red Green,Blue,Amber | N/A | Constant current | 350mA | Series 1.1M 2X0.4mm² Cable | 1W | N/A | D44X43 | D32 |
| GL192 | CREE | CW,WW, NW, Red Green,Blue,Amber | N/A | Constant current | 350mA | Series 1.1M 2X0.4mm² Cable | 1W | N/A | D44X43 | D32 |
| GL193 | CREE | CW,WW, NW, Red Green,Blue,Amber | N/A | Constant current | 350mA | Series 1.1M 2X0.4mm² Cable | 1W | N/A | D44X43 | D32 |
| GL191D | CREE | CW,WW, NW, Red Green,Blue,Amber | N/A | Constant voltage | 24VDC | Parallel 1.1M 2X0.4mm² Cable | 1.3W | N/A | D44X43 | D32 |
| GL192D | CREE | CW,WW, NW, Red Green,Blue,Amber | N/A | Constant voltage | 24VDC | Parallel 1.1M 2X0.4mm² Cable | 1.3W | N/A | D44X43 | D32 |
| GL193D | CREE | CW,WW, NW, Red Green,Blue,Amber | N/A | Constant voltage | 24VDC | Parallel 1.1M 2X0.4mm² Cable | 1.3W | N/A | D44X43 | D32 |
| *IES Data support. | ||||||||||


■ Project map
