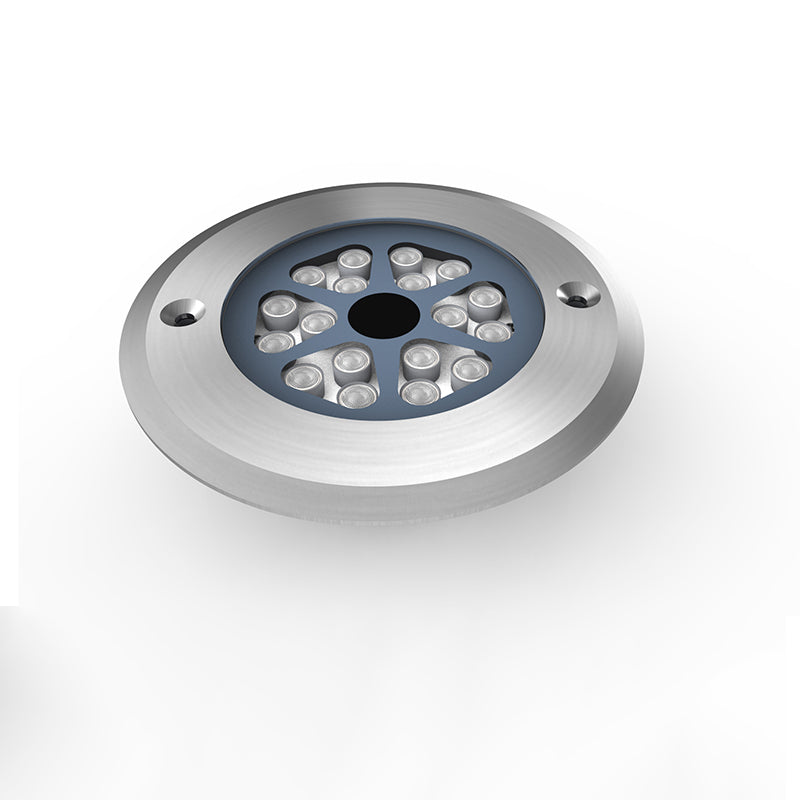

In-Ground GL180
In-Ground GL180
Marine grade 316 stainless steel bezel panel with aluminum lamp Body.Tempered glass,this fixture complete with integral CREE LED package.Fixture rated to IP67 with no mechanical joints to light source ensures robust protection against Water ingress. 10/20/40/60 degree beam options.product runs cool meeting all touch temperature requirements.Suitable for the illumination of small/medium trees. This lamp also has RGB color temperature also it can workable for DMX control. It is easy to control, can realize the color changing function, high brightness, low energy consumption, and soft light. It can be used as architectural lighting, in-ground outdoor lighting.
This model can realize the control effect according to the design requirements. It can be realized that the lights can be used to decorate the flowers and trees, and the wider squares and tall walls can be illuminated according to the requirements. In order to be more convenient for installation and maintenance, we also equip this model with embedded parts.
.
| LED Light source | High Power LED |
| Light Color | RGB,CW,WW,NW,Red,Green,Blue,Amber |
| Material | SUS316(Lamp cap)+Aluminium(Lamp cup) |
| Optics | 10° / S20° / 40° / F6O° |
| Power | 18W |
| Power supply | N/A |
| Dimention | D175X51 |
| Weight | 1.7KG |
| IP Rating | IP67 |
| Approvals | CE.RoHS,IP |
| Ambient temperature | -2O°C ~ +45°C |
| Average life | 50,000Hrs |
| Accessories(Optional) | Yes |
| Applications | Indoor/Outdoor/Landscape |
GL180 GROUND LIGHT
| Model No. LED Brand | Color | Beam | PowerMode | Input | Wiring | Cable | Power | Luminous Flux | Dimention | DrillSize | |
| GL180 | CREE | CW,WW, NW,Red, Green,Blue,Amber | 10/S20/40/F60 | Constant current | 350mA | Series | 3M 2X0.75mm² Cable | 18W | 1700LM | D175X51 | D155 |
| GL180D | CREE | CW,WW, NW,Red Green,Blue,Amber | 10/S20/40/F60 | Constant voltage | 24VDC | Parallel | 3M 2X0.75mm² Cable | 20W | 1700LM | D175X51 | D155 |
| GL180RGB | CREE | 6R+6G+6B | 10/S20/40/F60 | Constant current | 350mA | Series | 2x3M 4X0.5mm² Cable | 18W | N/A | D175X51 | D155 |
| GL180DMX-RGB | CREE | 6R+6G+6B | 10/S20/40/F60 | Constant voltage | 24VDCDMX Controller | Parallel | 1.1M 4X0.5mm² Cable | 20W | N/A | D175X51 | D155 |
| GL180DMX-RGB | Edison | RGB(Fullcolor) | 10/S20/40/F60 | Constant voltage | 24VDCDMX Controller | Parallel | 1.1M 4X0.5mm² Cable | 20W | N/A | D175X51 | D155 |
| GL180DMX-RGBW | Edison | RGBW(Fullcolor) | 10/S20/40/F60 | Constant voltage | 24VDCDMX Controller | Parallel | 1.1M 4X0.5mm² Cable | 20W | N/A | D175X51 | D155 |
| DMX decoder in built | *IES Data support. | ||||||||||
