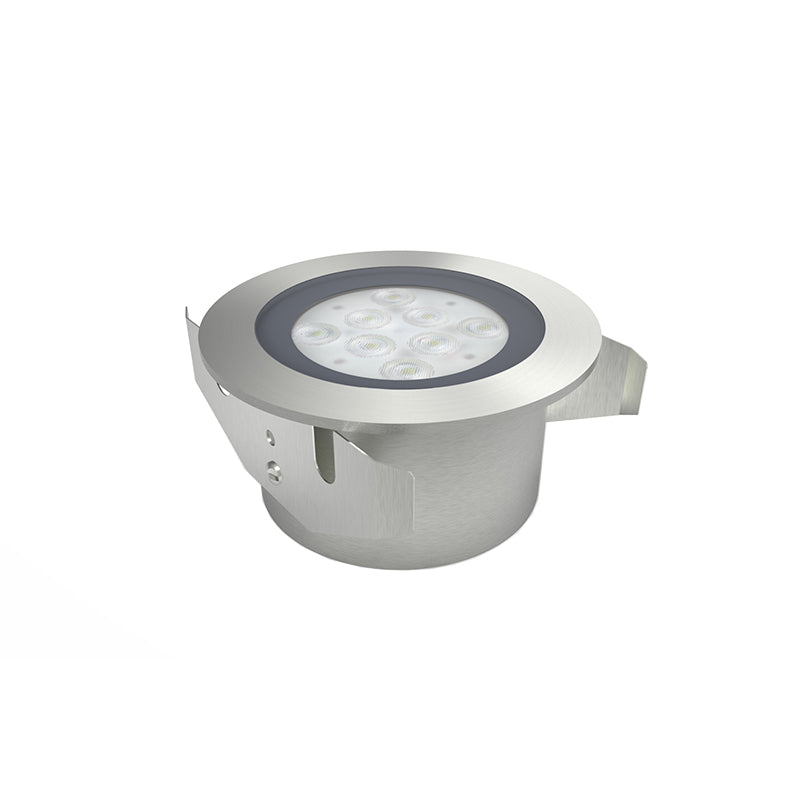

In-Ground GL168
In-Ground GL168
Midsize surface fixture complete with integral CREE XPE LED(8pcs LED) package and 10/40 degree beam options. Tempered glass,marine grade 316 Stainless Steel construction rated to IP68. Hidden&embedded design installation. No mechanical joints to light source ensures robust protection against water ingress. Product runs cool meeting all touch temperature requirements. Inline 350mA driver options include switched, mains, 1-10V and DALI dimmable solutions. 8W wattage with 800 luminous. The product can be used buried or underwater.
LED underground lights are widely used in green belts, park lighting projects, parks, lawns, courtyard lighting, pedestrian streets, parking lots, square night lighting, building main decoration bridges, and road lighting. The material of the buried light is basically marine-grade stainless steel 316, which is durable, water-proof, and good in heat dissipation. Silicone sealing ring, waterproof, high temperature resistance, anti-aging. High-strength tempered glass, strong light transmittance, wide light radiation surface, strong bearing capacity.
.
| LED Light source | High Power LED |
| Light Color | RGB,CW.WW,NW,Red,Green,Blue,Amber |
| Material | SUS316 |
| Optics | S1O° / F40° |
| Power | 8W |
| Power supply | N/A |
| Dimention | D96X47 |
| Weight | 94Og |
| IP Rating | IP68 |
| Approvals | CE.RoHS,IP |
| Ambient temperature | -2O°C +45°C |
| Average life | 5O,OOOHrs |
| Accessories(Optional) | Yes |
| Applications | Indoor/Outdoor/Landscape/Submersible |
GL168 GROUND LIGHT
| MODEL NO. | LED Brand | Color | Beam | PowerMode | Input | Wiring | Cable | Power | Luminous Flux | Dimention | DrillSize |
| GL168 | CREE | CW.WW. NW,Red Green,Blue,Amber | S10/F40 | Constant current | 350mA | Series | 3M 2X0.75mm² Cable | 8W | 800LM | D96X47 | D85 |
| GL168D | CREE | CW.WW, NW,Red Green,Blue,Amber | S10/F40 | Constant voltage | 24VDC | Parallel | 3M 2X0.75mm² Cable | 9W | 800LM | D96X47 | D85 |
| GL168RGB | CREE | 3R+3G+2B | S10/F40 | Constant current | 350mA | Series | 2x3M 4X0.5mm² Cable | 8W | N/A | D96X47 | D85 |
| GL168DMX-RGB | CREE | 3R+3G+2B | S10/F40 | Constant voltage | 24VDC DMXController | Parallel | 1.1M 4X0.5mm² Cable | 9W | N/A | D96X47 | D85 |
| DMX decoder in built | *IES Data support. | ||||||||||
