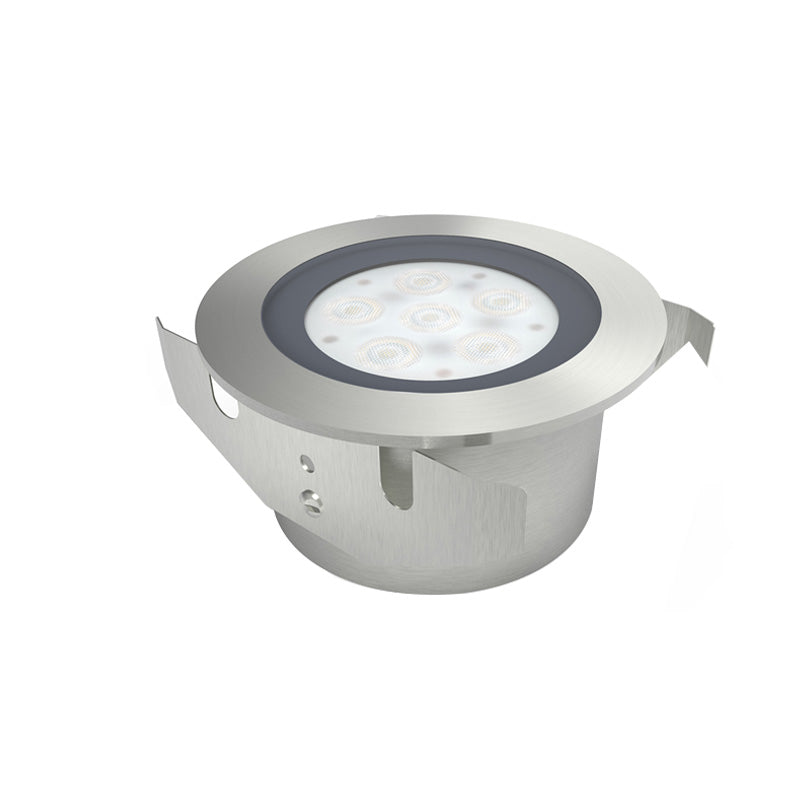

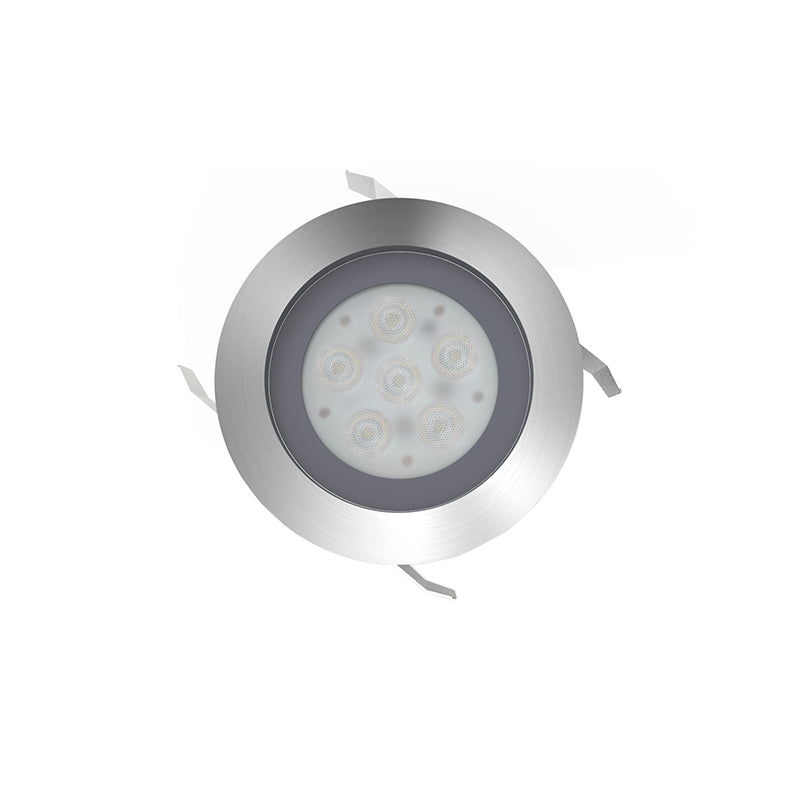

In-Ground GL166
In-Ground GL166
Midsize surface fixture complete with integral CREE XPE(6pcs LED) package and 10/40 degree bean options .Tempered glass, marine Grade 316 Stainless Steel construction rated tolP68.Hidden & embedded design installation .No mechanical joints to light source ensures robust protection against water ingress .Product runs cool meeting all touch temperature requirements. Inline 350mA driver options include switched, mains, 1-10V and DALI dimmable solutions。 6W wattage with 600 luminous. Product size is 96x47mm.
LED outdoor lights are widely used in lawns, courtyard lighting, pedestrian streets. individual screw hole design to ensure the safety of the product and avoid the risk of being stolen. This is a radial light-emitting lamp. The shape of the lamp can be selected according to the design needs. The high-strength tempered glass makes the product strong in light transmittance.
.
| LED Light source | High Power LED |
| Light Color | RGB,CW.WW,NW,Red,Green,Blue,Amber |
| Material | SUS316 |
| Optics | S1O° / F40° |
| Power | 6W |
| Power supply | N/A |
| Dimention | D96X47 |
| Weight | 94Og |
| IP Rating | IP68 |
| Approvals | CE.RoHS,IP |
| Ambient temperature | -2O°C 2 +45°C |
| Average life | 5O,OOOHrs |
| Accessories(Optional) | Yes |
| Applications | Indoor/Outdoor/Landscape/Submersible |
GL166 GROUND LIGHT
| MODEL NO. | LED Brand | Color | BEAM | PowerMode | Input | Wiring | Cable | Power | Luminous Flux | Dimention | DrillSize |
| GL166 | CREE | CW.WW, NW, Red Green,Blue,Amber | S10/F40 | Constantcurrent | 350mA | Series | 3M 2X0.75mm² Cable | 6W | 600LM | D96X47 | D85 |
| GL166D | CREE | CW,WW, NW, Red Green,Blue,Amber | S10/F40 | Constantvoltage | 24VDC | Parallel | 3M 2X0.75mm² Cable | 6.5W | 600LM | D96X47 | D85 |
| GL166RGB | CREE | 2R+2G+2B | S10/F40 | Constantcurrent | 350mA | Series | 2x3M 4X0.5mm² Cable | 6W | N/A | D96X47 | D85 |
| GL166DMX-RGB | CREE | 2R+2G+2B | S10/F40 | Constantvoltage | 24VDC DMXController | Parallel | 1.1M4X0.5mm² Cable | 6.5W | N/A | D96X47 | D85 |
| GL166DMX-RGB | Edison | RGB(Fullcolor) | S10/F40 | Constantvoltage | 24VDC DMXController | Parallel | 1.1M4X0.5mm² Cable | 6.5W | N/A | D96X47 | D85 |
| GL166DMX-RGBW | Edison | RGBW(Fullcolor) | S10/F40 | Constantvoltage | 24VDC DMXController | Parallel | 1-1M4X0.5mm² Cable | 6.5W | N/A | D96X47 | D85 |
| DMX decoder in built | *IES Data.support. | ||||||||||
