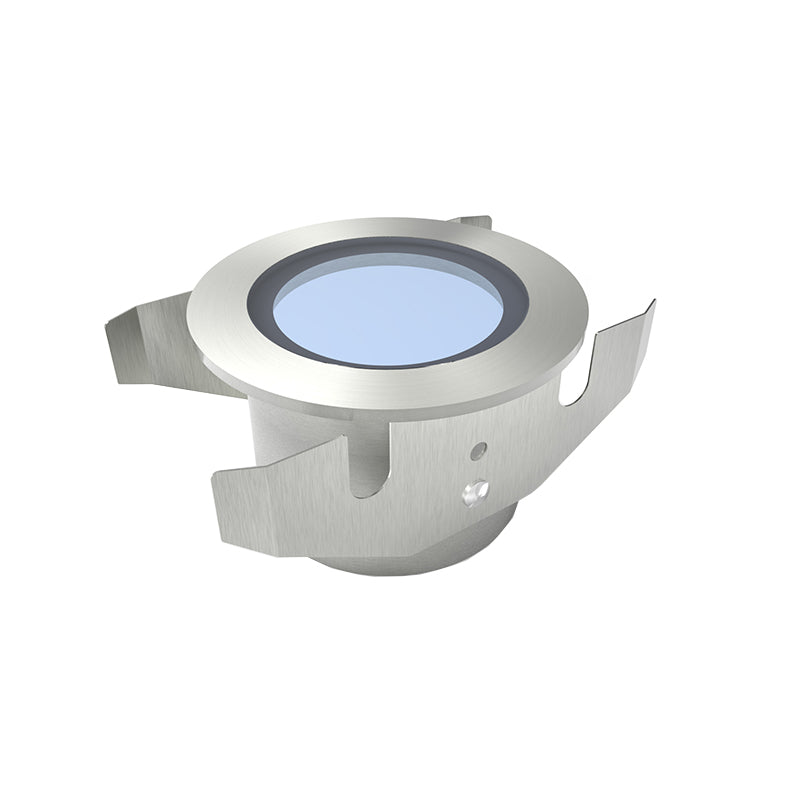

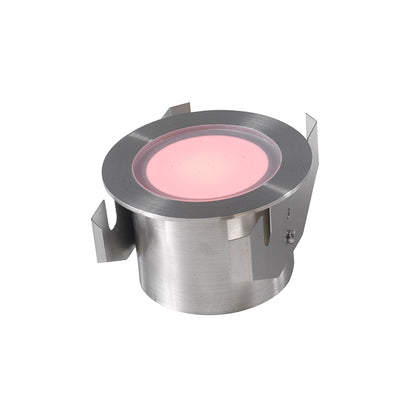

In-Ground GL150

Miniature recessed fixture complete with integral CREE LED package and 120 degree bean option.Tempered glass, marine grade 316 Stainless Steel construction rated to IP68.Product footprint of 76mm diameter ensures versatile application.Inline driver options include switched,1-10V and DALI dimmable solutions. There are a variety of color temperatures to choose from. It is easy to control, can realize the color changing function, high brightness, low energy consumption, and soft light.

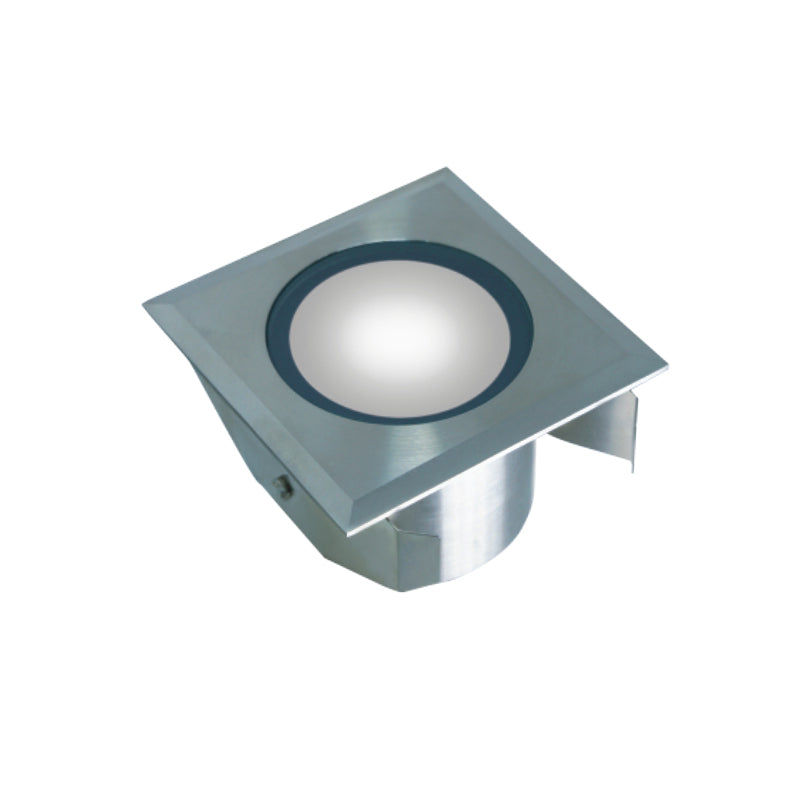

There are two design options for this lamp, one is a round lamp housing and the other is a square lamp housing. Both shapes are their own family products. The integrated underground lamp is equipped with a pre-embedded tube, which is simple and convenient to install. The front-mounted safety tempered glass is highly resistant, and the driving vehicle can be directly driven past.

LED Light source	High Power LED
Light Color	RGB,CW.WW,NW,Red,Green,Blue,Amber
Material	SUS316
Optics	120°
Power	3W
Power supply	N/A
Dimention	D76X47
Weight	635g
IP Rating	IP68
Approvals	CE.RoHS,IP
Ambient temperature	-20°C +45°C
Average life	5O,OOOHrs
Accessories(Optional)	Yes
Applications	Indoor/Outdoor/Landscape/Submersible

GL150 GROUND LIGHT

MODEL NO.	LED Brand	Color	BEAM	PowerMode	Input	Wiring	Cable	Power	Luminous Flux	Dimention	DrillSize
GL150	CREE	CW.WW, NW, Red Green,Blue,Amber	120	Constant current	350mA	Series	3M 2X0.75mm² Cable	3W	300LM	D76X47	D65
GL150D	CREE	CW.WW, NW, Red Green,Blue,Amber	120	Constant voltage	12/24VDC	Parallel	3M 2X0.75mm² Cable	3.5W	300LM	D76X47	D65
GL150SQ	CREE	CW,WW, NW, Red Green,Blue,Amber	120	Constant current	350mA	Series	3M 2X0.75mm² Cable	3W	300LM	76X76X47	D65
GL150RGB	EDISON	RGB	120	Constant current	350mA	Series	2x3M 4X0.5mm² Cable	7W	N/A	D76X47	D65
GL150DMX-RGB	EDISON	RGB	120	Constant voltage	24VDC DMXController	Parallel	1.1M 4X0.5mm² Cable	3.5W	N/A	D76X47	D65
DMX decoder in built										*IES Data support.

GL150-2

GL150-1
