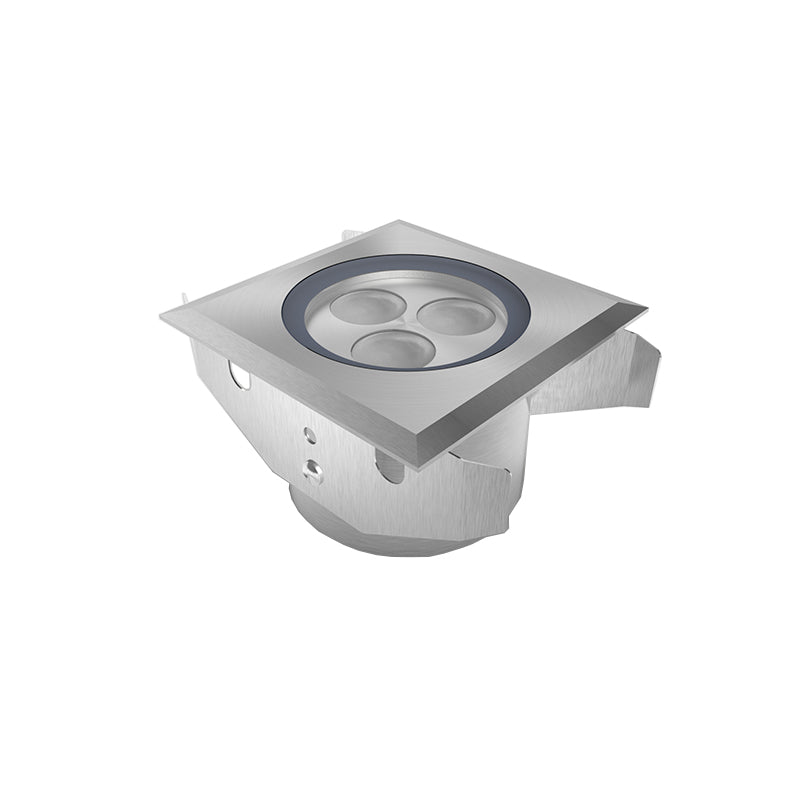

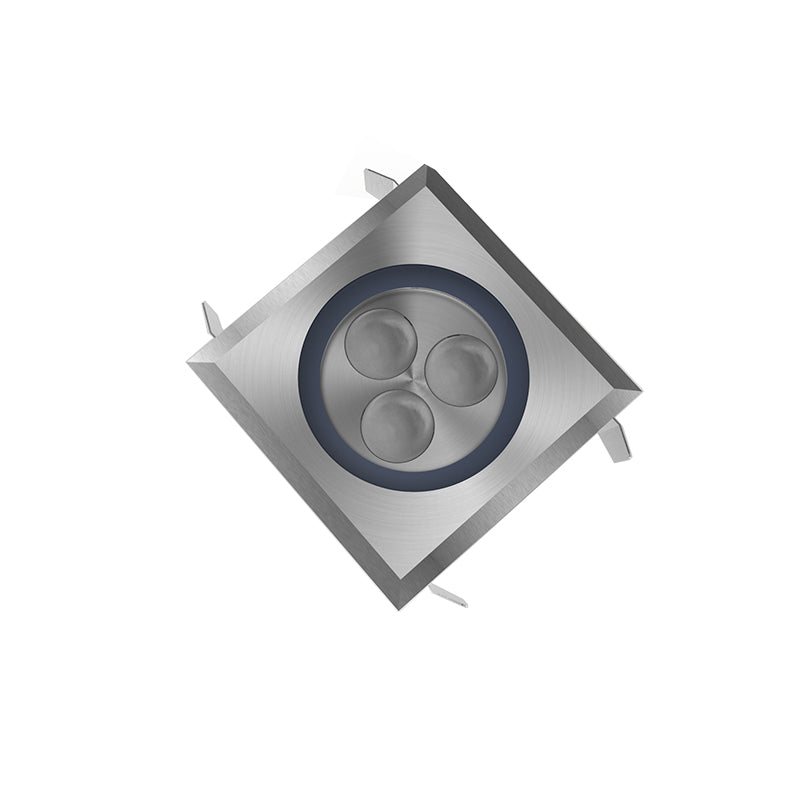

In-Ground GL140SQ
In-Ground GL140SQ
Square recessed fixture complete with integral CREE LED package and 20/60 degree bean options.Tempered glass, marine grade 316 Stainless Steel option with construction rated to IP68.Product footprint of 76mm diameter ensures versatile application.Inline driver options include switched, 1-10V and DALI dimmable solutions. We use CREE lamp beads imported from the United States, which have long life and low power consumption, and do not need to pay high electricity bills for lighting and beautification. The life of the light source reaches more than 50,000 hours, the colors are rich and gorgeous, there are a variety of color temperatures to choose from, there are a variety of color temperatures for customers to choose, and it can also be controlled by RGB or DMX-RGB.
GL112SQ, GL119SQ, GL116SQ, GL140SQ, GL150SQ is a family system ranging from mini to large. The shape of the cap can be round or square, and the power can also be selected from small to large. For the lamp cap, the processing technology of bevel water chestnut treatment is positive and exquisite, and you will be amazed when you see the actual sample.
.
| LED Light source | High Power LED |
| Light Color | RGB,CW.WW,NW,Red,Green,Blue,Amber |
| Material | SUS316 |
| Optics | S2O° / F6O° |
| Power | 3W |
| Power supply | N/A |
| Dimention | 76x76x47 |
| Weight | N/A |
| IP Rating | IP68 |
| Approvals | CE.RoHS,IP |
| Ambient temperature | -2O°C +45°C |
| Average life | 5O,OOOHrs |
| Accessories(Optional) | Yes |
| Applications | Indoor/Outdoor/Landscape/Submersible |
GL140SQ GROUND LIGHT

| MODEL NO. | LED Brand | Color | BEAM | PowerMode | Input | Wiring | Cable | Power | Luminous Flux | Dimention | DrillSize |
| GL140SQ | CREE | CW,WW, NW, Red Green,Blue,Amber | S20/F60 | Constant current | 350mA | Series | 3M 2X0.75mm² Cable | 3W | 300LM | 76X76X47 | D65 |
| GL140SQD | CREE | CW,WW, NW, Red Green,Blue,Amber | S20/F60 | Constant voltage | 12/24VDC | Parallel | 3M 2X0.75mm² Cable | 3.5W | 300LM | 76X76X47 | D65 |
| GL140SQRGB | CREE | R+G+B | S20/F60 | Constant current | 350mA | Series | 2x3M 4X0.5mm² Cable | 3W | N/A | 76X76X47 | D65 |
| GL140SQ-DMX-RGB | Edison | RGB(FullColor) | S20/F60 | Constant voltage | 24VDC DMX Controller | Parallel | 1.1M 4X0.5mm² Cable | 3.5W | N/A | 76X76X47 | D65 |
| DMX decoder in built | *IES Data support. | ||||||||||
