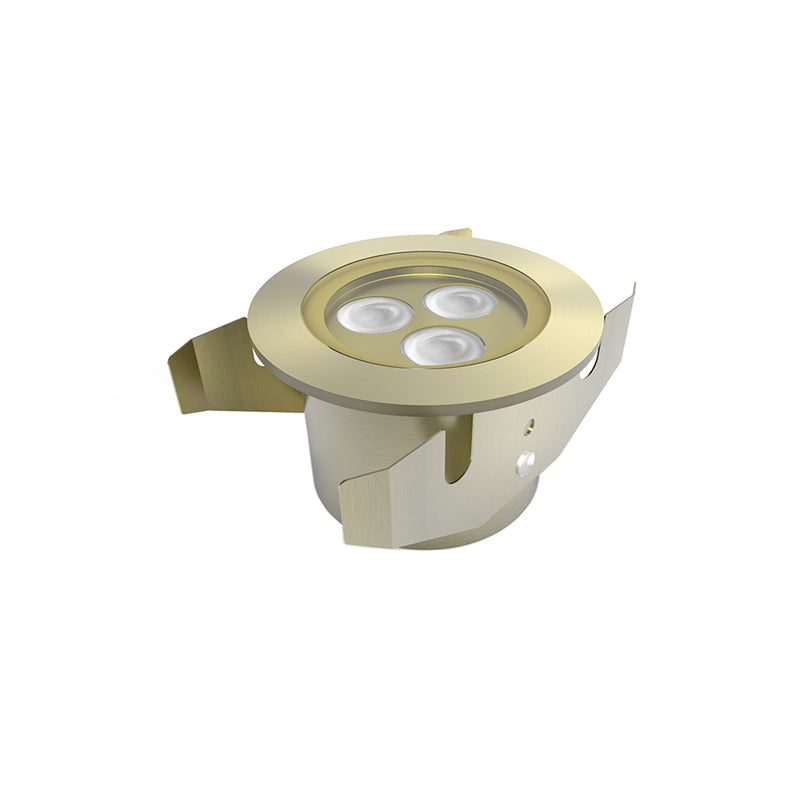

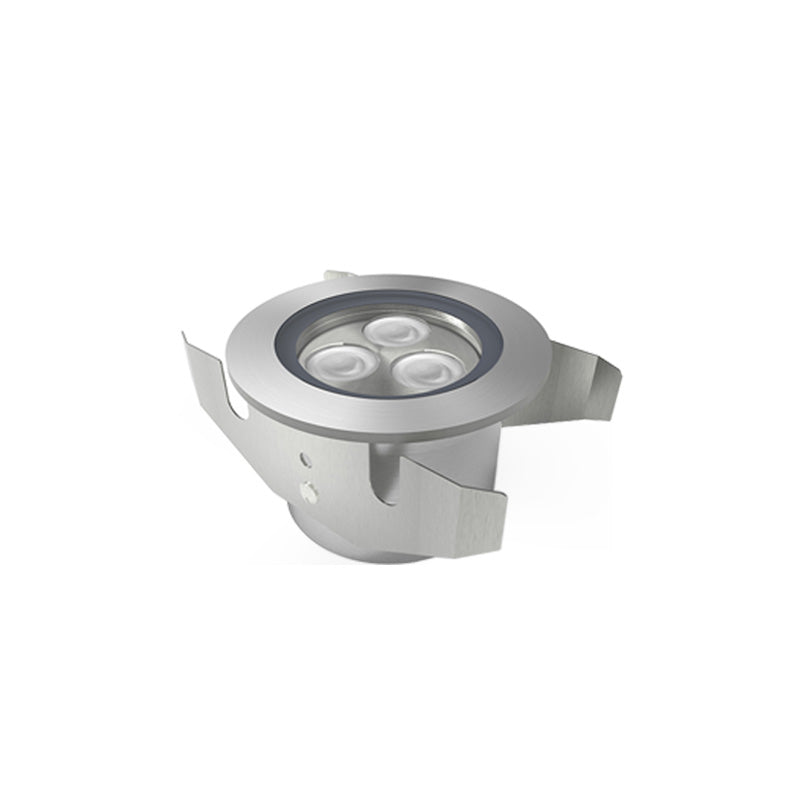

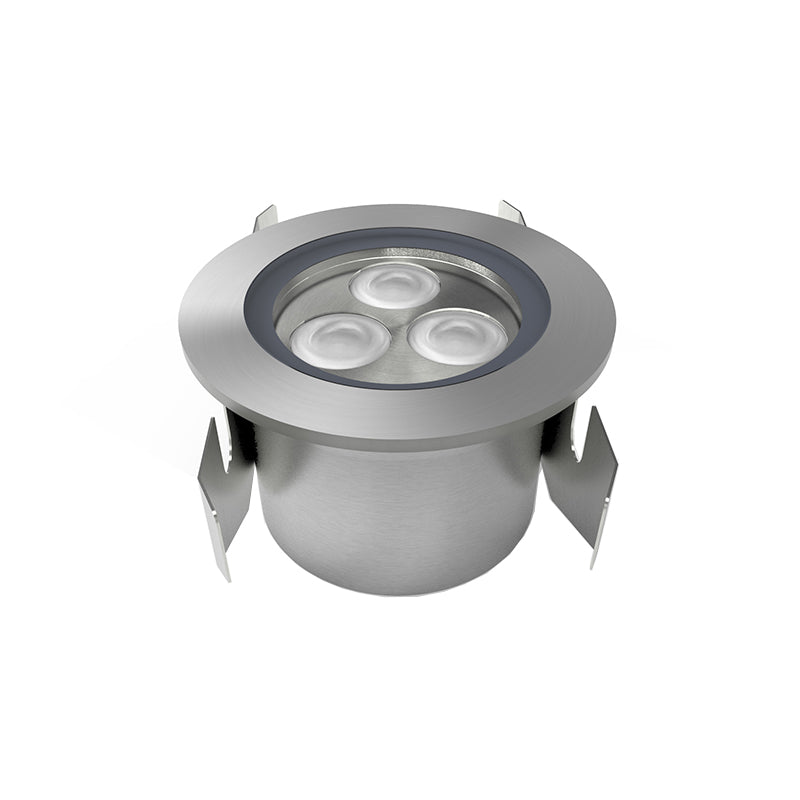

In-Ground GL140
In-Ground GL140
Miniature recessed fixture complete with integral CREE LED package and 10/20/30/45/60 degree bean options.Tempered glass, marine grade 316 Stainless Steel option with construction rated to IP68.Product footprint of 76mm diameter ensures versatile application.Inline driver options include switched, 1-10V and DALI dimmable solutions. The appearance is exquisite, sturdy and durable, and it is made of ultra-corrosion-resistant marine grade stainless steel SUS316 by automatic CNC processing. The unique packaging technology can not only ensure the heat dissipation of the LED, extend the service life of the lamp, but also ensure that the protection level of the product reaches IP8. The integrated underground lamp is equipped with a pre-embedded tube, which is simple and convenient to install. The front-mounted safety tempered glass is highly resistant, and the driving vehicle can be directly driven past.
The product is flexible in application, with a variety of color temperatures for customers to choose, and can also be used for RGB or DMX-RGB control. It can be widely used in gardens, squares, corridors, pools and other places. It can also be used in indoor corridors, floors and other occasions, and is your best choice for decorative lighting.
.
| LED Light source | High Power LED |
| Light Color | RGB,CW,WW,NW,Red,Green,Blue,Amber |
| Material | SUS316 / Brass |
| Optics | 1O/S2O/3O/45/F6O |
| Power | 3W |
| Power supply | N/A |
| Weight | N/A |
| IP Rating | IP68 |
| Approvals | CE,RoHS,IP |
| Ambient temperature | -2O°C+45°C |
| Average life | 5O,OOOHrs |
| Accessories(Optional) | Yes |
| Applications | Indoor/Outdoor/Landscape/Submersible |
GL140 GROUND LIGHT
| MODEL NO. | LED Brand | Color | Beam | PowerMode | Input | Wiring | Cable | Power | Luminous Flux | Dimention | DrillSize |
| GL140 | CREE | CW.WW, NW.Red Green,Blue,Amber | 10/S20/30 /45/F60 | Constant current | 350mA | Series | 3M 2X0.75mm² Cable | 3W | 300LM | D76X47 | D65 |
| GL140D | CREE | CW.WW, NW.Red Green,Blue.Amber | 10/S20/30 /45/F60 | Constant voltage | 12/24VDC | Parallel | 3M 2X0.75mm² Cable | 3.5W | 300LM | D76X47 | D65 |
| GL140RGB | CREE | R+G+B | 10/S20/30 /45/F60 | Constant current | 350mA | Series | 2x3M 4X0.5mm² Cable | 3W | N/A | D76X47 | D65 |
| GL140RGB-9W(IP67) | Edison | RGB | 45 | Constant current | 350mA Controller | Series | 2x3M 4X0.5mm² Cable | 9W | N/A | D76X86 | D65 |
| GL140DMX-RGB | Edison | RGB(FullColor) | 10/S20/30 /45/F60 | Constant voltage | 24VDC DMXController | Parallel | 1.1M 4X0.5mm² Cable | 3.5W | N/A | D76X47 | D65 |
| GL140DMX-RGBW | Edison | RGBW(FullColor) | 10/S20/30/45/F60 | Constant voltage | 24VDC DMXController | Parallel | 1.1M 4X0.5mm² Cable | 3.5W | N/A | D76X47 | D65 |
| DMX decoder in built | *IES Data support. | ||||||||||
