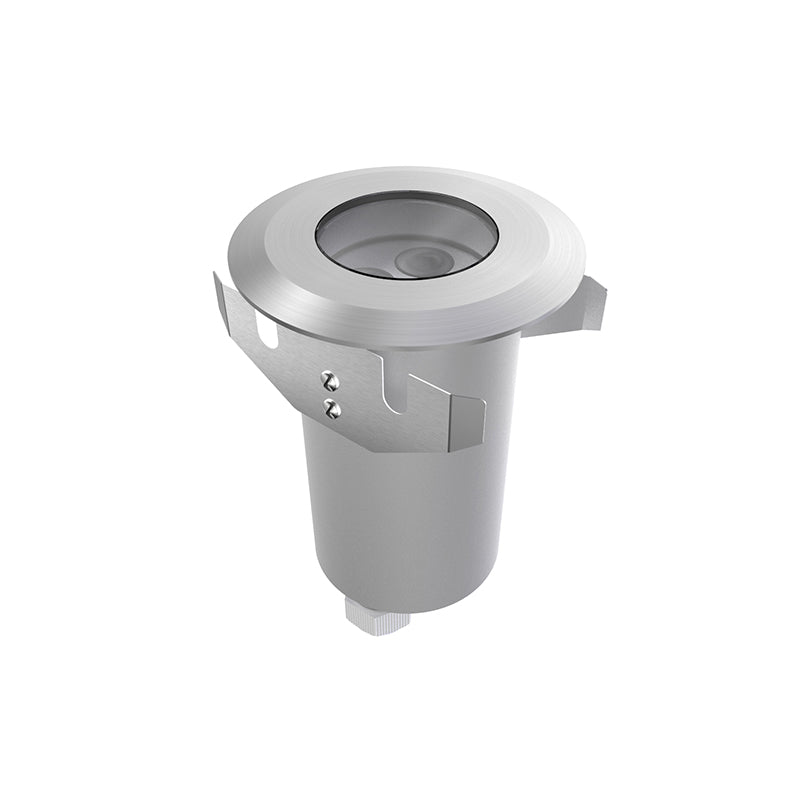

In-Ground GL130
In-Ground GL130
Tempered glass,marine grade 316 stainless steel bezel panel with Aluminum lamp body.Hidden&embedded design installation .This fixture complete with integral CREE LED package.Fixture rated to IP67. In the environment of outdoor inground use, the heat dissipation requirements of the product are extremely high. Therefore, this model uses an aluminum alloy lamp body, and we have extra protection for the internal electronic parts of the product, including the space setting, and even the embedded parts used with our products are basically aluminum materials, so as to ensure the greatest extent The heat dissipation of the product. Extend the service life of the lamp.
In the environment of buried use, the heat dissipation requirements of the product are extremely high. Therefore, this model uses an aluminum alloy lamp body, and we have extra protection for the internal electronic parts of the product, including the space setting, and even the embedded parts used with our products are basically aluminum materials, so as to ensure the greatest extent The heat dissipation of the product. Extend the service life of the lamp.
.
| LED Light source | High Power LED |
| Light Color | RGB,CW,WW,NW,Red,Green,Blue,Amber,RGB |
| Material | SUS316(Lamp cap)+ Aluminium(Lamp cup) |
| Optics | S2O° / F6O° |
| Power | 3W |
| Power supply | N/A |
| Dimention | D98X16O |
| Weight | 930g |
| IP Rating | IP67 |
| Approvals | CE,RoHS,IP |
| Ambient temperature | -2O°C ~ +45°C |
| Average life | 5O,OOOHrs |
| Accessories(Optional) | Yes |
| Applications | Indoor/Outdoor/La ndsca pe |
GL130 GROUND LIGHT
| MODEL NO. | LED Brand | Color | BEAM | PowerMode | Input | Wiring | Cable | Power | Luminous Flux | Dimention | DrillSize |
| GL130 | CREE | CW,WW, NW,Red Green,Blue,Amber | S20/F60 | Constant voltage | 100-240VAC | Parallel | N/A | 3W | 250LM | D98X160 | D74 |
| GL130D | CREE | CW,WW, NW,Red Green,Blue,Amber | S20/F60 | Constant voltage | 24VDC | Parallel | N/A | 3W | 250LM | D98X160 | D74 |
| GL130RGB | CREE | RGB | 45 | Constant current | 350mA | Series | N/A | 3W | N/A | D98X160 | D74 |
| *IES Data support. | |||||||||||
■ Project map
