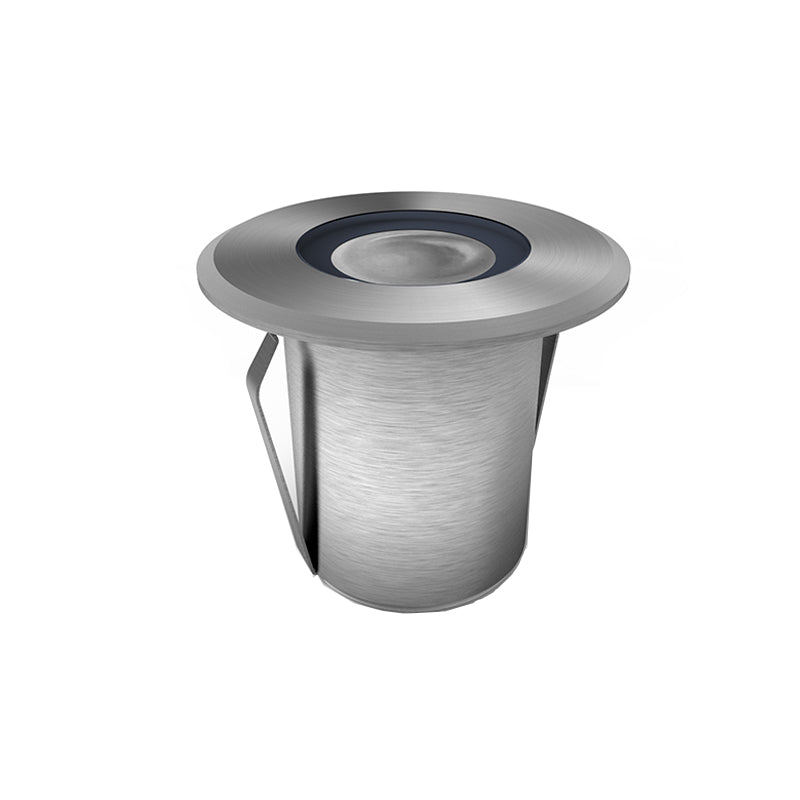

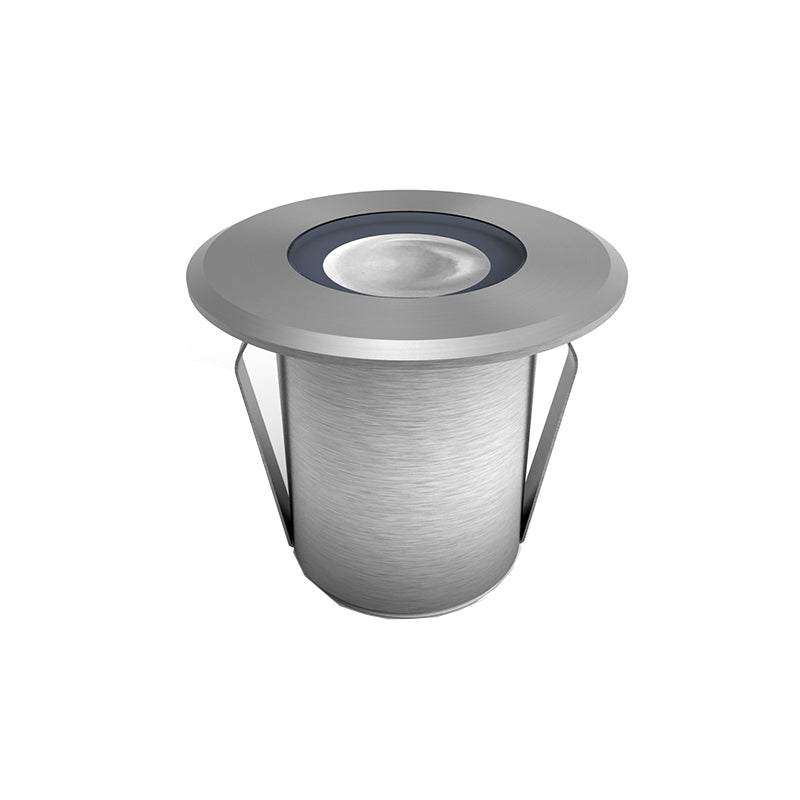

In-Ground GL129
In-Ground GL129
Miniature recessed fixture complete with integral CREE LED package.Tempered glass,marine grade 316 Stainless Steel option with construction rated to IP68. Product footprint of 50mm diameter ensures versatile application.Inline driver options include switched, 1-10V and DALI dimmable solutions.
Eurborn uses advanced technology development for the manufacturing process of LED underground lights and the combination of tube manufacturing with unique LED materials. Therefore, in addition to the characteristics of variable colors and different shapes, it also has a long light-emitting time and saves energy. The effectiveness of the shrapnel design of the lamp body perfectly solves the installation stability of the lamp, so that the lamp no longer shakes after installation, greatly reducing the difficulty of fixing the lamp to the embedded part, making the lamp installation safer and more assured. This product also supports a variety of control schemes to realize the switching of lighting scenes, making the ambient color temperature variable.
.
| LED Light source | High Power LED |
| Light Color | CW.WW,NW,Red,Green,Blue,Amber |
| Material | SUS316 |
| Optics | S2O° / F6O° |
| Power | 1W |
| Power supply | N/A |
| Dimention | D60x45 |
| Weight | 465g |
| IP Rating | IP68 |
| Approvals | CE,RoHS,IP |
| Ambient temperature | -2O°C ~ +45°C |
| Average life | 5O,OOOHrs |
| Accessories(Optional) | Yes |
| Applications | Indoor/Outdoor/La ndsca pe/Submersible |
GL129 GROUND LIGHT
| MODEL NO. | LED Brand | Color | BEAM | PowerMode | Input | Wiring | Cable | Power | Luminous Flux | Dimention | DrillSize |
| GL129 | CREE | CW,WW, NW, Red Green,Blue,Amber | S20/F60 | Constant current | 350mA | Series | 1.1M 2X0.4mm² Cable | 1W | 100LM | D50X42 | D33 |
| GL129D | CREE | CW,WW, NW, Red Green,Blue,Amber | S20/F60 | Constant voltage | 24VDC | Parallel | 1.1M 2X0.4mm² Cable | 1.3W | 100LM | D50X42 | D33 |
| *IES Data support. | |||||||||||
