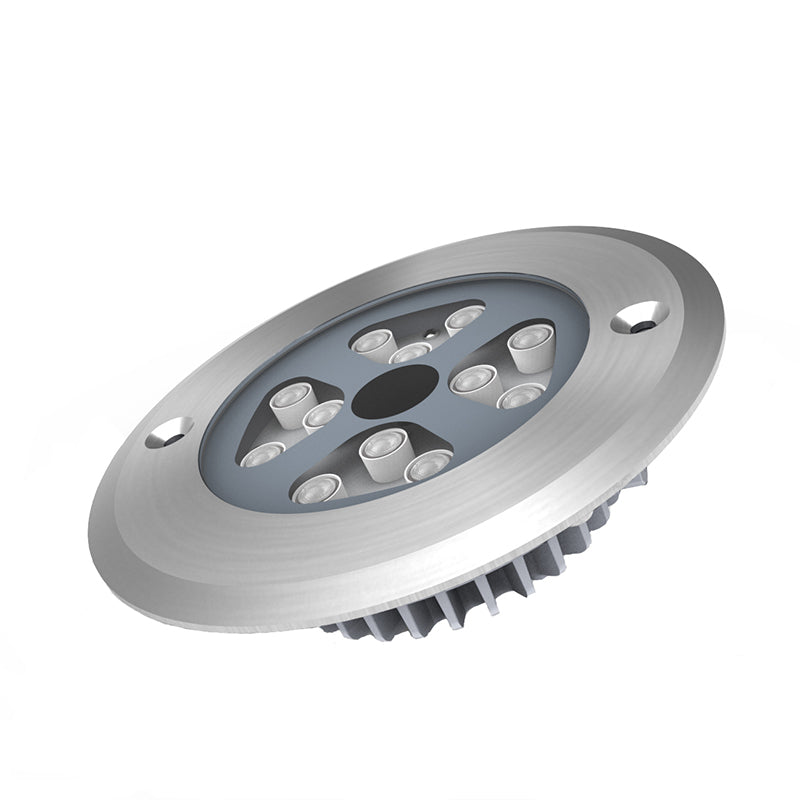

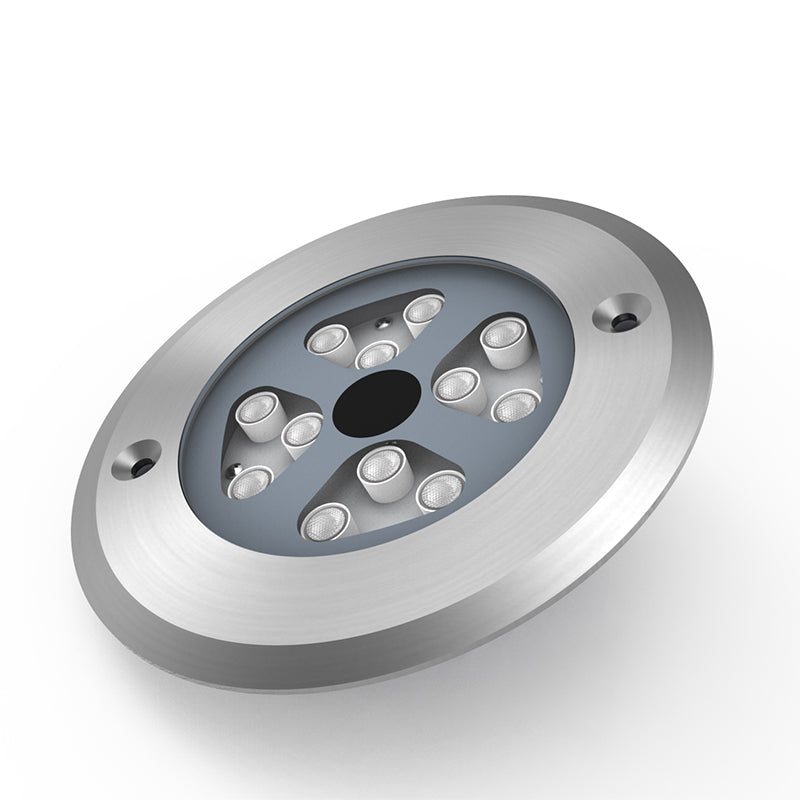

In-Ground GL120
In-Ground GL120
Marine grade 316 stainless steel bezel panel with aluminum lamp Body.Tempered glass,this fixture complete with integral CREE LED package.Fixture rated to IP67 with no mechanical joints to light source ensures robust protection against Water ingress. 10/20/40/60 degree beam options.product runs cool meeting all touch temperature requirements.Suitable for the illumination of small/medium trees. This in-ground luminaires is made of sturdy and durable material with excellent heat dissipation performance. Anti-corrosion and anti-aging. Excellent sealing performance. The maximum power of this recessed in ground luminaires can reach 13W.
This product has rich RGB colors and can flexibly control the color temperature. The product is an aluminum lamp body with good heat dissipation so that the product can run at low temperatures, meeting all touch temperature requirements and environmental requirements. Because this lamp is built-in installation, in order to facilitate the installation and maintenance of the lamp, we have also equipped with high-quality embedded parts for this landscape recessed LED lighting.
.
| LED Light source | High Power LED |
| Light Color | RGB,CW,WW,NW,Red,Green,Blue,Amber |
| Material | SUS316(Lamp cap)+Aluminium(Lamp cup) |
| Optics | 10° / S2O° / 40° / F6O° |
| Power | 12W |
| Power supply | N/A |
| Dimention | D175X51 |
| Weight | 1.7KG |
| IP Rating | IP67 |
| Approvals | CE,RoHS,IP |
| Ambient temperature | -20°C 2 +45°C |
| Average life | 5O,OOOHrs |
| Accessories(Optional) | Yes |
| Applications | Indoor/Outdoor/Landscape |
GL120 GROUND LIGHT
| Model No. | LED Brand | Color | Beam | PowerMode | Input | Wiring | Cable | Power | Luminous Flux | Dimention | DrillSize |
| GL120 | CREE | CW,WW, NW,Red Green,Blue,Amber | 10/S20/40/F60 | Constant current | 350mA | Series | 3M 2X0.75mm² Cable | 12W | 1300LM | D175X51 | D155 |
| GL120D | CREE | CW,WW, NW,Red Green,Blue,Amber | 10/S20/40/F60 | Constant voltage | 24VDC | Parallel | 3M 2X0.75mm² Cable | 13W | 1300LM | D175X51 | D155 |
| GL120DM | OSRAM | CW,WW, NW.Red Green,Blue,Amber | 120 | Constant voltage | 24VDC | Parallel | 3M 2X0.75mm² Cable | 12W | 650LM | D175X51 | D155 |
| GL120RGB | CREE | 4R+4G+4B | 10/S20/40/F60 | Constant current | 350mA | Series | 2x3M 4X0.5mm² Cable | 12W | N/A | D175X51 | D155 |
| GL120DMX-RGB | CREE | 4R+4G+4B | 10/S20/40/F60 | Constant voltage | 4VDCDMX Controller | Parallel | 1.1M 4X0.5mm² Cable | 13W | N/A | D175X51 | D155 |
| GL120DMX-RGB | Edison | RGB(Fullcolor) | 10/S20/40/F60 | Constant voltage | 24VDC DMX Controller | Parallel | 1.1M 4X0.5mm² Cable | 13W | N/A | D175X51 | D155 |
| GL120DMX-RGBW | Edison | RGBW(Fullcolor) | 10/S20/40/F60 | Constant voltage | 24VDCDMX Controller | Parallel | 1.1M 4X0.5mm²Cable | 13W | N/A | D175X51 | D155 |
| DMX decoder in built | *IES Data support. | ||||||||||
