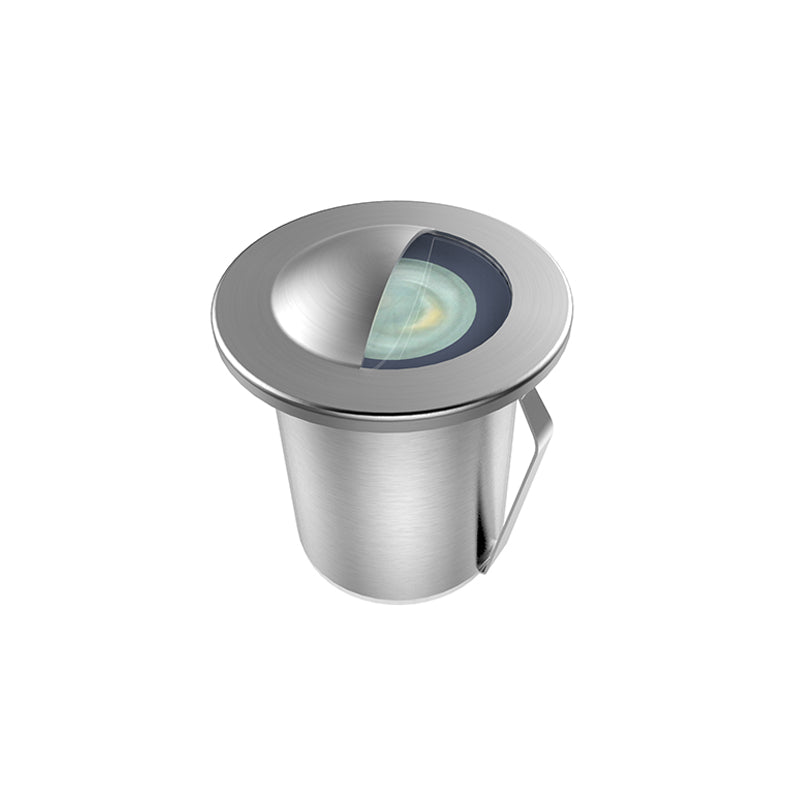

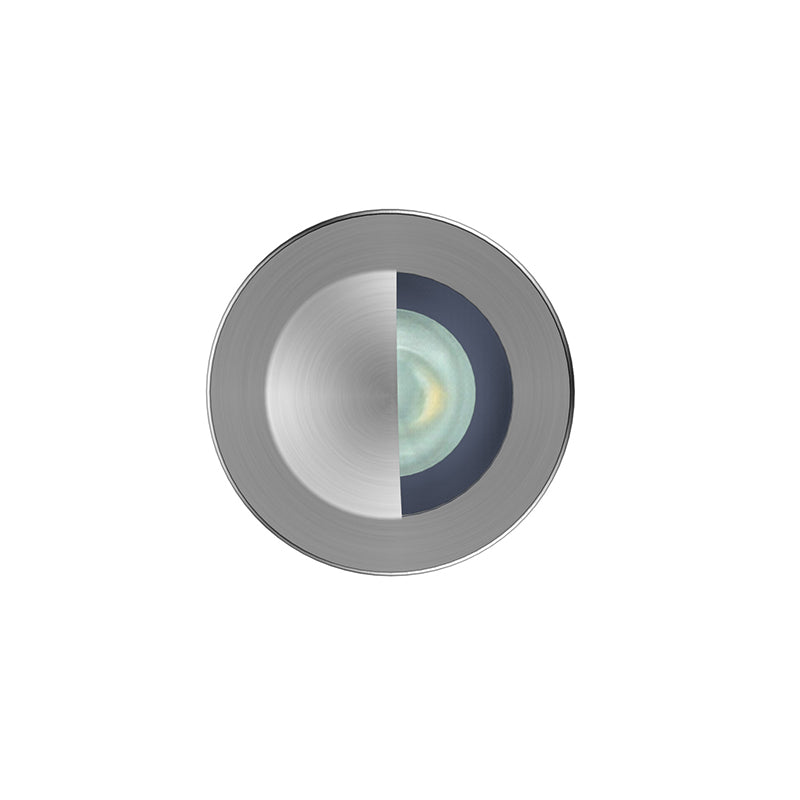

In-Ground GL119CT

In-Ground GL119CT

Miniature Eye-Lid fixture complete with integral CREE LED package And 20/60 degree bean options.Tempered glass, marine grade 316 Stainless Steel option with construction rated to IP68 with Eye-Lid Design for asymmetric light emission.Product footprint of 41.5mm diameter ensures versatile application.Inline driver options include switched, 1-10V and DALI dimmable solutions. The metal outdoor light fixture is easy to control, can realize the color changing function, high brightness, low energy consumption, and soft light. The product design takes anti-glare treatment into account, and the lamp efficiency is greater than 85%. Excellent sealing performance. High-strength tempered glass, strong light transmittance and strong load-bearing capacity.

All solid screws are made of 316 stainless steel, with individual screw hole design to ensure the safety of the product and avoid the risk of being stolen. The face and eye design makes the appearance of the product more distinctive. It can reduce the glare caused by the lamp while bringing a sense of design, so that every detail of the design is practical and beautiful. It is mostly used for column lighting and side wall installation. Can be used as outdoor ground lights, led exterior wall lights, in ground landscape lights, garden street lights.

LED Light source High Power LED
Light Color CW,WW,NW,Red,Green,Blue.Amber
Material SUS316
Optics S2O° / F6O°
Power 1W
Power supply N/A
Dimention D41.5X48
Weight 14Og
IP Rating IP68
Approvals CE.RoHS,IP
Ambient temperature -2O°C +45°C
Average life 5O,OOOHrs
Accessories(Optional). Yes
Applications Indoor/Outdoor/Landscape/Submersible

GL119CT GROUND LIGHT

MODEL NO. LED Brand Color BEAM PowerMode Input Wiring Cable Power Luminous Flux Dimention DrillSize
GL119CT CREE CW,WW, NW, Red Green,Blue,Amber S20/F60 Constant current 350mA Series 1.1M 2X0.4mm² Cable 1W 100LM D41.5X48 D33
GL119CTD CREE CW,WW, NW, Red Green,Blue,Amber S20/F60 Constant voltage 24VDC Parallel 1.1M 2X0.4mm² Cable 1.3W 100LM D41.5X48 D33
*IES Data support.

GL119CT-1

GL119CT-2
