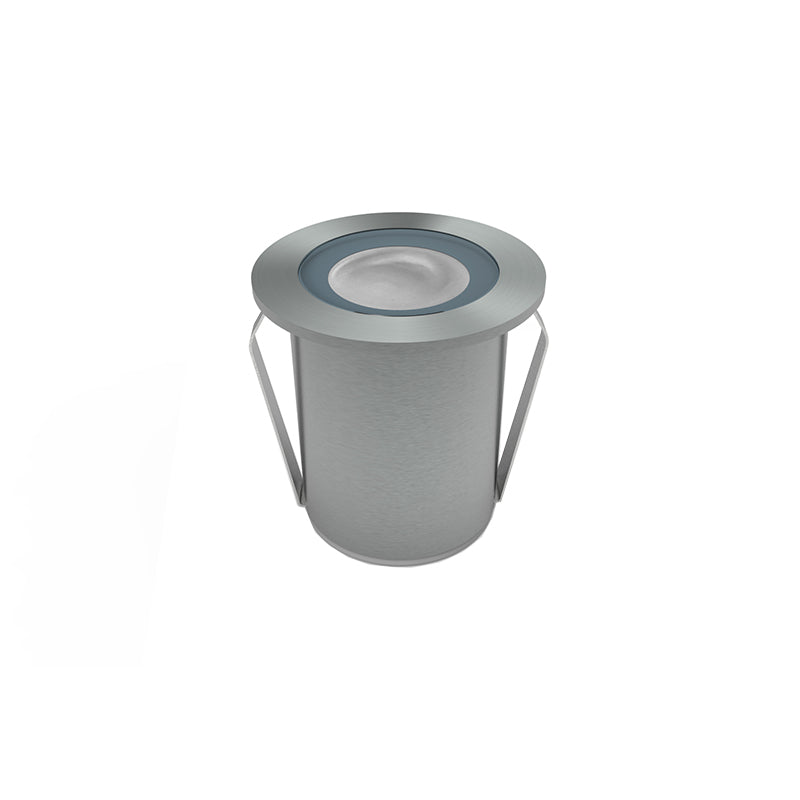

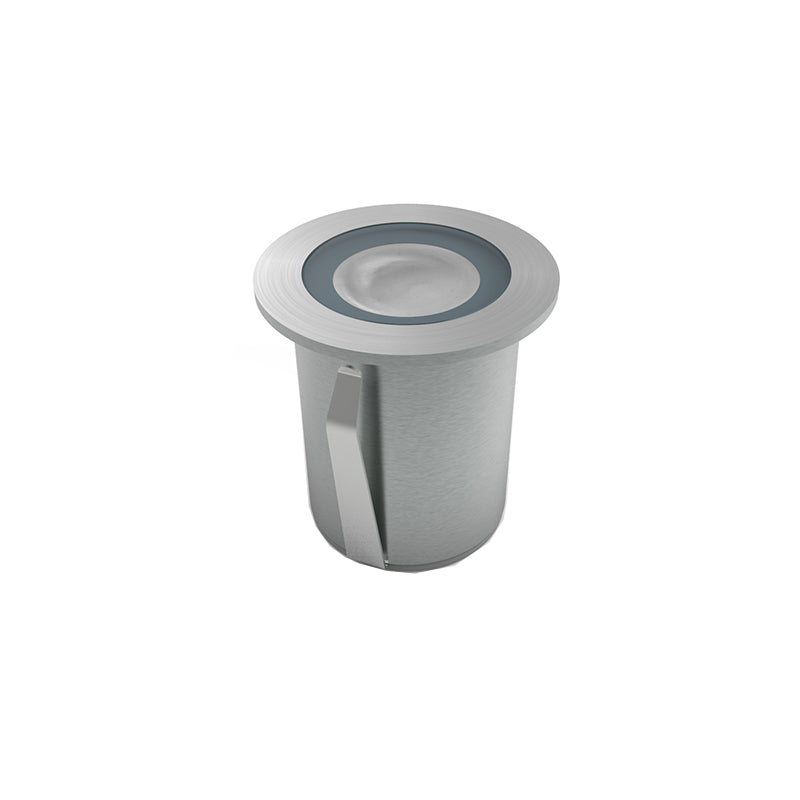

In-Ground GL119
In-Ground GL119
Miniature recessed fixture complete with integral CREE LED package.Tempered glass.marine grade 316 Stainless Steel Option with construction rated to IP68.Product footprint of 40mm diameter ensures versatile application .Inline driver options Include switched, 1-10V and DALI dimmable solutions. Due to the continuous development of this product, this product can currently have multiple light-emitting angles and constant current or constant voltage control methods to choose from according to lighting needs, making the colors more controllable and diverse.
The product can be used buried or underwater. In the process of underwater use, due to the greater influence of external water pressure and moisture corrosion, our protection level for the lamp is IP68. Even if it is used underwater for a long time, the lamp can operate normally. The body of the luminaire is made of corrosion-resistant and oxidation-resistant marine grade stainless steel 316. It is mostly suitable for lighting in areas such as lawns, fences, stairs, and sidewalks.
.
| LED Light source | High Power LED |
| Light Color | CW,WW,NW,Red,Green,Blue,Amber |
| Material | SUS316 |
| Optics | S2O° / F6O° |
| Power | 1W |
| Power supply | N/A |
| Dimention | D40X40 |
| Weight | 14Og |
| IP Rating | IP68 |
| Approvals | CE.RoHS,IP |
| Ambient temperature | -2O°C +45°C |
| Average life | 5O,OOOHrs |
| Accessories(Optional) | Yes |
| Applications | Indoor/Outdoor/Landscape/Submersible |
GL119 GROUND LIGHT
| MODEL NO. | LED Brand | Color | BEAM | PowerMode | Input | Wiring | Cable | Power | Luminous Flux | Dimention | DrillSize |
| GL119 | CREE | CW.WW, NW,Red Green,Blue,Amber | S20/F60 | Constant current | 350mA | Series | 1.1M 2X0.4mm²Cable | 1W | 100LM | D40X40 | D33 |
| GL119D | CREE | CW,WW, NW,Red Green,Blue,Amber | S20/F60 | Constant voltage | 24VDC | Parallel | 1.1M 2X0.4mm²Cable | 1.3W | 100LM | D40X40 | D33 |
| *IES Data support. | |||||||||||
