In-Ground GL118T
In-Ground GL118T

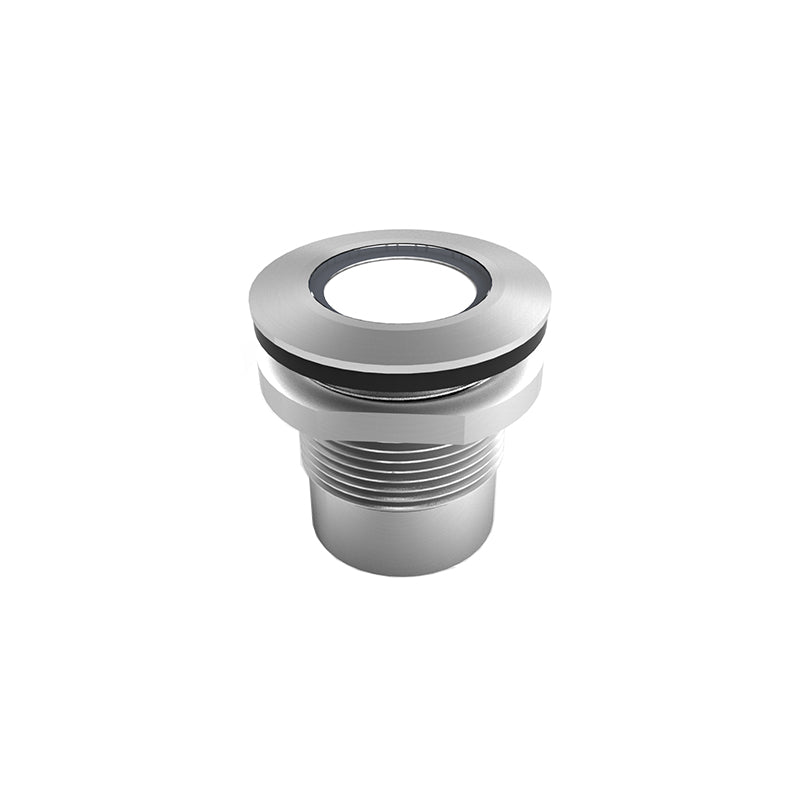

Miniature recessed fixture complete with integral CREE LED package.Tempered glass,frosted optic serves to minimize glare coupled with a diffuse beam distribution.Marine Grade 316 Stainless Steel option with construction rated to IP68.Bronze option.Product footprint of 36mm diameter ensures versatile application. This model uses precise thread technology to do thread processing on the lamp body part of the product. The threaded design makes the lamp body look more convenient and at the same time convenient to install and take out the product, and at the same time it is not easy to be stolen. At the same time, rubber pads are added on the opposite side of the cover, which greatly enhances the abrasion resistance and aesthetics of the product. This product uses a 120° angle, which is perfect to avoid glare, even if you look directly at it, there will be no discomfort.
We also have brass moulds for you to choose from this inround light fixtures. It is one of the best choices for outdoor lighting. This high quality landscape lighting can be used for residential landscape lighting, industrial lighting, LED deck lights, LED pathway lights, swimming pool LED lights and so on.
| LED Light source | LED |
| Light Color | RGB,CW.WW,NW,Red,Green,Blue,Amber |
| Material | SUS316 / Brass |
| Optics | 120° |
| Power | 1W |
| Power supply | N/A |
| Dimention | D36X37 |
| Weight | 280g |
| IP Rating | IP68 |
| Approvals | CE.RoHS,IP |
| Ambient temperature | -20°C +45°C |
| Average life | 50,000Hrs |
| Accessories(Optional) | Yes |
| Applications | Indoor/Outdoor/Landscape/Submersible |
GL118T GROUND LIGHT

| MODEL NO. | LED Brand | Color | BEAM | PowerMode | Input | Wiring | Cable | Power | Luminous Flux | Dimention | DrillSize | Material |
| GL118T | OSRAM | CW,WW, NW,Red Green,Blue,Amber | 120 | Constantvoltage | 12/24VDC | Parallel | 3M 2X0.75mm² Cable | 1W | 20LM | D36X37 | D29 | SUS316 |
| GL118TAB | OSRAM | CW.WW, NW,Red Green,Blue,Amber | 120 | Constantvoltage | 12/24VDC | Parallel | 3M 2X0.75mm² Cable | 1W | 20LM | D36X37 | D29 | Brass |
| GL118TRGB | Edison | RGB | 120 | Constantvoltage | RGB24VDC | Parallel | 1.1M 4X24AWG Cable | 1W | N/A | D36X37 | D29 | SUS316 |
| GL118TAB RGB | Edison | RGB | 120 | Constantvoltage | RGB24VDC | Parallel | 1.1M 4X24AWG Cable | 1W | N/A | D36X37 | D29 | Brass |
| *IES Data support. | ||||||||||||
