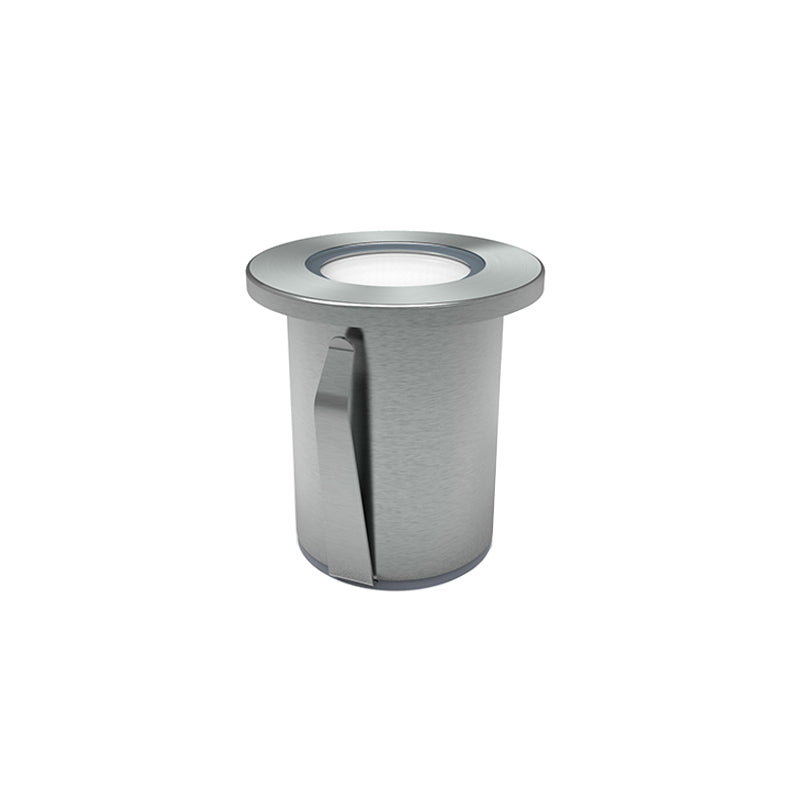

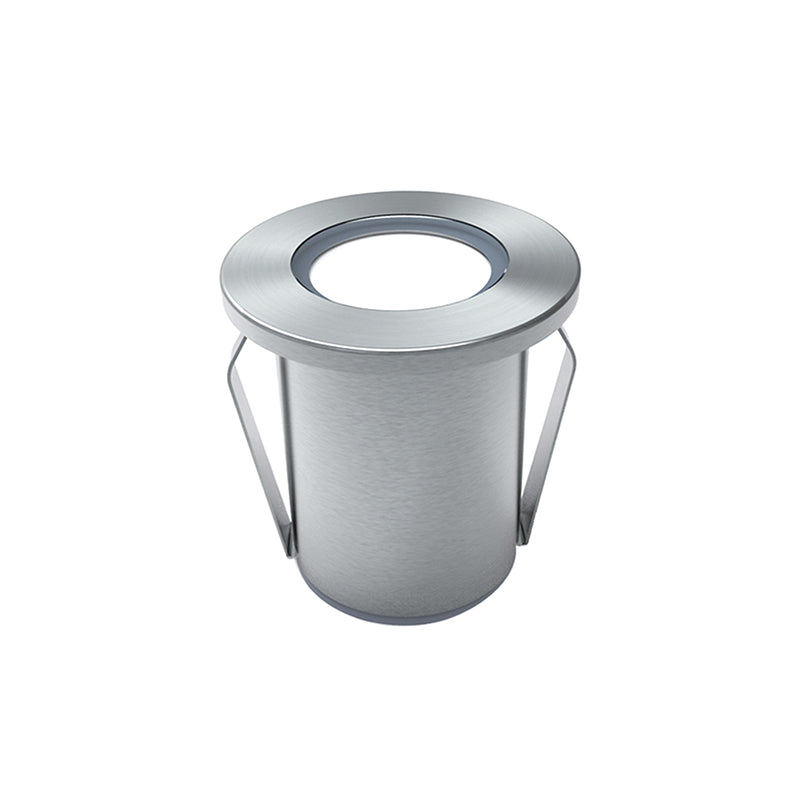

In-Ground GL118
In-Ground GL118
Miniature recessed fixture complete with integral CREE LED package.Tempered glass .frosted optic serves to minimize glare coupled with a diffuse beam distribution.Marine Grade 316 Stainless Steel option with construction rated to IP68. Product footprint of 36mm diameter ensures versatile application. The acrylic diffuser spreads the light spots perfectly, ensuring that human eyes can look directly at the soft light source; the shrapnel design of the lamp body makes the product more suitable for the embedded parts, greatly reducing the difficulty of fixing the lamp to the embedded part, and making the lamp installation Safer and more assured.

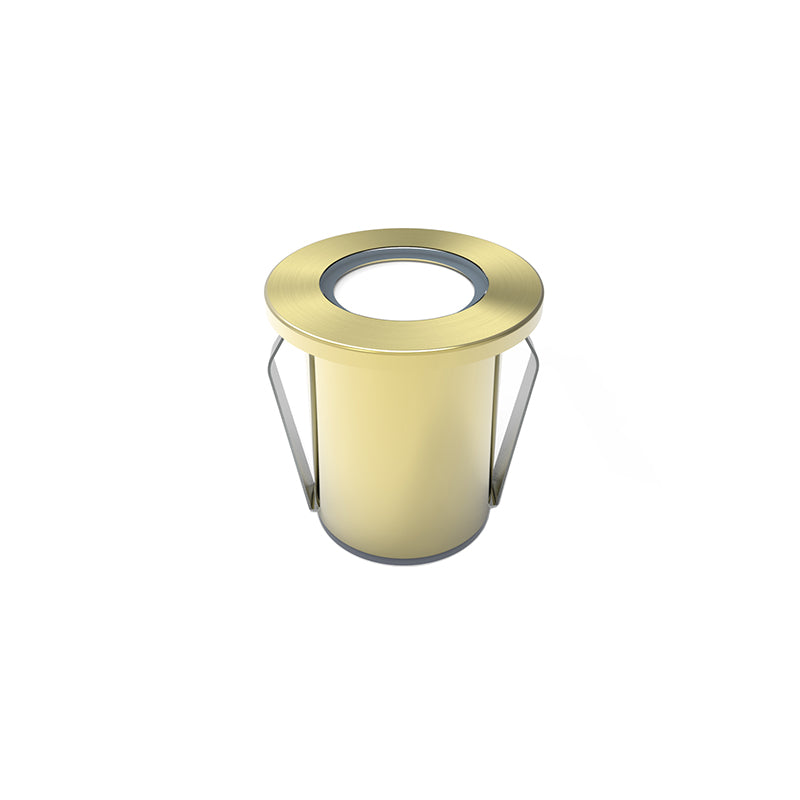

This product uses a 120° angle, which is perfect to avoid glare, even if you look directly at it, there will be no discomfort. We also have brass molds for you to choose from for this inground light fixtures. The product size is very light and cost-effective. In addition, this marine grade 316 stainless steel can also be exposed to sea water without being corroded.
.
| LED Light source | LED |
| Light Color | RGB,CW.WW,NW,Red,Green,Blue,Amber |
| Material | SUS316 / Brass |
| Optics | 120° |
| Power | 1W |
| Power supply | N/A |
| Dimention | D36X37 |
| Weight | 260g |
| IP Rating | IP68 |
| Approvals | CE.RoHS,IP |
| Ambient temperature | -20°C 2 +45°C |
| Average life | 5O,OOOHrs |
| Accessories(Optional) | Yes |
| Applications | Indoor/Outdoor/Landscape/Submersible |
GL118 GROUND LIGHT

| MODEL NO. | LED Brand | Color | BEAM | PowerMode | Input | Wiring | Cable | Power | Luminous Flux | Dimention | DrillSize | Material |
| GL118 | OSRAM | CW,WW, NW,Red Green,Blue,Amber | 120 | Constant voltage | 12/24VDC | Parallel | 3M 2X0.75mm² Cable | 1W | 20LM | D36X37 | D29 | SUS316 |
| GL118AB | OSRAM | CW,WW, NW,Red Green,Blue,Amber | 120 | Constant voltage | 12/24VDC | Parallel | 3M 2X0.75mm² Cable | 1W | 20LM | D36X37 | D29 | Brass |
| GL118RGB | EDISON | RGB | 120 | Constant voltage | RGB24VDC Parallel | Parallel | 1.1M 4X24AWG Cable | 1W | N/A | D36X37 | D29 | SUS316 |
| GL118AB RGB | EDISON | RGB | 120 | Constant voltage | RGB24VDC Parallel | Parallel | 1.1M 4X24AWG Cable | 1W | N/A | D36X37 | D29 | Brass |
| *IES Data support. | ||||||||||||
