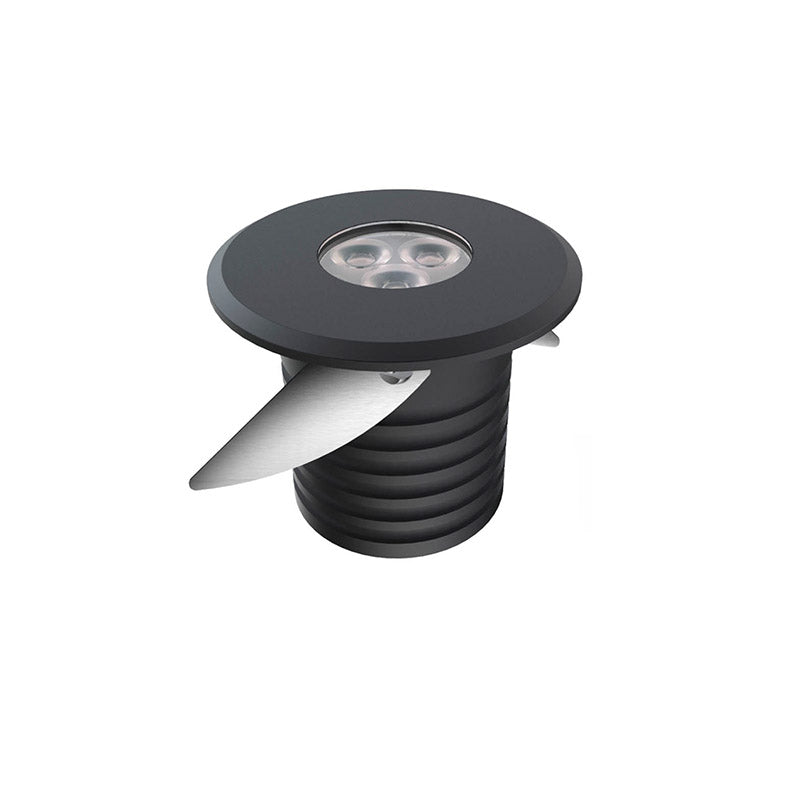

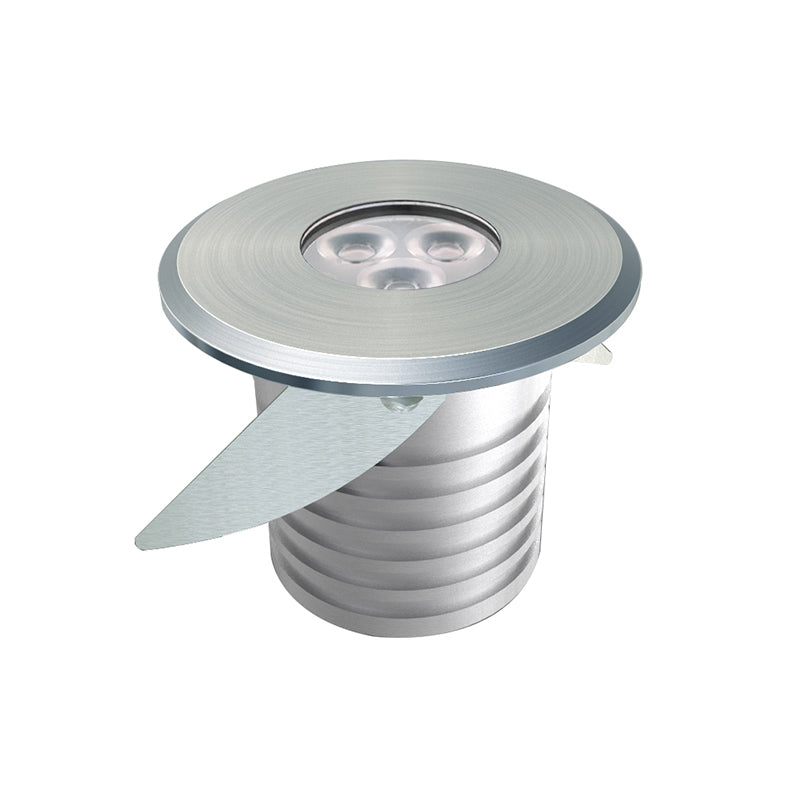

In-Ground GL117
In-Ground GL117
Tempered glass,marine grade 316 stainless steel bezel panel with aluminum lamp body.integral CREE LED package .Product Footprint of 60mm diameter ensures versatile application.10/45 degree beam as standard,product functions with 350mA constant current driver.lnline driver options include switched 1-10Vand DALI dimmable solutions. This exterior walkway lights has two design structures of lamp beads. For GL117-1W, the structure of the lamp bead is made relatively deep, and the black reflector is added. When the lamp is buried on the ground, people will not feel dizzy when walking by. GL117 has three lamp beads and can be used as DMX control mode. Due to the combination of the two materials, the cost-effectiveness of the product is the best.
Buried lights are mostly suitable for lawns, green spaces, water features, steps and park roads. The protection level reaches IP67, suitable for various harsh environments, and can be used stably outdoors for a long time. The shell material SUS316 successfully passed the salt spray corrosion resistance test.
.
| LED Light source | High Power LED |
| Light Color | CW,WW,NW,Red,Green,Blue,Amber |
| Material | SUS316(Lamp cap)+ Aluminium(Lamp cup) |
| Optics | 10° / S2O° / 45° / F60° |
| Power | 3W |
| Power supply | N/A |
| Dimention | D60X50 |
| Weight | N/A |
| IP Rating | IP67 |
| Approvals | CE.RoHS,IP |
| Ambient temperature | -20°C +45°C |
| Average life | 5O,OOOHrs |
| Accessories(Optional) | N/A |
| Applications | Indoor/Outdoor |
GL117 GROUND LIGHT
| MODEL NO. | LED Brand | Color | Beam | PowerMode | Input | Wiring | Cable | Power | Luminous Flux | Dimention | DrillSize |
| GL117 | CREE | CW,WW, NW,Red Green,Blue,Amber | 10/S20/45/F60 | Constant current | 350mA | Series | 1.1M 2X0.4mm² Cable | 3W | 220LM | D60X50 | D50 |
| GL117D | CREE | CW,WW, NW,Red Green,Blue,Amber | 10/S20/45/F60 | Constant voltage | 24VDC | Parallel | 1.1 M2X0.4mm² Cable | 3.5W | 220LM | D60X50 | D50 |
| GL117DMX | CREE | CW,WW, NW,Red Green,Blue,Amber | 10/S20/45/F60 | Constant voltage | DMX24VDC | Parallel | 1.1M 5X0.5mm² Cable | 3.5W | 220LM | D60X50 | D50 |
| DMX decoder in built | *IES Data support. | ||||||||||
