In-Ground GL116SQ
In-Ground GL116SQ

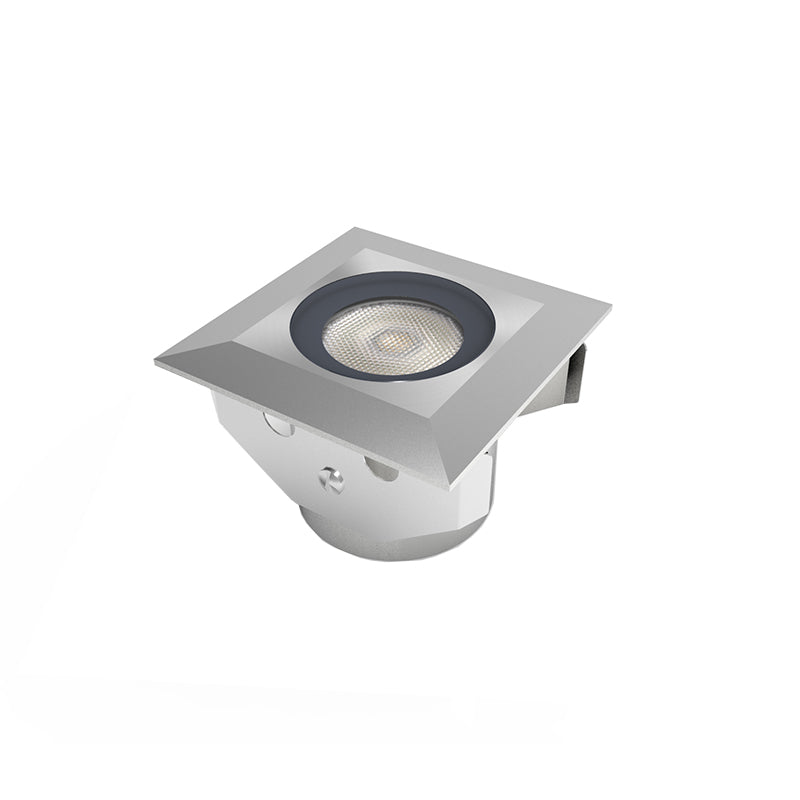

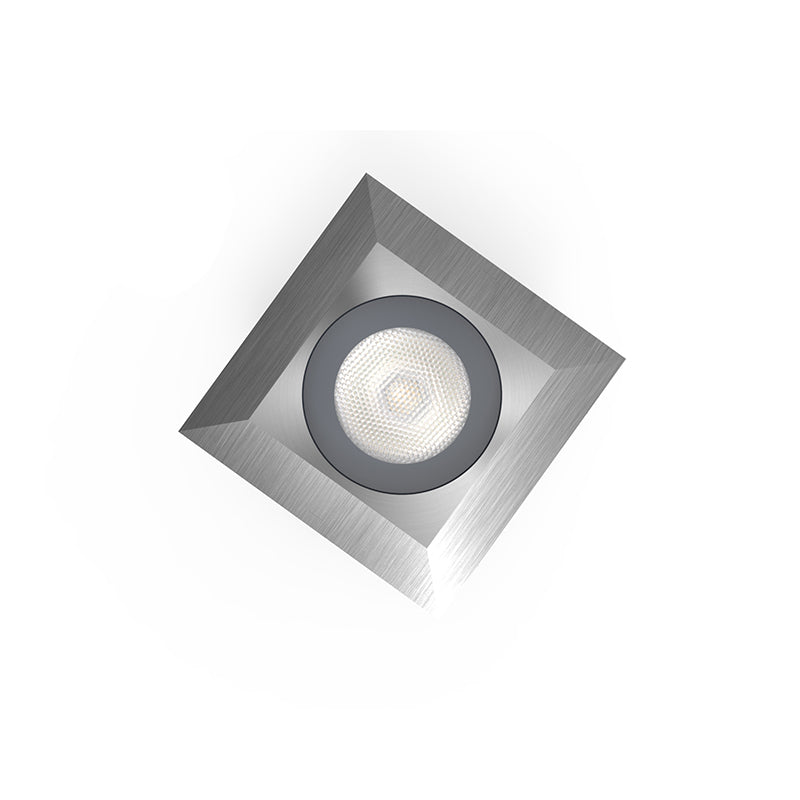

Square recessed fixture complete with integral CREE LED package and 12/45 degree beam options. Tempered glass, marine grade 316 Stainless Steel option with construction rated to IP68. Small Product footprint ensures versatile application. Inline driver options include switched, 1-10V and DALI dimmable solutions. GL112SQ, GL119SQ, GL116SQ, GL140SQ, GL150SQ is a family system ranging from mini to large. The shape of the cap can be round or square, and the power can also be selected from small to large.
For the lamp cap, the processing technology of bevel water chestnut treatment is positive and exquisite, and you will be amazed when you see the actual sample. The beaded lens helps reduce glare. This light can be used as RGB architecture lighting, landscape in-grade lights, stainless steel pendant lighting, waterproof outdoor lights, bathroom lighting, model outdoor wall lighting applications.
.
| LED Light source | High Power LED |
| Light Color | RGB,CW.WW,NW,Red,Green,Blue,Amber |
| Material | SUS316 |
| Optics | S12° / F45° |
| Power | 1W |
| Power supply | N/A |
| Dimention | 65x65x45 |
| Weight | 490g |
| IP Rating | IP68 |
| Approvals | CE.RoHS,IP |
| Ambient temperature | -20°C +45°C |
| Average life | 5O,OOOHrs |
| Accessories(Optional) | Yes |
| Applications | Indoor/Outdoor/Landscape/Submersible |
GL116SQ GROUND LIGHT
| Model No. | LED Brand | Color | Beam | PowerMode | Input | Wiring | Cable | Power | Luminous Flux | Dimention | DrillSize |
| GL116SQ | CREE | CW.WW, NW,Red Green,Blue,Amber | S12/F45 | Constant current | 350mA | Series | 3M 2X0.75mm² Cable | 1W | 100LM | 65x65x45 | D50 |
| GL116SQD | CREE | CW,WW, NW,Red Green,Blue,Amber | S12/F45 | Constant voltage | 24VDC | Parallel | 3M 2X0.75mm² Cable | 1.3W | 100LM | 65x65x45 | D50 |
| GL116SQ-RGB | Edison | RGB | 45 | Constant current | 350mA | Series | 2x3M 4X0.5mm² Cable | 3W | N/A | 65x65x45 | D50 |
| GL116SQ-DMX-RGB | Edison | RGB | S12/F45 | Constant voltage | 24VDC DMX Controller | Parallel | 1.1M 4X0.5mm² Cable | 3.5W | N/A | 65x65x45 | D50 |
| DMX decoder in built | *IES Data support. | ||||||||||
