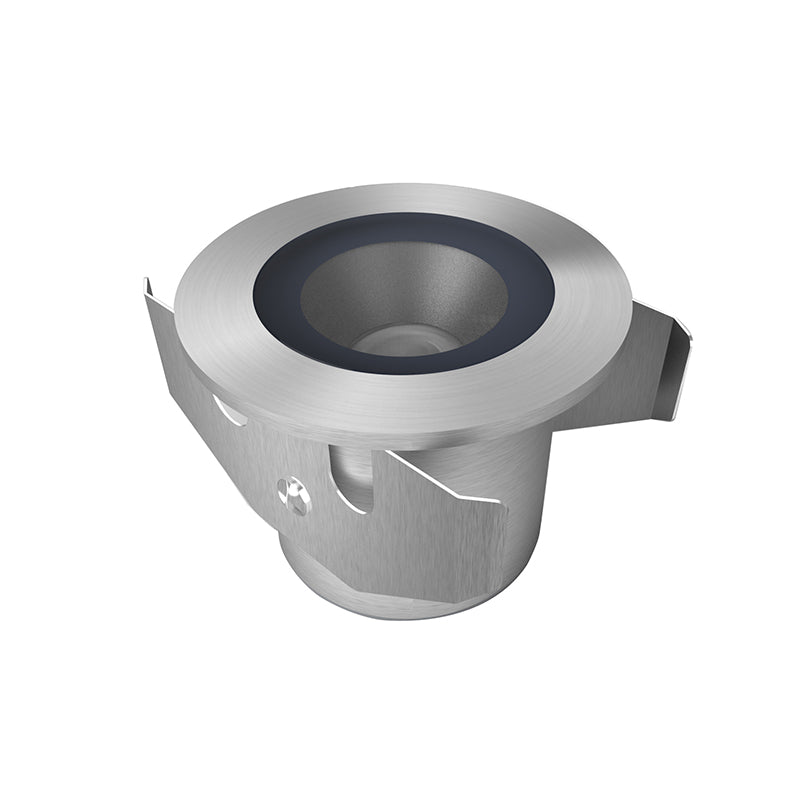

In-Ground GL116H
In-Ground GL116H
Miniature recessed fixture complete with integral CREE LED Package and 20/60 degree beam options. Tempered glass. Marine grade 316 Stainless Steel option with construction Rated to IP68 Recessed light source and black baffle serve to Minimize glare.Product footprint of 60mm diameter ensures versatile application. Inline driver options include switched,1-10V and DALI dimmable solutions. This is an extension of the GL116 family series. Built-in light source, the design of the lamp bead is deeply buried and equipped with a black reflector. The unique anti-glare design makes the light no longer dazzling and reduces the vertigo caused by the lamp. There are 1W and 3W power options. The design of the internal waterproof structure and heat dissipation design of the product have been fully considered.
The family series of GL116 is promoted as a star product of EURBORN, and has been unanimously received by customers at home and abroad. The size of the opening size is 50mm. This light can be used as spot lighting, garden lighting, deck lighting, pathway lighting, wall mounted luminaires, architecture lighting, LED underwater pool lights.
.
| LED Light source | High Power LED |
| Light Color | CW.WW,NW,Red,Green,Blue,Amber |
| Material | SUS316 |
| Optics | S2O° / F6O° |
| Power | 1W |
| Power supply | N/A |
| Dimention | D60x45 |
| Weight | 465g |
| IP Rating | IP68 |
| Approvals | CE,RoHS,IP |
| Ambient temperature | -2O°C ~ +45°C |
| Average life | 5O,OOOHrs |
| Accessories(Optional) | Yes |
| Applications | Indoor/Outdoor/La ndsca pe/Su bmersi ble |
GL116H GROUND LIGHT

| Model No. | LED Brand | Color | Beam | PowerMode | Input | Wiring | Cable | Power | Luminous Flux | Dimention | DrillSize |
| GL116H | CREE | CW,WW, NW, Red Green,Blue,Amber | S20/F60 | Constant current | 350mA | Series | 3M 2X0.75mm² Cable | 1W | 100LM | D60X45 | D50 |
| GL116HD | CREE | CW,WW, NW, Red Green,Blue,Amber | S20/F60 | Constant voltage | 24VDC | Parallel | 3M 2X0.75mm² Cable | 1.3W | 100LM | D60X45 | D50 |
| *IES Data support. | |||||||||||
