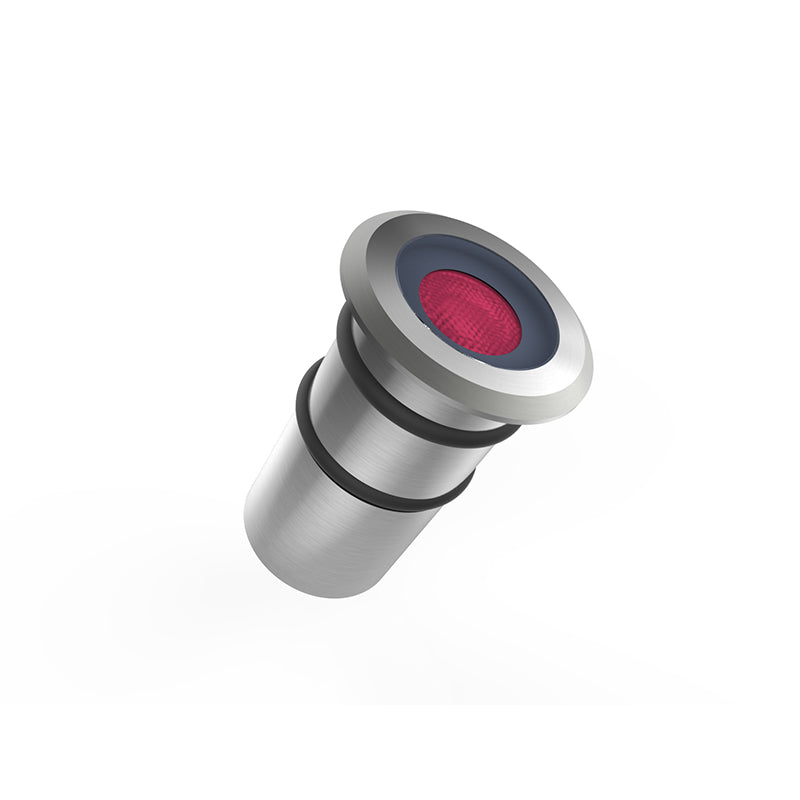

In-Ground GL112
In-Ground GL112
Miniature recessed fixture complete with integral CREE LED Package and 20/60 degree beam options.Marine Grade 316 Stainless Steel option with construction rated to IP68.Tempered glass,with patented cable waterproof design.Product footprint of 23mm diameter ensures versatile application.Inline driver options Include switched, 1-10V and DALI dimmable solutions. Mini buried lights make the design more ingenious. They can be neatly arranged to form a certain symbol, or they can be scattered to make the design more artistic.
It can be installed on the ceiling to make the environment no longer so monotonous. It can also be installed on a large-area exterior wall of a commercial building project, and also can be used as a staircase step light. Due to the IP68 design, products can also be installed in swimming pools and ground squares, so that the stars on the ground or on the ceiling or underwater can also be so shining and warm. The lamp beads are also able to achieve RGB color transformation to set off the building more vividly.
| LED Light source | High Power LED |
| Light Color | RGB,CW.WW,NW,Red,Green,Blue,Amber |
| Material | SUS316 |
| Optics | S2O°/F6O° |
| Power | 1W |
| Power supply | N/A |
| Dimention | D23X40 |
| Weight | 60g |
| IP Rating | IP68 |
| Approvals | CE.RoHS,IP |
| Ambient temperature | -20°C ~ +45°C |
| Average life | 50,000Hrs |
| Accessories(Opfional) | Yes |
| Applications | Indoor/Outdoor/Landscape/Submersible |
GL112 GROUND LIGHT
| Model No. | LED Brand | Color | Beam | PowerMode | Input | Wiring | Cable | Power | Luminous Flux | Dimention | DrillSize |
| GL112 | CREE | CW.WW, NW,Red Green.Blue,Amber | S20/F60 | Constant current | 350mA | Series | 1.1M 2X0.4MM² Cable | 1W | 100LM | D23X40 | D19 |
| GL112D | CREE | CW.WW, NW,Red Green,Blue,Amber | S20/F60 | Constant voltage | 24VDC | Parallel | 1.1M 2X0.4MM² Cable | 1.3W | 100LM | D23X40 | D19 |
| GL112M | CREE/OSRAM | CW,WW, NW,Red Green,Blue,Amber | 120 | Constant voltage | 12VDC | Parallel | 1.1M 2X0.4MM² Cable | 0.5W | 30LM | D23X40 | D19 |
| GL112RGB | Edison | RGB | 120 | Constant voltage | 12VDC | Parallel | 1.1M 4X24AWG Cable | 0.5W | N/A | D23X40 | D19 |
| *IES Data support. | |||||||||||
