In-Ground EU1968
In-Ground EU1968

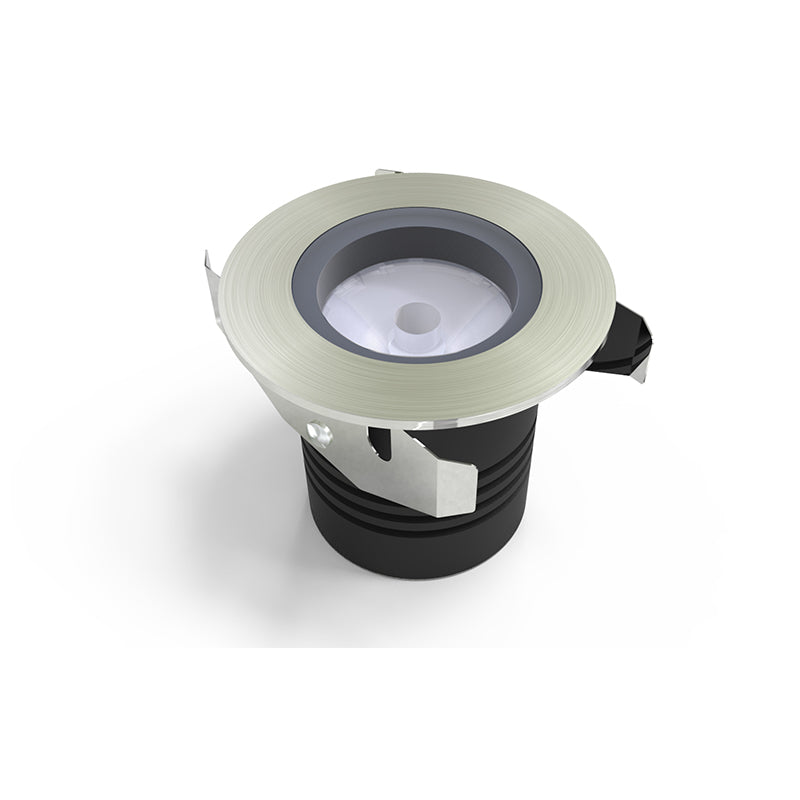

Marine grade 316 stainless steel panel with aluminum lamp body. This fixture complete with integral CREE led package. Tempered glass, construction rated to IP67. Since the body of this lamp is aluminum alloy, the heat dissipation of aluminum is better than that of stainless steel, so the heat dissipation performance of this lamp is higher than that of the whole stainless steel lamp. This model uses a special lens to optimize the light effect of the product and achieve a very personalized.
The light-emitting angle of this lamp is a narrow angle, and the light-emitting effect is similar to a beautiful light beam, which can realize commercial lighting fixtures for buildings according to the choice of color temperature. In 2020, we used a large number of this model in one of the large-scale five-star building projects in Qianhai Bay, Shenzhen, which perfectly complemented the personality concept of the building and won international awards.
.
| LED Light source | High Power LED |
| Light Color | CW,WW,NW |
| Material | SUS316(Lamp cap)+Aluminium(Lamp cup) |
| Optics | 20° / 60° |
| Power | 6W |
| Power supply | N/A |
| Dimention | D6OXH53 |
| Weight | N/A |
| IP Rating | IP67 |
| Approvals | CE.RoHS |
| Ambient temperature | -20°C ~ +45°C |
| Average life | 50,000Hrs |
| Accessories(Optional) | Yes |
| Applications | Indoor/Outdoor/Landscape |
EU1968 GROUND LIGHT
| Model No. | LED Brand | Color | Beam | PowerMode | Input | Wiring | Cable | Power | Luminous Flux | Dimention | DrillSize |
| EU1968 | CREE | CW,WW,NW | 3° | Constant current | 600mA@11.3VDC | Serles | 3M2X0.75mm² Cable | 7W | 600LM | D90XH75 | D70 |
| EU1968D | CREE | CW,WW,NW | 3° | Constant voltage | 24VDC | Parallel | 3M2X0.75mm² Cable | 7.5W | 600LM | D90 XH75 | D70 |
| EU1968DMX | CREE | CW,WW,NW | 3° | Constant voltage | 24VDC | Parallel | 3M4X0.5mm² Cable | 7.5W | 600LM | D90XH75 | D70 |
| *IES Data support. | |||||||||||
