In-Ground EU1965H
In-Ground EU1965H

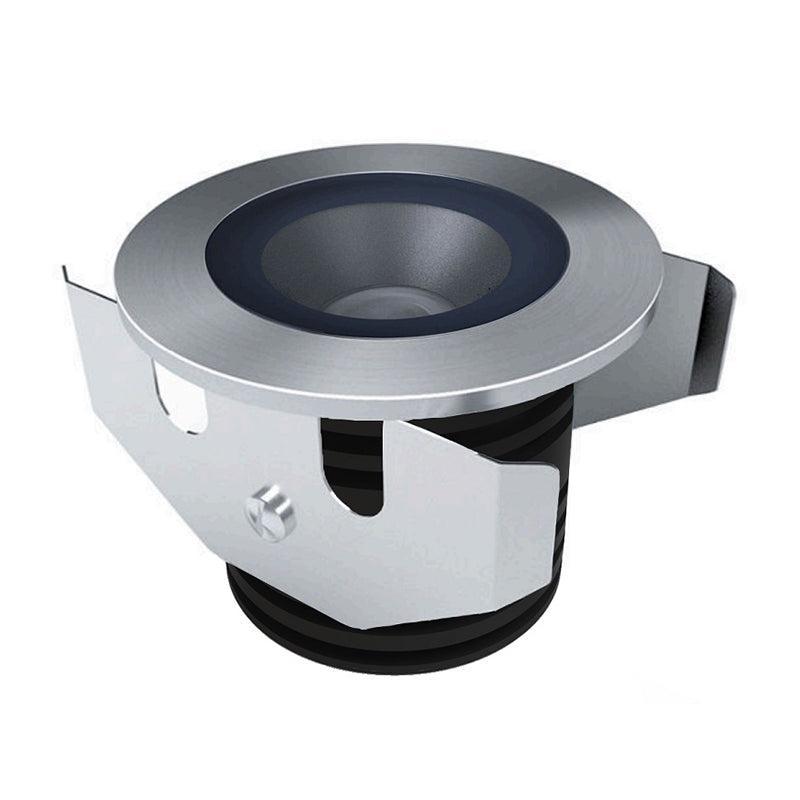

Marine grade 316 stainless steel panel with aluminum lamp body. This fixture complete with integral CREE led package. Tempered glass, construction rated to IP67. Recessed light source and black baffle serve to minimize glare. This lamp is exquisite and compact, composed of a stainless steel face cover and an aluminum alloy lamp body, so this lamp not only guarantees the excellent heat dissipation characteristics, but also ensures the beautiful appearance.
The lamp beads of this lamp are placed relatively deep, and the black anti-glare ring is used, which can reduce the glare of the product to a minimum, thereby greatly reducing the impact on human eyes when installed on the ground surface or where people pass by on the sidewalk. Stimulus. Combining the product size and product performance power, it can be installed in grilles, ground squares, stairs and column lighting, the most cost-effective choice.
| LED Light source | High Power LED |
| Light Color | CW,WW,NW |
| Material | SUS316(Lamp cap)+Aluminium(Lamp cup) |
| Optics | 20° / 60° |
| Power | 6W |
| Power supply | N/A |
| Dimention | D6OXH53 |
| Weight | N/A |
| IP Rating | IP67 |
| Approvals | CE.RoHS |
| Ambient temperature | -20°C ~ +45°C |
| Average life | 50,000Hrs |
| Accessories(Optional) | Yes |
| Applications | Indoor/Outdoor/Landscape |
EU1965H GROUND LIGHT
| Model No. | LED Brand | Color | Beam | PowerMode | Input | Wiring | Cable | Power | Luminous Flux | Dimention | DrillSize |
| EU1965H | CREE | CW,WW,NW | S20/F60 | Constant current | 550mA@11.3VDC | Series | 3M2X0.75mm² Cable | 6W | 500LM | D60XH53 | D50 |
| EU1965HD | CREE | CW,WW,NW | S20/F60 | Constant voltage | 24VDC | Parallel | 3M 2X0.75mm² Cable | 6W | 500LM | D60XH53 | D50 |
| *IES Data support. | |||||||||||
■ Project map
