In-Ground EU1920

In-Ground EU1920

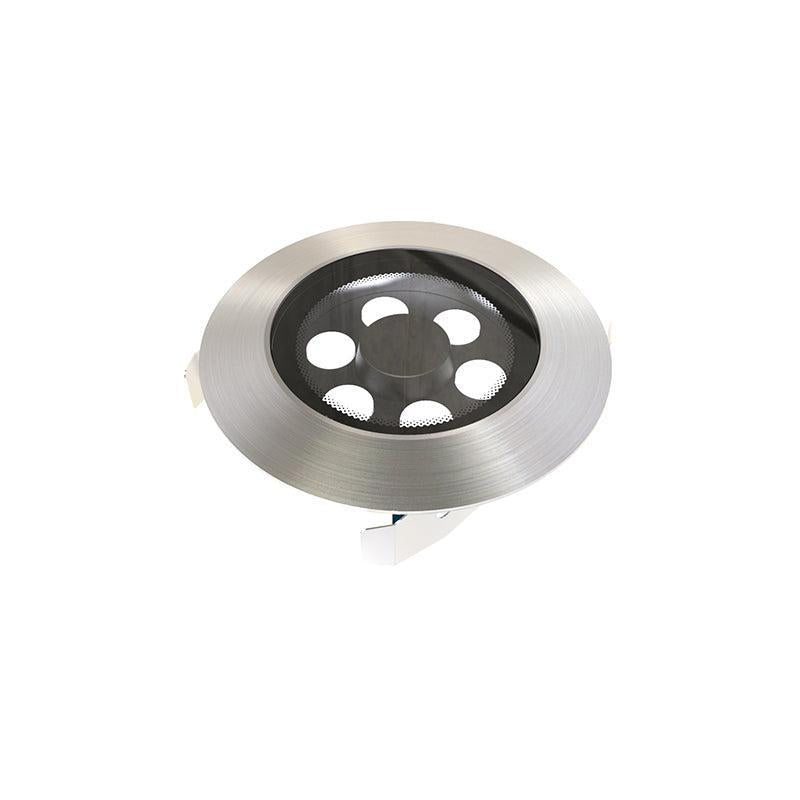

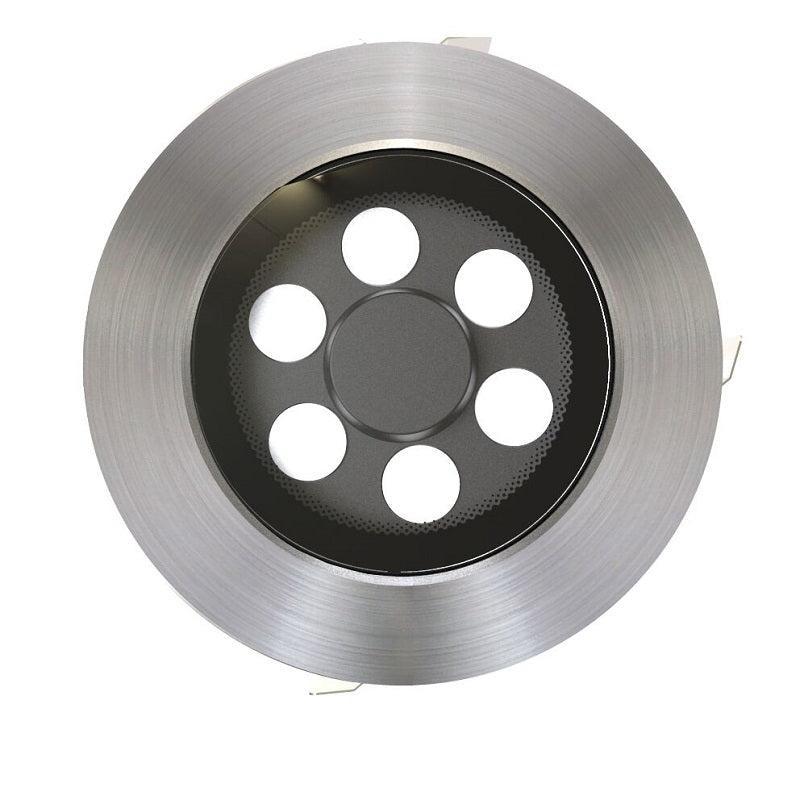

Marine grade 316 stainless steel fixture complete with integral CREE LED package. Fixture rated to IP68. Suitable for the illumination of small/medium trees, building exteriors, columns if the voltage less than 9W. Above 9W, The luminaires may only be operated under water, recessed luminaires for private and public swimming pools. Underwater luminaires in various sizes and light outputs for installation in concrete, foil, metal or synthetic pools. To avoid harmful deposits and dirt on the luminaires, the water must have a neutral pH value and must be free of components that attack metal. It has the advantages of strong corrosion resistance, strong impact resistance, strong light transmittance, and wide light radiation surface.

It has a good waterproof design and can be used underwater for a long time. The power is from 6W to 15W, and multiple light-emitting angles can be customized according to needs. This light makes the color temperature easy to control, so that the color temperature selection is no longer so monotonous. This marine grade stainless steel lights can be used as swimming pool underwater lights, outdoor recessed ground light or path lights.

LED Light source High Power LED
Light Color CW,WW,NW,Red,Green,Blue,Amber
Material SUS316
Optics 10° / 45° (30° / 60°)
Power 6W
Power supply N/A
Dimention D1O7 X H47
Weight 0.8 kg
IP Rating IP68
Approvals CE.RoHS
Ambient temperature -20°C ~ +45°C
Average life 50,000Hrs
Accessories(Optional) N/A
Applications Indoor/Outdoor/Landscape/Submersible

EU1920 GROUND LIGHT

EU1920

PowerMode LED Brand Color Beam PowerMode Input Wiring Cable Power Luminous Flux Dimention DrillSize
EU1920 CREE CW.WW.NW.Red,Green,Blue,Amber S10/F45(30/60) Constant current 350mA Series 3M 2X0.75mm² Cable 6W 500LM D107XH47 D95
EU1920D CREE CW,WW,NW,Red,Green,Blue,Amber S10/F45(30/60) Constant current 24VDC Parallel 3M 2X0.75mm² Cable 6.5W 500LM D107XH47 D95
EU1920DMX CREE CW,WW,NW,Red,Green,Blue,Amber S10/F45(30/60) Constant current 24VDCDMX Controller Parallel 3M 4X0.5mm² Cable 6.5W 500LM D107XH47 D95
EU1920DMX-RGB EDISON RGB S10/F45(30/60) Constant current 24VDCDMX Controller Parallel 3M 4X0.5mm² Cable 6.5W N/A D107XH47 D95
*IES Data support.
