Gl116dmx-ls Ground Light
Gl116dmx-ls Ground Light
| LED LIGHT SOURCE | High Power LED |
| LIGHT COLOR | RGB,CW,WW,NW,Amber,Red,Green.Blue |
| MATERIAL | SUS316 |
| OPTICS | See attached sheet |
| POWER | See attached sheet |
| POWER INPUT | 24VDC DMX Controller |
| DIMENSION | See attached sheet |
| WEIGHT | N/A |
| IP RATING | IP65 |
| APPROVALS | CE.RoHS |
| AMBIENT TEMPERATURE | -2O°C ~ +45°C |
| AVERAGE LIFE | 5O,OOOHrs |
| ACCESSORIES | Constant voltage DMX Controller |
| APPLICATIONS | Courtyards, corridors, squares, etc |
Gl116dmx-ls Ground Light
| Model No. LED Brand | Color |
Beam PowerMode Ii | iput |
Wiring |
Cable |
Power Flux | Luminous |
Dimention |
|||
| GL116DMX-LS | CREE | RGB, CW, WW, NW, Amber, Red, Green, Blue | S12/F45 | Constant voltage | 24VDC DMX Controller |
Parallel | 4X0.5mm2Plug | 6×1 5W | N/A | D60XH45 | D50 |
| GL140DMX-LS | CREE | RGB, CW, WW, NW, Amber, Red, Green, Blue | S20/F60 | Constant voltage | 24VDC DMX Controller |
Parallel | 4X0.5mm2 Plug |
6×3.5W | N/A | D76XH47 | D65 |
| GL166DMX-LS | CREE | RGB, CW, WW, NW, Amber, Red, Green, Blue | S10/F40 | Constant voltage | 24VDC DMX Controller |
Parallel | 4X0.5mm2 Plug |
6×6.5W | N/A | D96XH47 | D85 |
| GL168DMX-LS | CREE | RGB, CW, WW, NW, Amber, Red, Green, Blue | S10/F40 | Constant voltage | 24VDC DMX Controller |
Parallel | 4X0.5mm2 Plug |
6x9W | N/A | D96XH47 | D85 |
| DMX decoder in built | *IES Data support. | ||||||||||

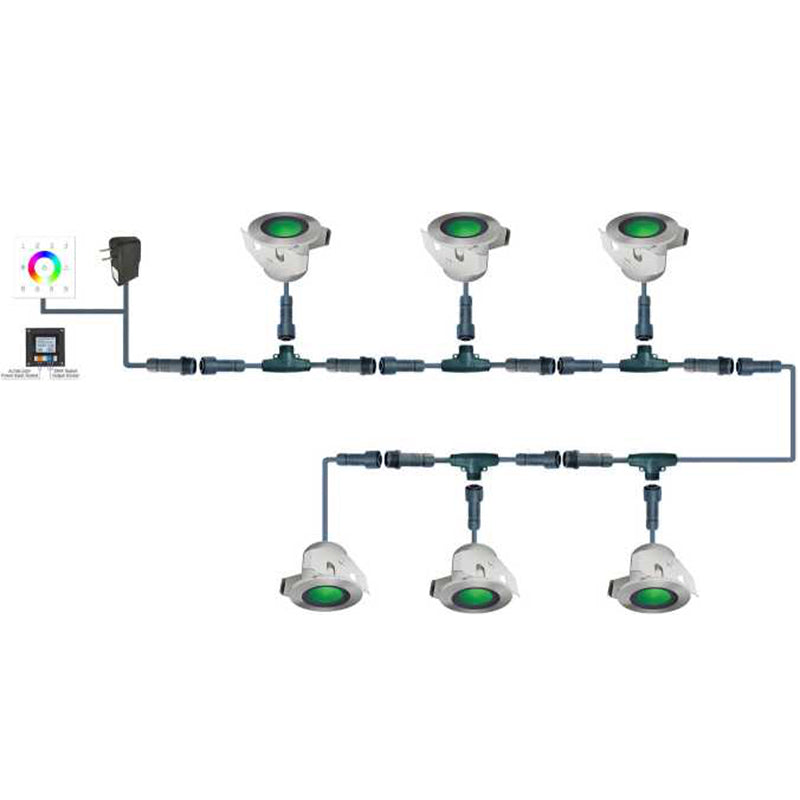

■ Project map
