| LED LIGHT SOURCE | High Power LED |
| LIGHT COLOR | CW,WW,NW,Amber,Red,Green,Blue |
| MATERIAL | SUS316 |
| OPTICS | See attached sheet |
| POWER | See attached sheet |
| POWER INPUT | 24VDC |
| DIMENSION | See attached sheet |
| WEIGHT | N/A |
| IP RATING | IP65 |
| APPROVALS | CE.RoHS |
| ACCESSORIES | Constant voltage Driver |
| APPLICATIONS | Courtyards, corridors, squares, etc |
GL116D-LS Ground Light
| Model No. | LED Brand | Color | Beam | PowerMode | Input | Wiring | Cable | Power | Luminous Flux | Dimention | DrillSize I |

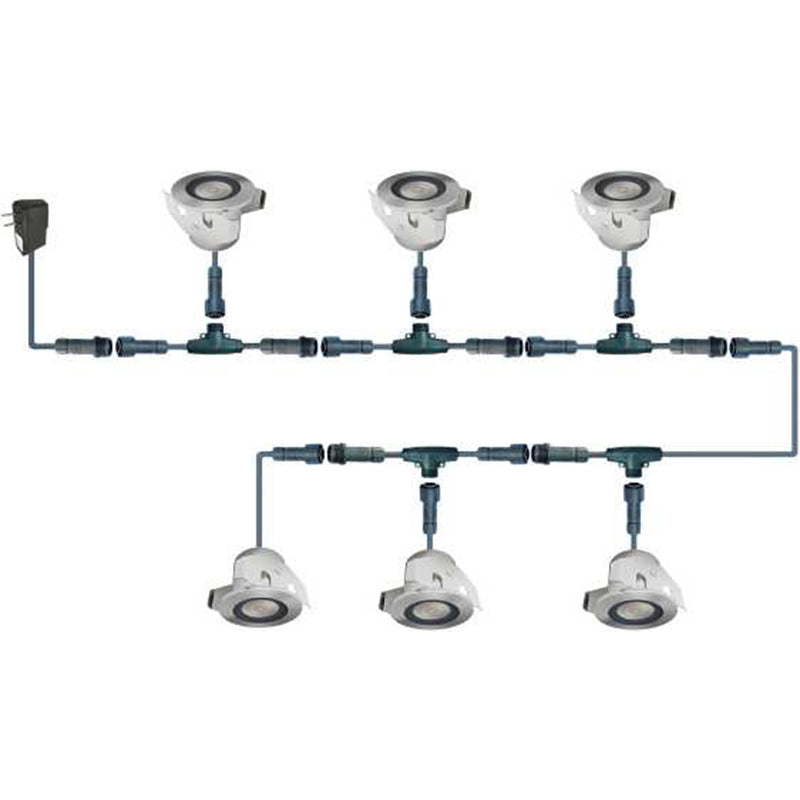

| GL116D-LS | CREE | CW,WW, NW, Red Green,Blue,Amber | S12/F45 | Constant voltage | 24VDC | Parallel | 2X0.75mm2 Plug |
6×1,3W | 600LM | D60XH45 | D50 |
| GL140D-LS | CREE | CW,WW, NW, Red Green,Blue,Amber | S20/F60 | Constant voltage | 24VDC | Parallel | 2X0.75mm2 Plug |
6×3.5W | 1800LM | D76XH47 | D65 |
| GL166D-LS | CREE | CW,WW, NW,Red Green,Blue,Amber | S10/F40 | Constant voltage | 24VDC | Parallel | 2X0.75mm2 Plug | 6×6.5W | 3600LM | D96XH47 | D85 |
| GL168D-LS | CREE | CW,WW, NW, Red Green,Blue,Amber | S10/F40 | Constant voltage | 24VDC | Parallel | 2X0.75mm2 Plug | 6x9W | 4800LM | D96XH47 | D85 |
■ Project map
