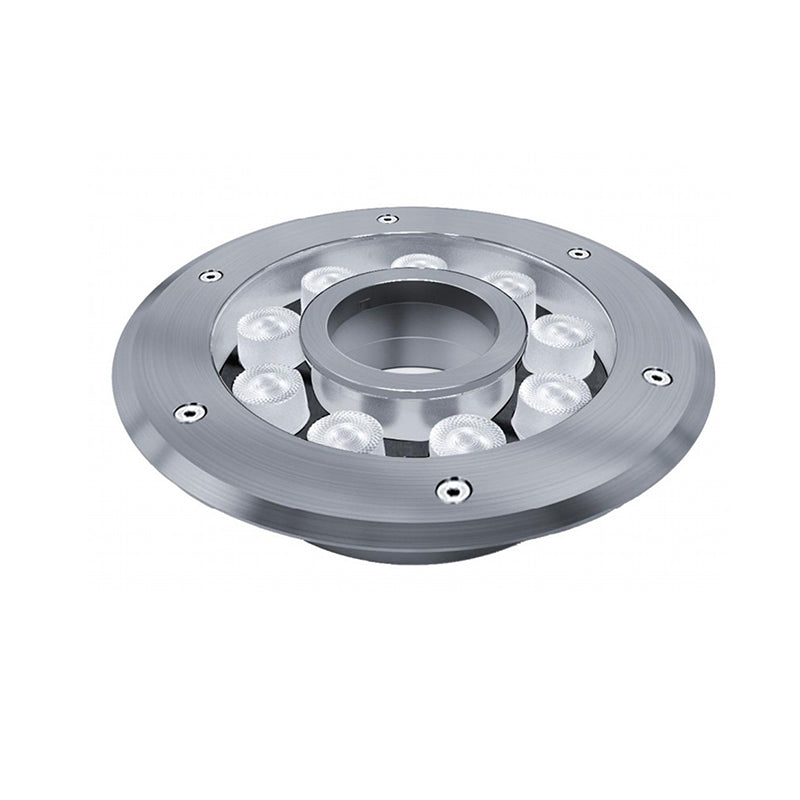

Fountain light FL410
Fountain light FL410
Outdoor Recessed fountain fixture complete with integral CREE LED Package and 15/20/30/45/60 degree beam options. Tempered glass, which can highly prevent collision. It’s highly submersible lighting. Marine grade 316 stainless steel construction rated to IP68 allowing submersion in water and completely prevent the intrusion of foreign objects and dust. The stainless steel material can maintain the good appearance of the lamp for a life of 50,000 hours. It gives you the choice of Light colors: RGB, CW, WW, NW, Red, Green, Blue, Amber. No mechanical joints to light source ensures robust protection against water ingress.
Product runs cool meeting all touch temperature requirements. It can be used as swimming pool lighting, led waterproof lighting, underwater fountain light. The power can be customized from 9W to 27W and the fountain lights can be controlled by DMX.
.
| LED Light source | High Power LED |
| Light Color | RGB,CW,WW,NW,Red,Green,Blue,Amber |
| Material | SUS316 + 6mm Toughened glass |
| Optics | 15° / S2O° / 30° / 45° / F60° |
| Power | 9W / 9*2W / 9*3W |
| Power supply | 12VDC or 24VDC |
| Dimention | D173XH41 |
| Weight | 1420g |
| IP Rating | IP68 |
| Approvals | CE,RoHS,IP |
| Ambient temperature | -20°C ~ +45°C |
| Average life | 50,000Hrs |
| Accessories(Optional) | N/A |
| Applications | surface mounted；Fountains, artificial lakes, natural lakes, swimming halls, aquariums and other underwater lighting or decoration may apply |
FL410 FOUNTAIN LIGHT
| MODEL NO. | LED Brand | Color | BEAM | Input | Wiring | Cable | Power | Luminous Flux | Dimention | Aperture | DrillSize |
| FL410D | CREE | CW,WW, NW,Red Green,Blue,Amber | 15/S20/30/45/F60 | 12VDC or 24VDC | Parallel | 3M 2X0.75mm²Cable or1.1M Plug | 9W | 800LM | D173XH41 | D50 | D160 |
| FL410DMX | CREE | CW,WW, NW,Red Green,Blue.Amber | 15/S20/30/45/F60 | 12VDC or 24VDC DMX Controller | Parallel | 2×1.1M 5X0.5mm² Cable or1.1M Plug | 10W | 800LM | D173XH41 | D50 | D160 |
| FL410DMX-RGB | CREE | 3R+3G+3B | 15/S20/30/45/F60 | 12VDC or 24VDC DMX Controller | Parallel | 2×1.1M 5X0.5mm²Cable or1.1M Plug | 10W | N/A | D173XH41 | D50 | D160 |
| FL410DMX-RGB | Edison | RGB(Fullcolor) | 15/S20/30/45/F60 | 12VDC or 24VDC DMX Controller | Parallel | 2×1.1M 5X0.5mm²Cable or1.1M Plug | 10W | N/A | D173XH41 | D50 | D160 |
| FL410DMX-RGBW | Edison | RGBW(Fullcolor) | 15/S20/30/45/F60 | 12VDC or24VDCD MX Controller | Parallel | 2×1.1M 5X0.5mm²Cable or1.1M Plug | 12W | N/A | D173XH41 | D50 | D160 |
| DMX decoder in built | *IES Data support. * Power could be customized |
||||||||||
