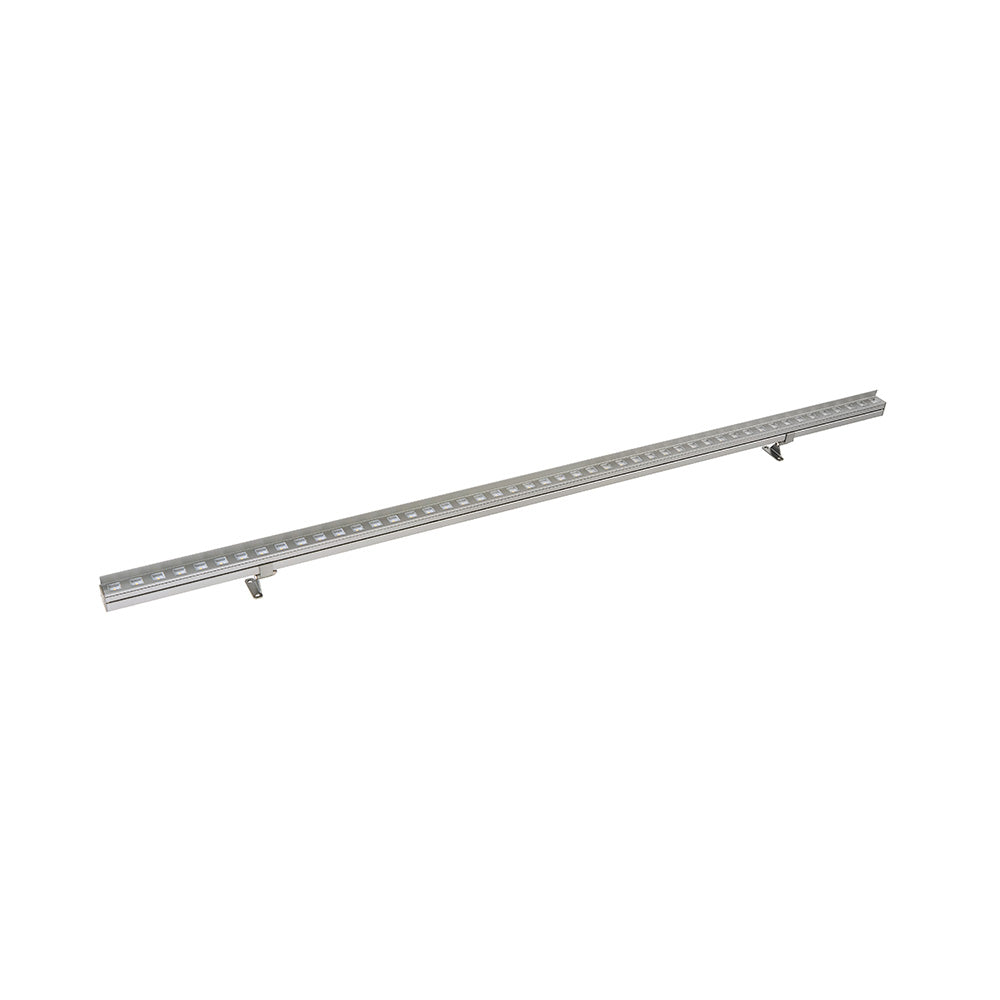

BT9234AD

Product Description
1. Main material: 6063 aluminum alloy lamp body, aluminum sheet metal end cap.
2. Surface treatment: Anodized or electrostatic spray, customizable color.
3. Optical components: Secondary optical lens light distribution, hollow profile cover protection.
4. Sealing structure: Glue pouring waterproof, protection grade IP66.
5. Control mode: ON-OFF.
6. Installation method: 6063 profile bracket is mounted in a plane with a rotatable structure design.
7. Connection method: Industrial coupler hand-joined or rubber wire extended connection.
8. Other: Customizable length, shading board for optional.
Specification
1.Rated Power:12W
2.LED Quantity: 48pcs
3.Color Temperature:3000K / 4000K / 5700K
4.Input Voltage:DC 24V
5.Control Mode:ON-OFF
6.50% Beam Angle:100˚
7.Life:>30000H
8.Protection Grade:IP 66
9.Temperature of Working Condition:-25˚C~50˚C
