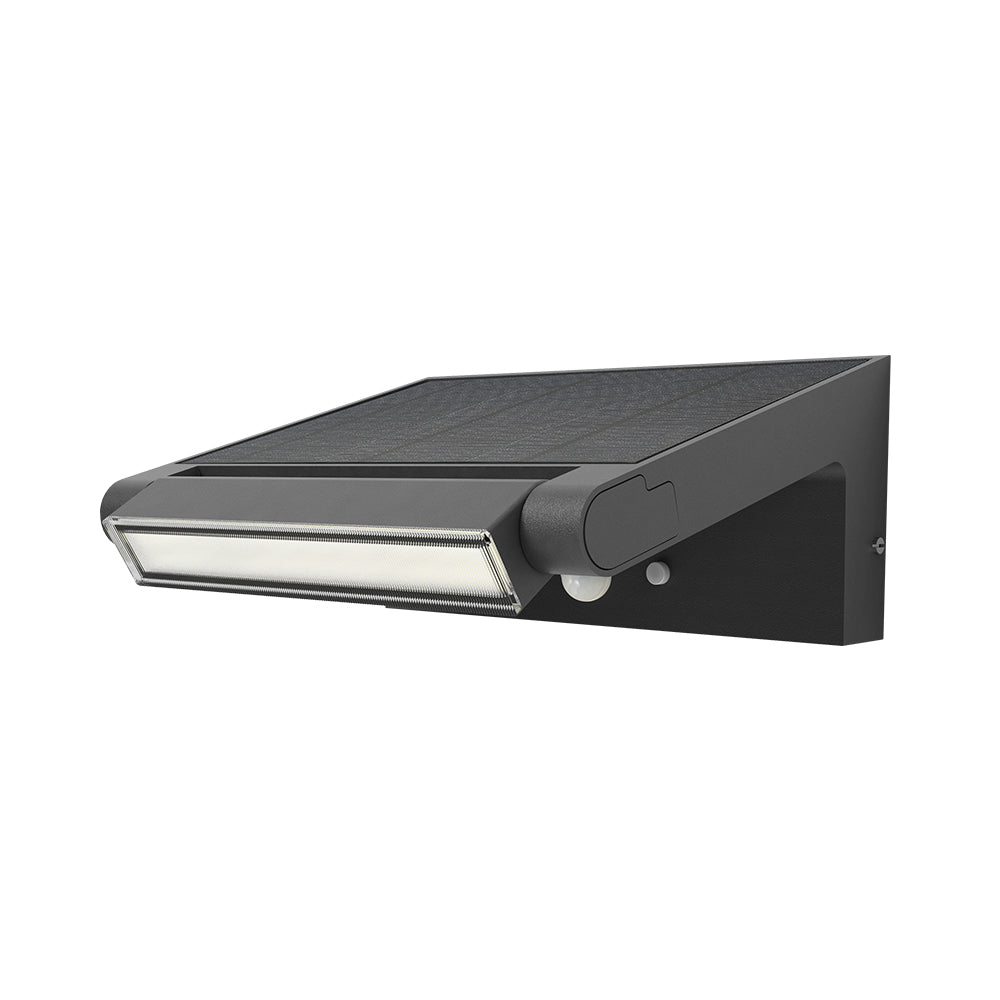

BT1174S UP
BT1174S UP
1.Material: Aluminium die-casting light body,PC diffuser.
2.LED sourcing: 14*0.5W SMD 2835LED,Nominal CCT : 6500K
3.Solar panel: Polycrystal glass solar pane(5.5V 290mA)
4.Battery: Li-ion 18650 1 x 3.7V 2000mA
5. PIR motion sensor: Detection Distance: 6-8 meter,
Detection Angle: 120°,
Sensitivity: ≤100LUX
6.Working model:ON / PIR / OFF
ON: 20LM, charge 6hrs work 8hrs
PIR: 220LM, charge 6hrs work 30 seconds 70 times
7. Dimension: 162*1318*71.7mm
IP44
2.LED sourcing: 14*0.5W SMD 2835LED,Nominal CCT : 6500K
3.Solar panel: Polycrystal glass solar pane(5.5V 290mA)
4.Battery: Li-ion 18650 1 x 3.7V 2000mA
5. PIR motion sensor: Detection Distance: 6-8 meter,
Detection Angle: 120°,
Sensitivity: ≤100LUX
6.Working model:ON / PIR / OFF
ON: 20LM, charge 6hrs work 8hrs
PIR: 220LM, charge 6hrs work 30 seconds 70 times
7. Dimension: 162*1318*71.7mm
IP44
