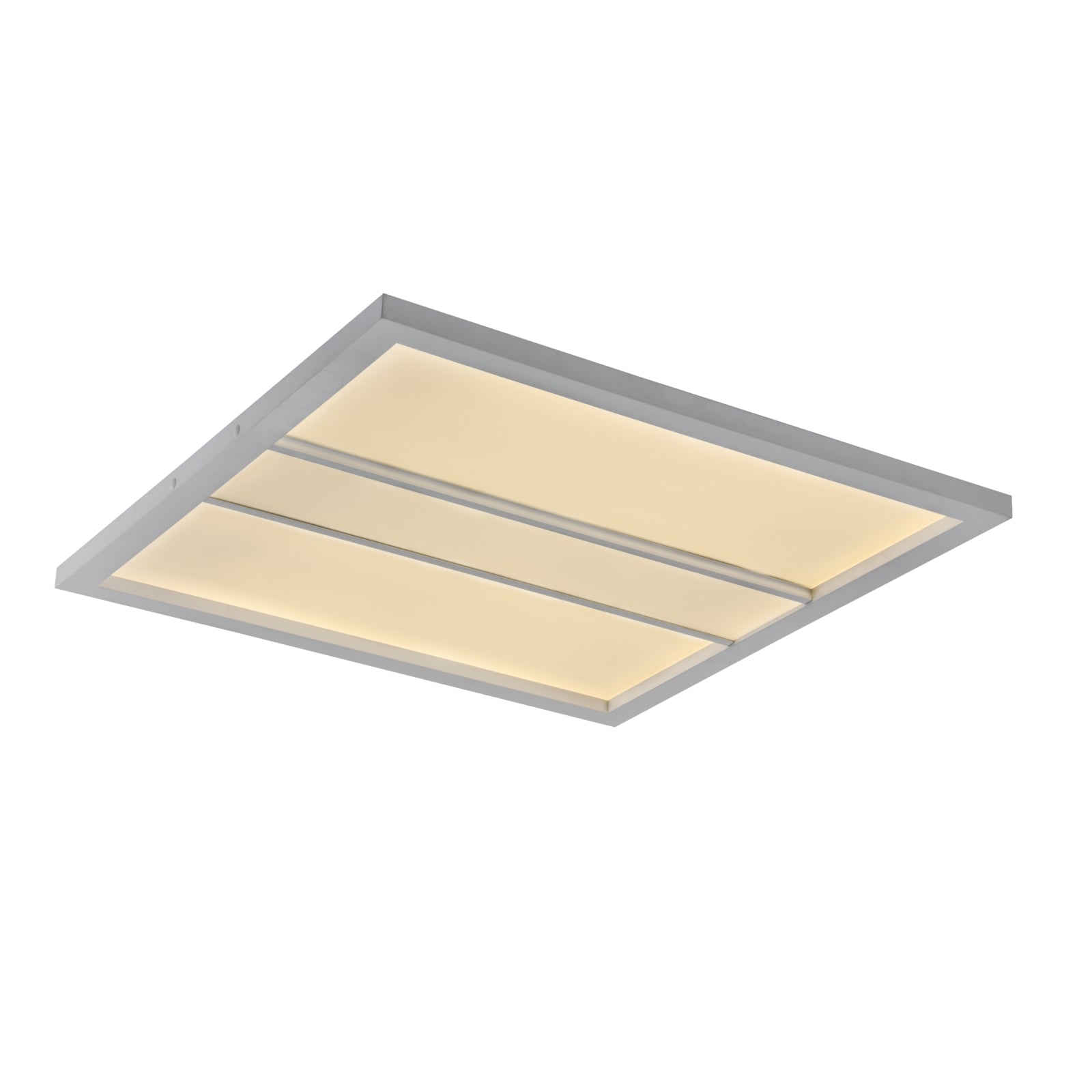

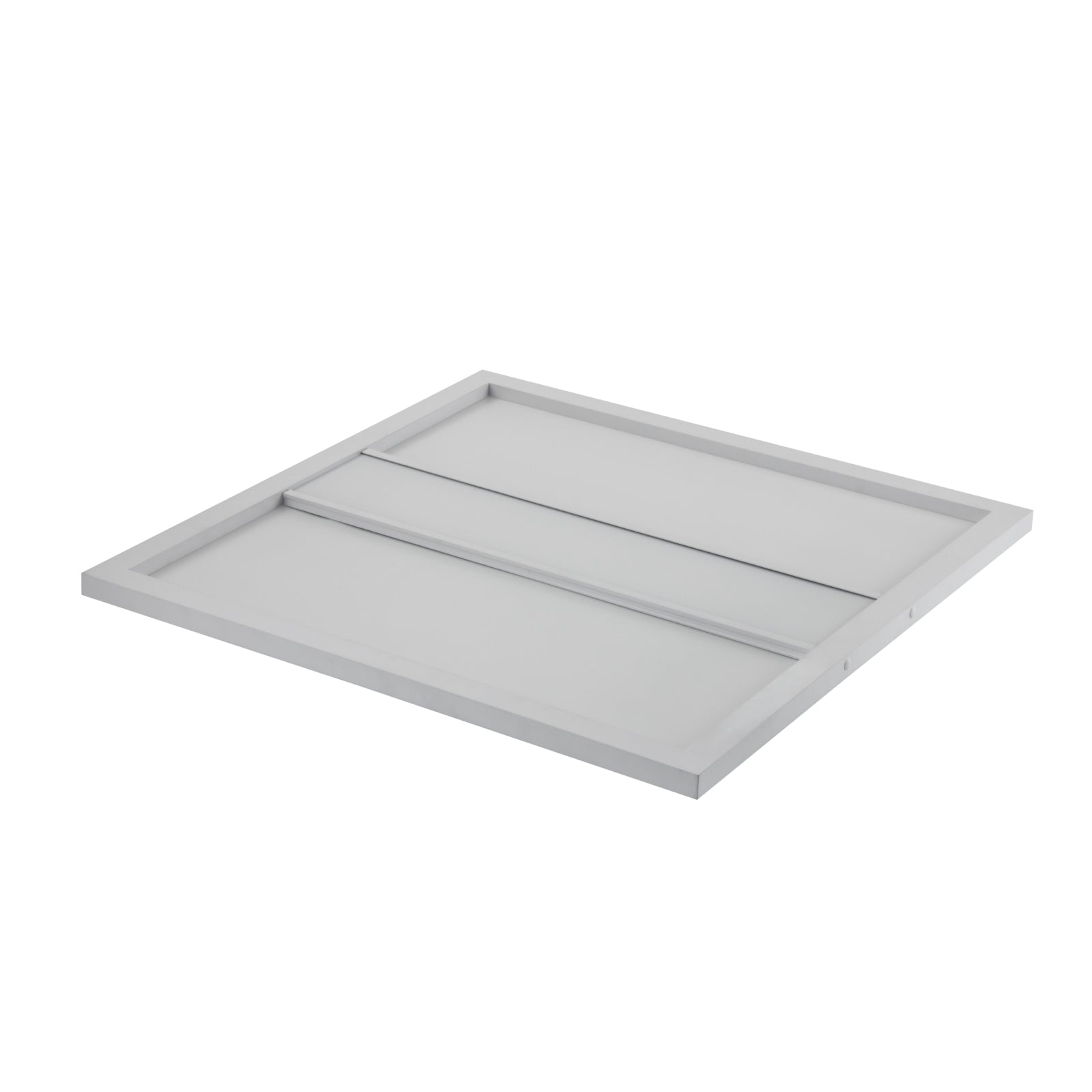

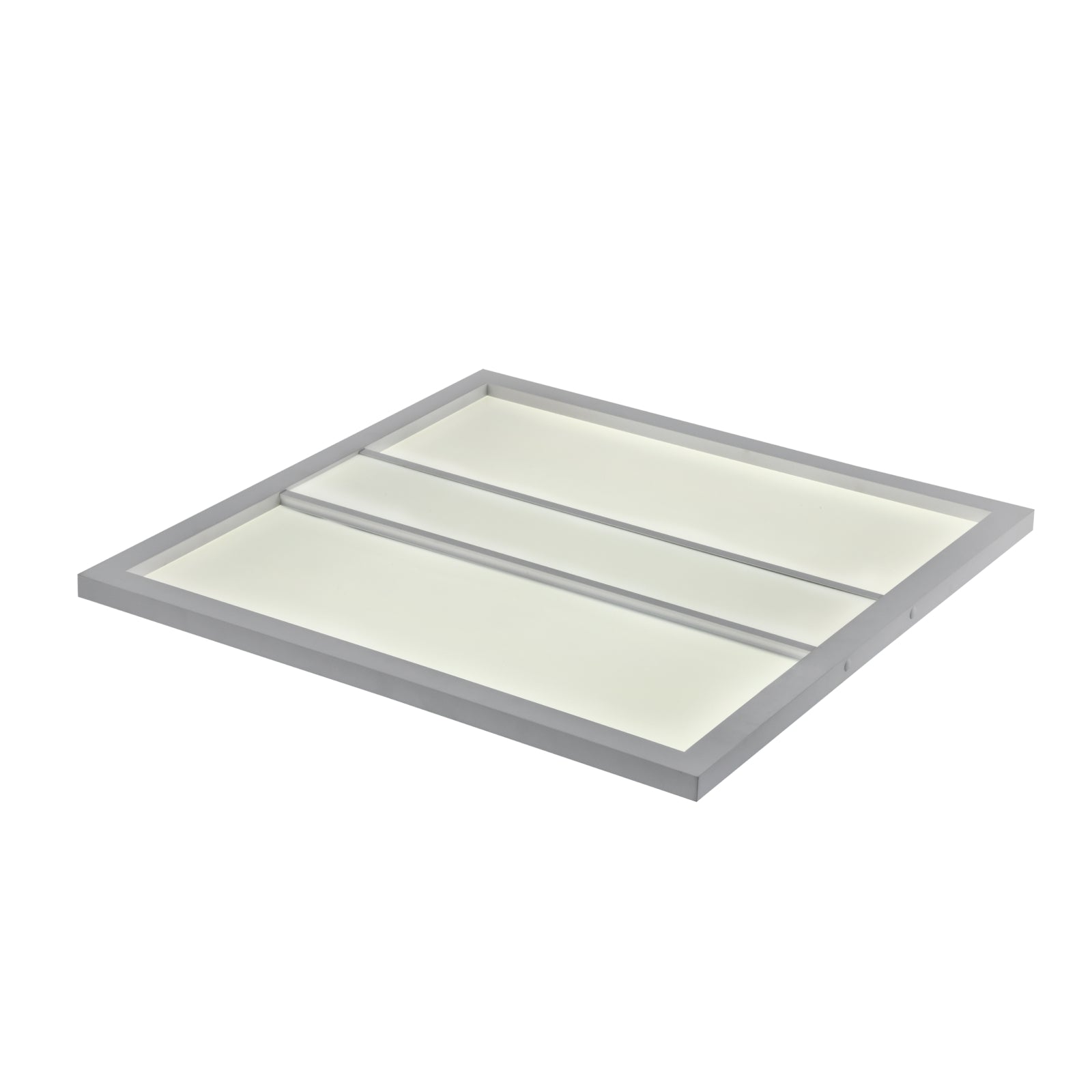

Architectural LED Troffer Panel

Specification

	E2102-22	E2102-24
Size	603x603x50mm	1213x603x50mm
Nominal Wattage	24W/35W/40W	30W/35W/40W/50W
InputVoltage	AC 120-277V, 120-347V	AC 120-277V, 120-347V
Lumen Delivered	4600 lm	5750 lm
Nominal Efficacy	115 lm/w	115 lm/w
CCT	3000K/3500K/4000K/5000K	3000K/3500K/4000K/5000K
CRI	>80	>80
Power Factor	>0.9	>0.9
Dimming	0-10V	0-10V
Operating Temperature	-4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )	-4˚F to 122˚F (-20˚ C to 50˚C ), except EM models. For EM model: 50˚F to 104˚F (10˚C to 40˚C )
Warranty	5 Years	5 Years
