LED Panel Light Selection for Singapore Offices: Size, Wattage, Glare and Controls

8 min read - DWPro Blog - Singapore

LED panel lights are a common choice for offices with modular ceilings because they can provide a broad, ordered ambient layer. Their apparent simplicity can hide important design decisions. Two panels with a similar size or wattage can have different optics, input power, colour tolerance, drivers, dimming options and emergency provisions. The correct selection begins with the space, not an online comparison of headline numbers.

1. Survey the ceiling, workplane and layout

Confirm the ceiling grid, mounting recess, plenum depth, access route, HVAC and sprinkler coordination, desk orientation, partition height, wall reflectance and daylight. Define where light is needed: open workstations, paper-heavy tasks, meeting rooms, reception and circulation should not be treated as one generic zone. A lighting calculation must use the actual room and mounting geometry, including an appropriate maintenance factor.

2. Size and wattage are not a specification

Size describes physical fit; wattage describes electrical input. Neither replaces photometry. Luminaire lumens state light leaving the fitting under declared conditions, while maintained illuminance describes light reaching the task surface over time. The final result also depends on room proportions, surface reflectance, spacing, optics and depreciation assumptions. Ask for the photometric file or report and a calculation for the proposed configuration.

Compare quoted options on the same basis: quantity, input power, driver losses where applicable, operating hours, controls, maintenance factor and expected visual result. A lower-watt fitting may need more units; a high-output panel may cause excessive brightness or glare if spacing and shielding are not suitable.

3. Review glare and screen comfort early

For screen-based work, bright panels, windows and glossy tables can create reflected glare even where the average lux level appears acceptable. Inspect the luminaire’s luminous area, diffuser, shielding and placement relative to monitor rows. Arrange screens and light rows with the actual viewing direction in mind, and check the perimeter separately where daylight changes the visual balance.

Run a representative mock-up if the layout is dense, the ceiling is low, finishes are reflective or users will spend long periods at displays. OSHA guidance recommends well-distributed diffuse light and avoiding reflections from windows and overhead sources on display screens. A mock-up also allows the team to test dimming, sensor response and colour appearance before the full release.

4. Match the driver and controls to the operating plan

Specify the driver and control protocol together with the panel. A sensor-ready or dimmable product is not a complete control scheme. Drawings should identify zoning, detector locations, hold times, scenes, daylight response, manual override, emergency-lighting interface and what happens after power recovery or a control failure. Coordinate the controls with tenancy hours and after-hours access rather than making every panel follow one schedule.

5. Check colour, flicker and emergency interfaces

Colour temperature and colour rendering affect how a workplace feels and how materials, printed documents and skin tones are seen. They are separate from light level. Keep the intended colour appearance consistent across adjacent areas unless the design brief calls for a deliberate change, and ask for product documentation for the exact panel and driver combination. Where a fit-out has finishes, graphics or client-facing areas that are colour-sensitive, inspect a representative sample rather than relying only on a catalogue image.

Also confirm driver quality and compatibility with the intended dimming method. A panel that appears suitable when switched at full output may behave differently during dimming, after a control reset or when paired with a sensor. Record the required normal, dimmed, manual-override and post-outage states. If emergency operation is part of the project, define it separately from the normal ambient-lighting design: identify the emergency product configuration, circuiting, test responsibilities and evidence required by the appointed qualified professional.

6. Plan maintenance and handover

Panels often sit above desks and meeting tables, so replacement access matters. Confirm how the driver, sensor and fitting will be reached; whether the ceiling grid can be safely opened; what spares will be held; and how a control replacement will be addressed or commissioned. At handover, retain the as-built layout, product schedule, circuit and control records, final sensor settings and supplier contacts.

BCA’s Green Mark 2021 framework includes current technical guides for relevant project pathways. Consult the live documents and the appointed qualified professional for the project’s applicable requirements; a panel’s nominal efficacy or a sensor option alone does not establish compliance.

Panel-light starting points

These catalogue examples are starting points for a project discussion. Confirm photometry, control configuration, emergency scope and mounting suitability for the final design.

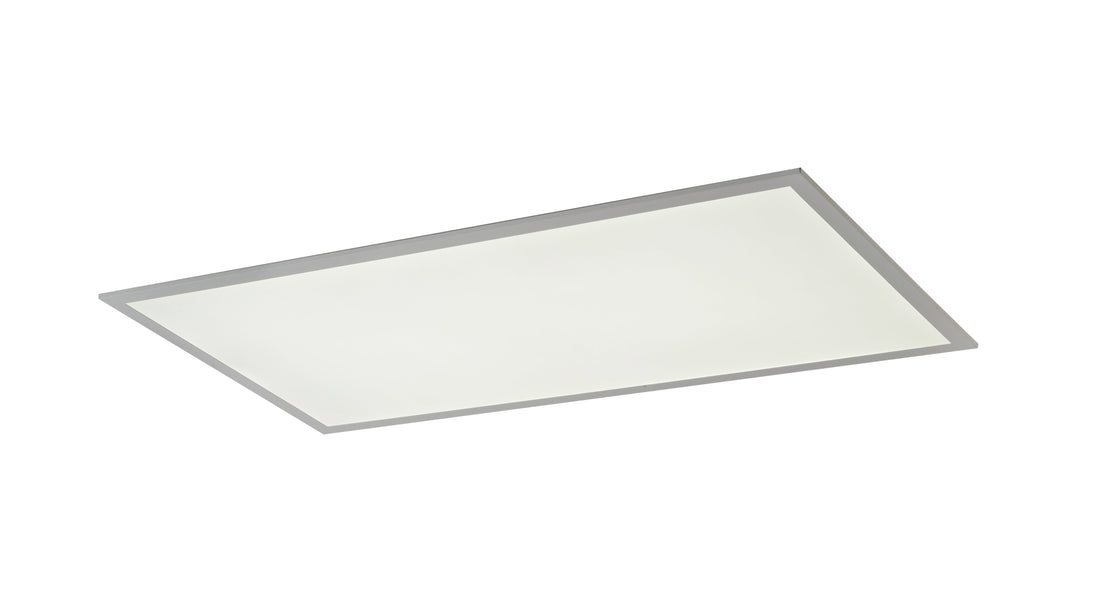

LED Flat Panel Light Backlit

LED Backlit Panel P31 - Sensor

LED Back-lit Panel P33 - App Control

LED panel light checklist

• Confirm ceiling fit, mounting, access and coordination with services.
• Review the calculation for maintained illuminance, uniformity, distribution and glare.
• Request the actual driver and control configuration, not a generic product-family statement.
• Check colour appearance and consistency in a representative setting.
• Document controls, commissioning tests, emergency scope and handover information.

FAQs

How do I choose a panel light for an office?

Start with the workplane, room geometry, ceiling, screens, operating hours and control plan. Then compare verified photometry, input power, optics, driver, colour data, maintenance and price on a like-for-like basis.

Are light panels suitable for screen work?

They can be, provided their distribution, brightness, placement, desk orientation and daylight conditions are evaluated for the real viewing positions.

Should panels include sensors?

Sensors can be useful when their coverage, hold time, zoning, override and commissioning are designed for the space. Select the control strategy before choosing the hardware.

References accessed 14 July 2026: BCA Green Mark 2021; OSHA workstation lighting guidance. Verify project requirements with the appointed qualified professional.
