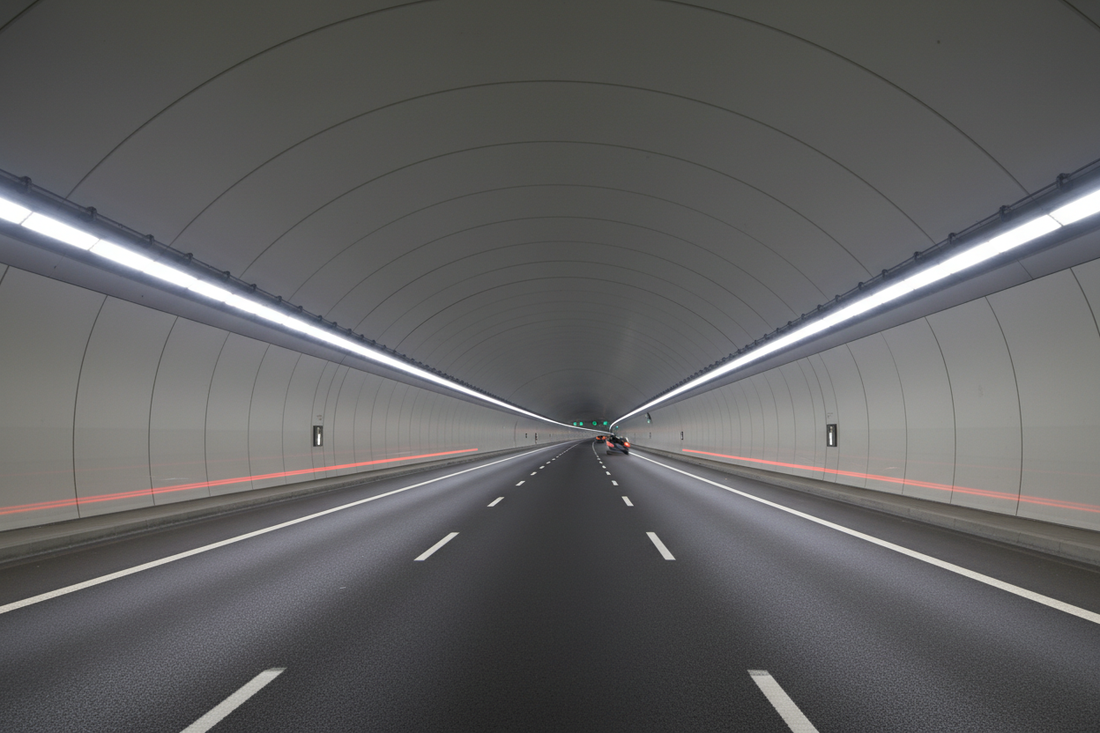

Tunnel Lighting Design in Singapore: Zones, Adaptation, Glare and Emergency Systems

7 min read · DWPro Blog · Singapore

A tunnel is not a uniformly dark room. During the day, a driver approaches from a bright exterior and needs to detect objects beyond the portal while the visual system adapts. At night, the relationship reverses. Portal orientation, sky conditions, approach geometry, speed, wall reflectance, traffic direction and stopping requirements affect the design basis.

Build the design around zones and modes

Write a mode schedule for bright day, dull day, dusk, night, maintenance, incident and emergency operation. State which sensors or external signals select the mode, how transitions are timed, and what state is maintained after a controller or communications failure.

Use luminance and visibility deliberately

Road-tunnel design typically considers what the driver sees, including the luminance of the road and surrounding surfaces, rather than relying only on horizontal lux. Surface materials and cleanliness therefore matter. A calculation based on initial reflectance can drift if walls darken or cleaning intervals change.

Review uniformity, glare, flicker and the spacing rhythm experienced at vehicle speed. Repeated bright and dark bands can be distracting even when an average value appears acceptable. Use the exact luminaire distribution, spacing, mounting and dimming state for every zone.

Controls are safety-related operating equipment

The control narrative should identify sensors, controllers, local panels, remote interfaces, dimming steps, feedback, alarms and manual authority. Define how the operator recognises a failed sensor or stuck lighting stage. Separate a loss of monitoring from a loss of light, and specify the safe fallback for each.

Commission transitions rather than testing each circuit in isolation. Confirm that a change in exterior condition produces the intended zone response without visible instability. Record thresholds, delays and overrides in the operating manual.

Keep normal, emergency and evacuation functions distinct

Normal tunnel lighting, emergency lighting, exit guidance and cross-passage lighting serve different purposes and may have different power and control requirements. Do not describe a normal luminaire as an emergency system unless the complete emergency configuration and documentation are verified.

Coordinate the lighting modes with fire-life-safety strategy, ventilation, traffic control, signs, CCTV and operator procedures. The appointed project professionals and authority criteria govern the exact requirements.

Design maintenance before fixing the layout

Maintenance can require lane or tunnel closures, traffic management, isolation and specialised access. Locate drivers, junctions and control equipment where they can be inspected without creating unnecessary closures. Consider dirt accumulation, washdown, vibration, heat and the effect of replacing one product with a different optic.

Use asset identifiers that connect the luminaire to its zone, circuit, control address and exact replacement code. A generic family description is not enough for a staged tunnel system.

Use current LTA criteria, including non-public requirements

LTA’s transport-infrastructure portal states that its criteria cover roads, tunnels, stations and related infrastructure. It also notes that some Infrastructure Design Criteria chapters and annexes are issued only to contracted parties. That is an important procurement point: the design team must work from the controlled project documents, not assume that a public PDF or previous contract is current.

Record the document revision used for design and require bidders to identify any conflict between the tender, product data and authority requirements. Resolve conflicts before equipment is ordered.

Commissioning sequence

1. Verify installation, aiming, labels, circuits and control addresses.
2. Test every normal operating mode and transition.
3. Simulate sensor, communications and controller faults.
4. Test manual control and operator indications.
5. Verify emergency and evacuation interfaces under the approved procedure.
6. Capture as-left settings, alarm logic and replacement data.

FAQs

Why does tunnel lighting use zones?

Zones manage the driver’s adaptation between exterior and tunnel conditions while maintaining visibility through the tunnel.

Can one dimming schedule cover every day?

Not necessarily. The approved design may require different exterior-condition modes, fault fallbacks and operator overrides.

Is emergency lighting the same as the night stage?

No. Emergency and evacuation functions must be defined and verified separately from normal night operation.

What is the main handover risk?

Losing the link between each installed unit, its optic, zone, control address, settings and approved replacement configuration.

Singapore source context

Start with the LTA Transport Infrastructure Specifications and Design Criteria portal and the controlled criteria issued for the project. Accessed 14 July 2026.

Evaluate lifecycle cost and operational risk

Separate the purchase price from the cost of owning the installation. The useful comparison includes connected load, realistic operating hours, control savings, cleaning frequency, access equipment, traffic or area closures, replacement labour, spare-driver policy and the consequence of a failed unit. A luminaire that is inexpensive to buy can be the costliest option when every intervention needs a lane closure, boom lift, confined work window or specialist permit.

For a transparent energy baseline, calculate annual consumption as quantity × input watts × operating hours ÷ 1,000. Keep occupancy, dimming and daylight savings outside the baseline until the control sequence and usage assumptions are documented. Then test more than one operating scenario. This avoids turning an optimistic percentage into a procurement promise and makes the business case easier to audit after occupation.

Design the information architecture

Give every maintained asset or repeatable asset type an identifier that connects the drawing location, distribution circuit, control address, exact product code, optic, mounting accessory, driver setting and commissioning value. Store the final photometric file and calculation with that identity. If a future replacement cannot be traced to the approved optical and electrical configuration, the maintained scheme will gradually become a different design.

Define document ownership before handover. The designer closes calculation assumptions and intended performance; the contractor records the installed position, aiming and cable route; the controls specialist captures addresses, scenes and time schedules; the operator owns subsequent setting changes and fault history. This chain is especially valuable where several parties maintain civil, landscape, electrical and control assets.

Use a representative trial

Select a trial area that contains the difficult geometry, not the easiest open space. Include the longest view, closest sensitive boundary, most obstructed mounting point, harshest exposure and a realistic maintenance approach. Review the installation from the user, driver, neighbour, security-camera and maintenance viewpoints as applicable. Measurements should be taken only after position, tilt, output setting and control state have been recorded.

Turn trial observations into controlled decisions. Record the exact luminaire and optic, mounting arrangement, aiming coordinates, driver setting, control behaviour, weather and surface condition. Photograph critical views and log what changed between iterations. Approval should apply to this configuration and defined repeat locations—not become a blanket approval for a product family.

Plan for foreseeable change

Infrastructure and outdoor environments evolve. Trees grow, road layouts change, walls become darker, tenants alter operating hours and cameras move. At design review, identify which assumptions are sensitive to those changes and which adjustments remain safe. Preserve deliberate spare capacity in panels, control networks and documentation, but do not create uncontrolled optical headroom that invites over-lighting.

Schedule a post-occupation review after representative operations have settled. Compare complaints, faults, measured use and energy data with the design assumptions. Where settings are adjusted, retain the original value, reason, approver and date so that a later maintenance team can understand whether a change solved a real problem or merely hid one.

Turn the design into a procurement package

• Coordinated plan, sections, mounting details and service constraints
• Exact operating scenarios and control narrative
• Photometric files and calculations for the offered configuration
• Environmental, electrical and structural evidence required by the project
• Deviations schedule for every proposed substitution
• Inspection, testing, commissioning and handover method
• Safe access, isolation, cleaning and replacement strategy

Do not accept “equal wattage” or a family brochure as evidence of equivalence. A change in optics, mounting, driver, control interface or dimensions can invalidate the calculation and coordination. Require the bidder to identify the exact code used in every submitted file.

Commission for real operating conditions

Test the installed scheme under the scenarios that matter: dry and wet weather where relevant, daytime and night conditions, normal and reduced operation, local override and loss of communication. Record final settings and unresolved items. Commissioning is complete only when the operator can understand, maintain and safely change the system.

Schedule a review after the installation has operated long enough to reveal nuisance switching, access problems, glare or unexpected dark areas. Update drawings and settings when the physical environment changes. The lighting record should remain a live asset-management document rather than a one-time handover file.
