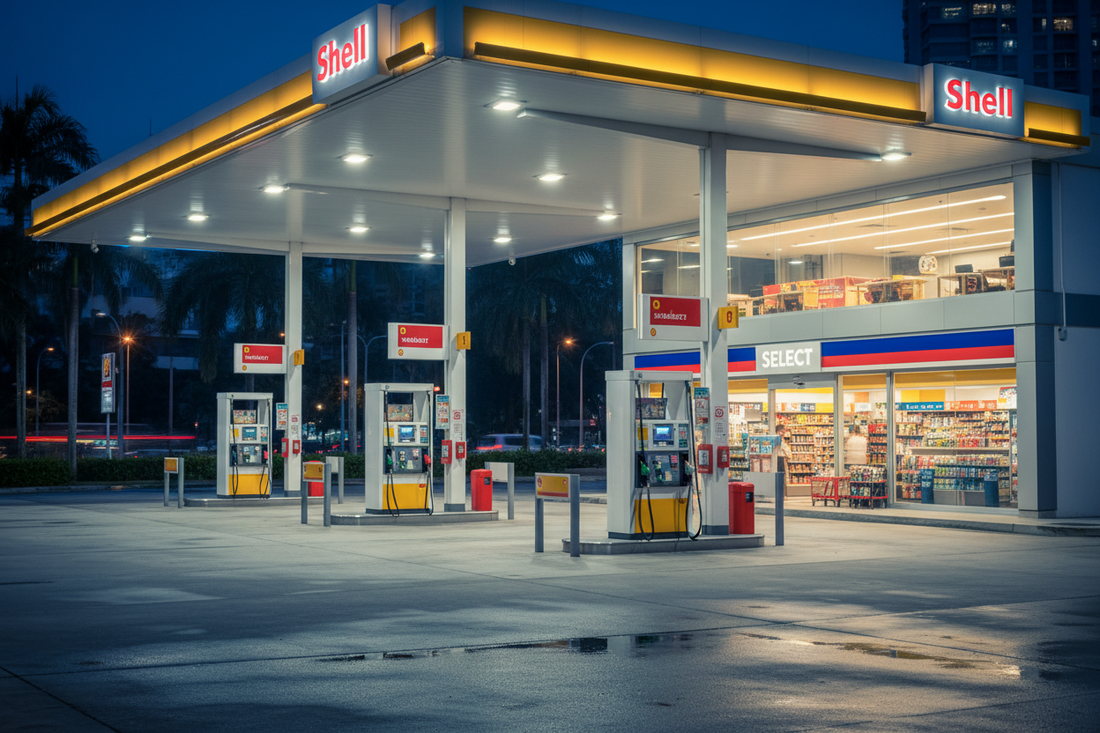

Petroleum Station Lighting in Singapore: Canopies, Retail, Car Wash and Hazardous Areas

7 min read · DWPro Blog · Singapore

SCDF Fire Code 2023 Clause 9.6 requires electrical equipment at petrol service stations to be suitable for its location in accordance with NFPA 70 or SS 254. EMA states that electrical installations used in hazardous trades require an electrical installation licence regardless of load. Those are strong reasons to avoid catalogue shortcuts: “weatherproof”, “industrial” or even an explosion-protection label is not enough without matching the classified location and complete installed configuration.

Start with a controlled zone drawing

The hazardous-area drawing should identify the source of release, zone extent, gas or vapour basis, vertical limits, pits or low points and any effect of ventilation. It must be produced and approved within the project’s competent professional process. The lighting designer then overlays luminaires, junctions, cable entries, isolators, sensors and control equipment.

Do not infer the zone from a photograph or a previous station. Canopy geometry, dispenser arrangement, drainage, tanker unloading, vents and equipment can change the classification. If the zone drawing changes, repeat the product and installation review. Keep the revision referenced in every hazardous-area equipment schedule.

Area	Primary lighting questions
Forecourt and dispensers	Classified location, driver visibility, spill response, CCTV, impact, canopy reflections and safe maintenance
Tanker delivery	Connections, valves, route, task shadows, temporary operations and controls during delivery
Retail shop	Merchandise, counter, glazing reflections, forecourt view, screens and emergency routes
Car wash and service	Water and chemical exposure, moving equipment, cleaning, corrosion and access

Match the complete equipment code—not the family name

Hazardous-area suitability depends on the exact protection concept, equipment group, gas group, temperature class, ambient range, ingress protection, certification, conditions of use and installation accessories required by the project. Read the certificate and schedule together. A family brochure may cover several configurations; the ordered model must be traceable to the relevant evidence.

Review cable glands, stopping plugs, adapters, junction boxes, mounting brackets and fasteners as part of the system. An appropriately certified luminaire can be undermined by an incompatible entry or field modification. Record permitted orientation, torque, thread engagement and any special condition of use. Do not drill, repaint sealing surfaces or substitute hardware without the approved process.

Separate location suitability from lighting performance

Certification does not establish that the optic illuminates the task. The design still needs exact photometry, mounting height, tilt, canopy reflectance, obstructions and maintenance factors. Evaluate the forecourt for vehicle movement, customer faces, hoses, grade changes, emergency equipment and staff work positions. Check vertical and horizontal visibility rather than chasing one average value.

Dispenser islands and columns cast shadows. A regular canopy grid can leave dark faces or controls even when the ground looks bright. Use sections and representative calculations, then observe a mock-up from the driver, customer, cashier and CCTV viewpoints. Where a luminaire or mounting changes, rerun the affected check.

Control glare for drivers, neighbours and CCTV

A petrol station is often a bright object in a darker street. Excessive canopy brightness can reduce contrast beyond the site, create driver discomfort and spill into nearby properties. Choose optics that contain light under the canopy and shield signs or floodlights from direct view. Review wet-pavement reflections during rain, not only dry conditions.

Coordinate with cameras. A bright source inside the frame or reflective number plate can cause overexposure while faces remain dark. Test normal, late-night and emergency scenes using actual camera positions. Record both the lighting settings and camera exposure configuration used for acceptance.

Keep the cashier’s operational view clear

SCDF Clause 9.6 includes requirements relating to the cashier’s clear view and CCTV coverage of critical areas. Lighting should support those functions without reflecting the shop interior back into the glazing. Review the forecourt view from the occupied cashier position by day and night. Coordinate internal luminance, glass, monitors, signs and exterior sources.

Do not place a bright downlight directly above a screen or at the glazing sight line. A local task solution at the counter may be more effective than raising the whole shop level. Verify that emergency shut-off identification, dispenser numbers and incident routes remain legible from intended positions.

Coordinate emergency shut-off visibility

Clause 9.6 specifies that the emergency shut-off switch be located between 6 m and 15 m from the dispenser. The fire-safety design governs the exact arrangement. Lighting must keep the switch, access route and identification visible without relying on a decorative scene or a control network that may fail during an incident.

Define which circuit and supply support that visibility, how it is tested and what happens after a local or central control failure. Do not imply that illumination alone satisfies the fire-safety requirement; location, signage, access and operational procedure remain separate coordinated responsibilities.

Treat tanker delivery as an operating mode

Fuel delivery introduces temporary vehicles, hoses, open connections and staff tasks that differ from customer refuelling. Walk through the approved delivery procedure at night. Identify valves, gauges, couplings, ground markings and exclusion areas that must be visible. Check whether the tanker itself blocks canopy light or cameras.

Define whether an additional fixed task scene is permitted and how it is activated and restored. Avoid portable or temporary electrical equipment in a classified location unless it is explicitly suitable and controlled under the operator’s procedure. Coordinate lighting with traffic management, spill response and communication.

Specify car-wash and wet-service areas separately

A car wash may not share the same hazardous classification as the forecourt, but it introduces water jets, detergents, humidity, corrosion, moving machinery and impact. Map direct spray, standing water and cleaning access. Verify the enclosure, materials, cable entries and mounting for that environment rather than copying the canopy fitting.

Stroboscopic perception around moving brushes or machinery, source reflections on wet surfaces and maintenance isolation deserve review. Keep drivers and junctions accessible outside the harshest zone where the design permits. Document which party cleans the luminaire and which chemicals are allowed.

Controls must default to a safe operating state

Separate canopy, perimeter, signage, retail, car wash, service and after-hours zones. Write the photocell, schedule, local override, alarm and fallback sequence. Occupancy control should not create sudden darkness around active customers or delivery work. Network loss must not prevent required operation.

Review the location and suitability of sensors, control devices and interfaces relative to the classified areas. The control cabinet being outside the zone does not automatically resolve field-device suitability. Commission every mode and simulated failure with the operator and relevant professionals.

Maintenance requires hazardous-area discipline

Before maintenance, the operator should know the isolation, access restriction, gas-testing or permit requirements, competent-person responsibilities and steps for returning equipment to service. A failed canopy fitting is not an invitation to open equipment while the station operates. The site’s approved safety procedure controls the work.

After opening certified equipment, inspect seals, threads, flame paths or other protection features as applicable to the product. Use specified replacement parts and record the intervention. Track repeated moisture, heat or vibration failures; replacing drivers without finding the environmental cause can create a cycle of unsafe work.

Handover evidence

• Approved hazardous-area classification drawing and revision
• Exact equipment schedule linked to certificates and conditions of use
• Photometric calculation and mounting details for each operational area
• Glands, adapters, plugs, junctions, cable and earthing information
• Electrical installation licence and LEW documentation as applicable
• Control modes, fallback, isolation and emergency interfaces
• Inspection, test, maintenance and competent-person procedures
• Asset IDs, spares and change-control record

FAQs

Is every luminaire under a petrol-station canopy explosion protected?

Do not generalise. Use the approved hazardous-area drawing and project requirements to determine suitability for each exact location and complete installation.

Does IP66 prove hazardous-area suitability?

No. Ingress protection and explosion protection address different risks. Both may matter, but neither substitutes for the other.

Can a certified luminaire use any cable gland?

No. The complete entry arrangement must match the equipment certificate, protection concept, cable and approved installation instructions.

Who is responsible for the electrical installation?

Confirm the required EMA electrical installation licence, Licensed Electrical Worker scope and competent hazardous-area responsibilities for the project and operator.

Singapore reference context

Primary references: SCDF Fire Code 2023 Clause 9.6, SCDF’s petroleum and flammable-material licensing information, and EMA’s electrical installation licensing guidance. Use current controlled documents and professional approvals. Sources accessed 14 July 2026.

Control substitutions through a deviations schedule

Require every proposed substitution to identify changes in certificate, protection marking, ambient range, optic, input power, surge protection, mounting, cable entries, dimensions, weight and control interface. The reviewer should see the differences without reconstructing them from several brochures. No purchase should proceed until the competent electrical and hazardous-area reviewers close the deviations relevant to their scope.

After approval, preserve the exact configuration in the asset register. If a later replacement is unavailable, repeat the suitability and lighting-performance review rather than treating a newer family member as automatically equivalent.
