Singapore Pool Light Replacement: Compact IP68 GL140B Project Case Study
MASTER DWPROProject snapshot: At a landed property in the Sunset Close area of Singapore, the contractor needed a suitable IP68 swimming pool light for an existing small recessed opening. DWPro screened options from its supplier network, supplied a suitable fitting to Ulypse Builders Pte Ltd, and supported an on-time installation. The selected product was the GL140B underwater light.
Quick answer: When replacing a swimming pool light through a small existing opening, confirm the actual cut-out diameter, fixture depth, retaining method, cable and driver arrangement, and the product’s underwater rating before ordering. For this Singapore landed-property project, DWPro helped the contractor identify and supply an IP68-rated compact option, the GL140B, and the installation was completed on time.
A compact pool-light replacement in Singapore
Swimming pool lights have to suit both the environment and the opening already built into the pool wall. That can make a replacement more involved than choosing a fixture by appearance or wattage alone. If the original fitting has failed, is corroded, or is no longer available, the installer first needs to understand what space and wiring are actually present. A replacement that is too large may not sit neatly in the recess; one with the wrong body depth or mounting arrangement may not secure properly.
This project took place at a landed property in the Sunset Close area. Ulypse Builders Pte Ltd was the contractor team. The brief was specific: find a suitable IP68 pool light that could work with a small hole size. DWPro supported the search by screening products from its supplier list, identifying a suitable option, and supplying it to the contractor team for installation. The work was completed on time.

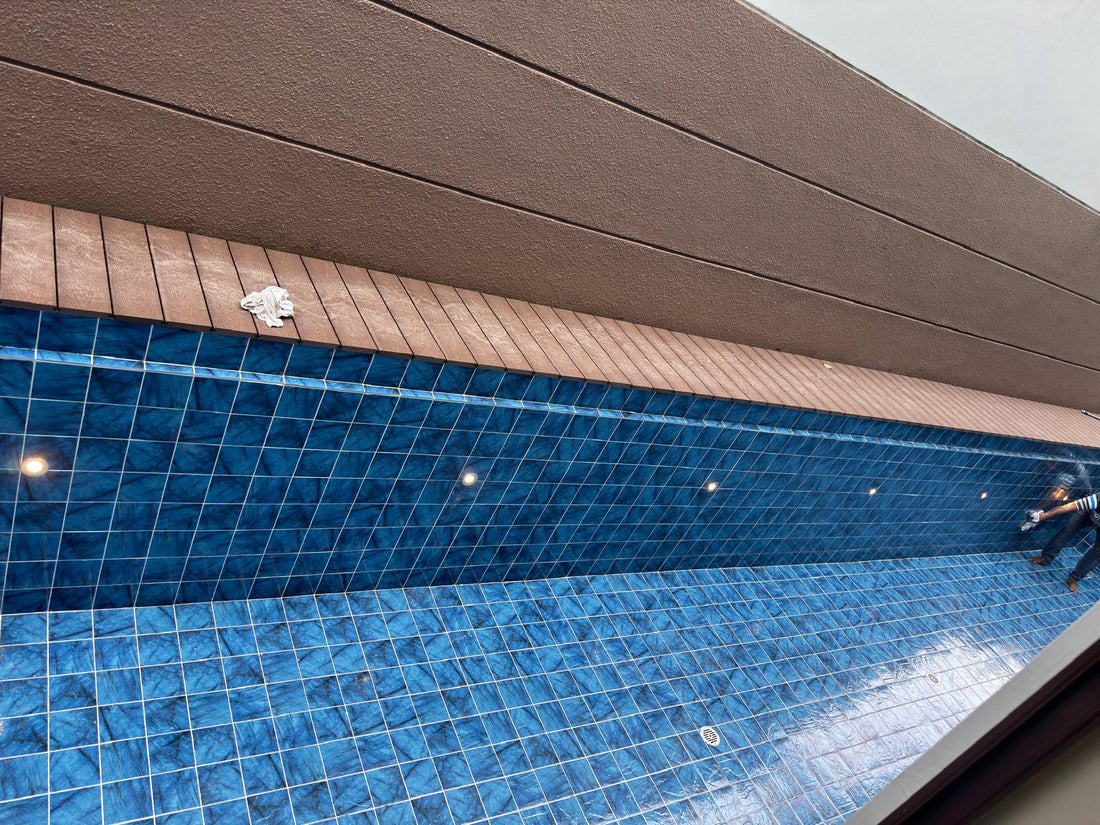

The supplied photographs show the existing pool-light condition and the finished pool after the work. The close-up images document the opening and removed fitting; the final image shows the pool illuminated after installation. They help explain why dimensions mattered in this case: the project involved an existing tiled wall and a restricted recessed opening, rather than a new installation where the mounting space could be designed around the luminaire.
The challenge: an IP68 light that fits a small opening
IP68 was part of the requirement because the light was intended for an underwater pool application. The IP Code is defined by IEC 60529 and describes degrees of protection provided by an enclosure. For this project, the team also needed a physically compatible fitting. The protection marking answers a different question from the cut-out measurement: an appropriate ingress-protection rating does not, by itself, confirm that a product will fit an existing recess or connect to the existing system.
That distinction is useful for pool owners and contractors planning a replacement in Singapore. Before choosing a product, identify the opening’s diameter and shape, the available depth behind the wall, how the fitting is retained, and how the cable exits. Existing installations can vary, and older fittings may have corrosion, damaged cable insulation, or non-standard mounting details. Photographs can help with initial screening, but the final selection should be based on a site check and the manufacturer’s current installation drawing.
In the project photographs, a tape measure is used across the opening before the replacement is chosen. This is a practical step: measure the usable opening rather than estimating from the front rim of the old fitting. Also check whether the opening is round and even, whether tile edges or grout reduce the clear diameter, and whether the cavity is deep enough for the product body and cable bend. Record the measurements in millimetres and share them with the supplier along with clear photos.
How DWPro supported the project
- Understand the constraint. The contractor needed an IP68 swimming pool light with a compact installation size for an existing opening.
- Screen supplier options. DWPro reviewed available supplier choices against the stated project need instead of relying on a generic pool-light description.
- Supply a suitable candidate. DWPro supplied the GL140B underwater light to Ulypse Builders Pte Ltd for the project.
- Complete the installation on time. The contractor carried out the installation, and the project was completed within the required schedule.
For this project, the value was in matching a product candidate to the existing site constraint and keeping supply coordinated with the contractor. DWPro did not simply point to a broad category of underwater lighting: the team screened options for the small opening requirement and supplied the selected product to the people carrying out the work.
For future replacements, share site measurements, photos, fitting details, preferred light colour, control needs, and timing together. This helps the supplier compare options and the contractor confirm compatibility before work is scheduled. Resolve uncertainties before altering the pool finish.
Why the GL140B was considered
The project used DWPro’s GL140B underwater light as the selected product. The product page identifies it as an underwater light and includes an IP68 protection note. Its product information also provides size and configuration details that should be checked against the site conditions and the latest manufacturer documentation before purchase.
The supplied product drawing shows a nominal 58 mm installation opening and a 76 mm front diameter. These dimensions help explain why a compact recessed product could be considered for a smaller opening. They are reference dimensions, not a substitute for measuring the actual pool wall or confirming the full installation method. In this case, the supplier screening and contractor’s site work led to a completed installation on schedule; no unprovided electrical configuration or measured lighting result is implied here.
The additional product photographs supplied for this case show the GL140BD label. It identifies the unit as 5W, 3000K, with a 60-degree beam, IP68 protection, and 24V DC operation using a constant-voltage LED driver. These details describe the labelled product shown in the photographs; the contractor or responsible electrical professional should still confirm that the exact unit and supply arrangement match the site before installation.
Product details from the supplied photographs
The additional photographs show the packaging, front optic, product label, and side profile with cable. The visible label identifies the GL140BD configuration; confirm product compatibility with the project contractor before installation.
What to check before replacing an underwater pool light
A clear pre-installation check can help avoid ordering a fitting that is waterproof but physically unsuitable. For a pool-light replacement in Singapore, the property owner and contractor can prepare the following information before requesting options:
- Opening dimensions: Measure the clear cut-out in millimetres at more than one point. Note if the opening is chipped, irregular, or partly obstructed by tile or grout.
- Mounting and body space: Confirm the available recess depth, front flange size, retaining clips or other fixing method, and space for the cable. Compare the actual site with the product’s installation drawing.
- Existing equipment: Photograph the current fitting, any accessible driver or transformer label, the cable route, and the connection arrangement. Do not assume that a replacement uses the same voltage or control system.
- Water exposure and product documentation: Check the IP rating and the manufacturer’s stated application, installation instructions, and operating limits. An IP rating alone does not establish suitability for every pool installation.
- Lighting preference: Decide whether the project needs a particular colour temperature, beam spread, brightness, dimming, or colour-control function. Confirm the exact configuration is available for the selected model.
- Work sequence: Agree who will isolate, inspect, remove, install, test, and reinstate the area, and coordinate access and any pool-draining requirements with the relevant project professionals.
These checks are especially useful when the pool is finished in tile, stone, or another material that may be costly to alter. If the replacement does not match the opening, the work can become a building or waterproofing issue in addition to a lighting issue. A small amount of measurement and documentation at the start helps the supplier and contractor discuss the same constraints.
For electrical work in Singapore, the Energy Market Authority advises consumers to engage a Licensed Electrical Worker (LEW) for electrical installation, maintenance, repair, or modification work on consumer premises. The project’s electrical arrangements and applicable requirements should be assessed by the appropriately qualified professional. Product selection and supply should be coordinated with that on-site assessment.
IP68 is important, but it is only one part of the selection
IP68 is often searched for when people need underwater lighting, but the marking should be read together with the manufacturer’s instructions. IEC 60529 defines the IP Code for enclosure protection; it does not specify a universal pool-light installation method, opening size, voltage, or maintenance schedule. Product documentation explains how a particular luminaire is intended to be installed and what conditions apply to its rating.
Before purchase, ask the supplier for the current data sheet and installation drawing for the exact model and variant. Compare the stated cut-out, outer dimensions, depth, mounting system, supply requirements, and cable details with what the contractor finds on site. If the project is an existing installation, verify whether the old cable and associated equipment can be reused or require replacement. The responsible contractor or LEW should assess the electrical side; do not infer safety or regulatory compliance from the IP marking alone.
DWPro’s existing guide, Underwater and Pool Lights in Singapore: An IP68 Specification Guide, explains further considerations for specifying underwater and pool lighting. It is a useful next read when comparing IP ratings, site conditions, and product documentation.
Project result
At the Sunset Close area landed property, the original pool-light opening created a practical sizing constraint. Ulypse Builders Pte Ltd needed an IP68-rated option with a small installation size. DWPro screened supplier options, supplied the GL140B underwater light to the contractor team, and the installation was completed on time. The supplied after photograph shows the pool illuminated following the work.
This case is a reminder that a successful replacement starts with the site condition: the opening, body clearance, mounting method, cable, and electrical arrangement all matter alongside the rating. For a similar project, share measurements and photos early so that a supplier can help shortlist suitable products and the contractor can verify the final choice before installation.
Frequently asked questions
What should I measure before replacing a recessed swimming pool light?
Measure the clear opening diameter and depth in millimetres. Also check the front flange space, mounting method, cable exit, and any obstruction from tile or grout. Compare these site measurements with the current manufacturer’s installation drawing, and have the contractor confirm the fit before ordering.
Does IP68 mean a pool light will fit my existing hole?
No. IP68 describes enclosure protection under the applicable product conditions. It does not tell you the cut-out diameter, body depth, retaining method, or compatibility with existing wiring. Confirm these separately using the exact product documentation and a site inspection.
Which light was supplied for this project?
The selected product was the DWPro GL140B underwater light. The exact electrical variant used at this site was not included in the project information, so confirm the required configuration with the supplier and contractor.
Who carried out the project?
Ulypse Builders Pte Ltd was the contractor team. DWPro screened supplier options and supplied the selected pool light; the installation was completed on time.
Where can I read more about pool-light specification?
Read DWPro’s Singapore IP68 pool-light guide, then review the product’s current technical information and installation drawing. For a project enquiry, contact the DWPro team through the DWPro contact page.
